High speed t1/e1 router, Patton iplink, Model 2603

Patton’s IPLink
™
T1/E1 Gateway Router is a complete all-in-one network access device which easily connects your
LAN to any full or fractional T1/E1 over PPP or Frame Relay routed or bridged connections.
High Speed T1/E1 Router
IPLink
™
Router Products
Patton IPLink
™
Model 2603
T
he IPLink
™
Model 2603 T1/E1 Gateway
Router is the ideal solution for connect-
ing any small to medium enterprise or
remote office to an IP/Internet network using a
standard T1/E1 interface.
Combining ease-of-use with a full suite of
LAN/WAN routing features, the Model 2603
provides selectable bridging or routing func-
tionality along with advanced IP features such
as NAT/NAPT, firewall, and DHCP. A complete
set of configurable FR/PPP/IP WAN protocols
allow a wide range of choices when connect-
ing branches via common WAN services. The
Model 2603 boasts easy installation offering
console/VT-100, Telnet, and HTTP/SNMP
management options.
The Model 2603 comes with an auto-sensing
full-duplex 10/100Base-T Ethernet port,
cross-over switch, and internal power supply.
The Model 2603 is equipped with an integrat-
ed T1/E1 CSU/DSU for connection to full and
fractional T1/E1 services.
Patton’s Model 2603 high-speed router offers
the versatility and reliability demanded for
business-class applications at the most
affordable price.
Visit
www.patton.com
for more information.
Standard T1/E1 WAN Interface
RJ-48C and BNC connectors for
T1/E1 installations
PPP and Frame Relay
Versatile WAN options enable deployment into
any network
NAT/NAPT, Firewall, DHCP
Powerful routing features make shared Internet
connectivity simple and secure.
10/100 Ethernet with MDI-X
Easily connect to any computer or LAN—the
built-in communication crossover switch
eliminates messy configuration cables.
WWW/SNMP Manageable
Built-in VT-100 console port makes setup a
snap, and you can use the embedded
HTTP/SNMP agent to manage the IPLink
™
routers from anywhere in the world.

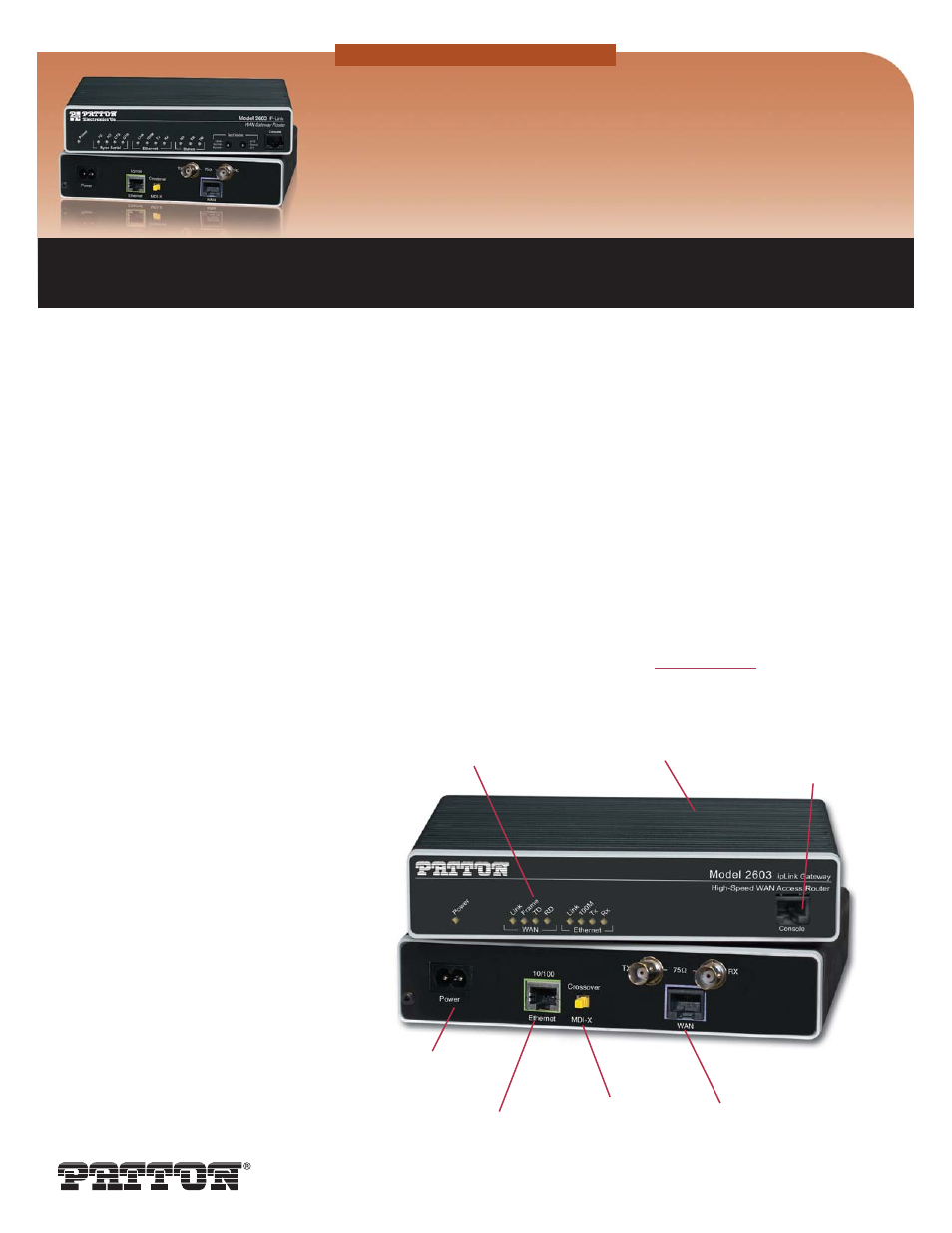

Proven Patton design
Easy CLI configuration
via Console
Internal/external
and AC/DC power
10/100Base-T
Ethernet port
MDI-X
Crossover
BNC and RJ-48C
T1/E1 WAN interface
Front panel LEDs show opera-
tional status at-a-glance
