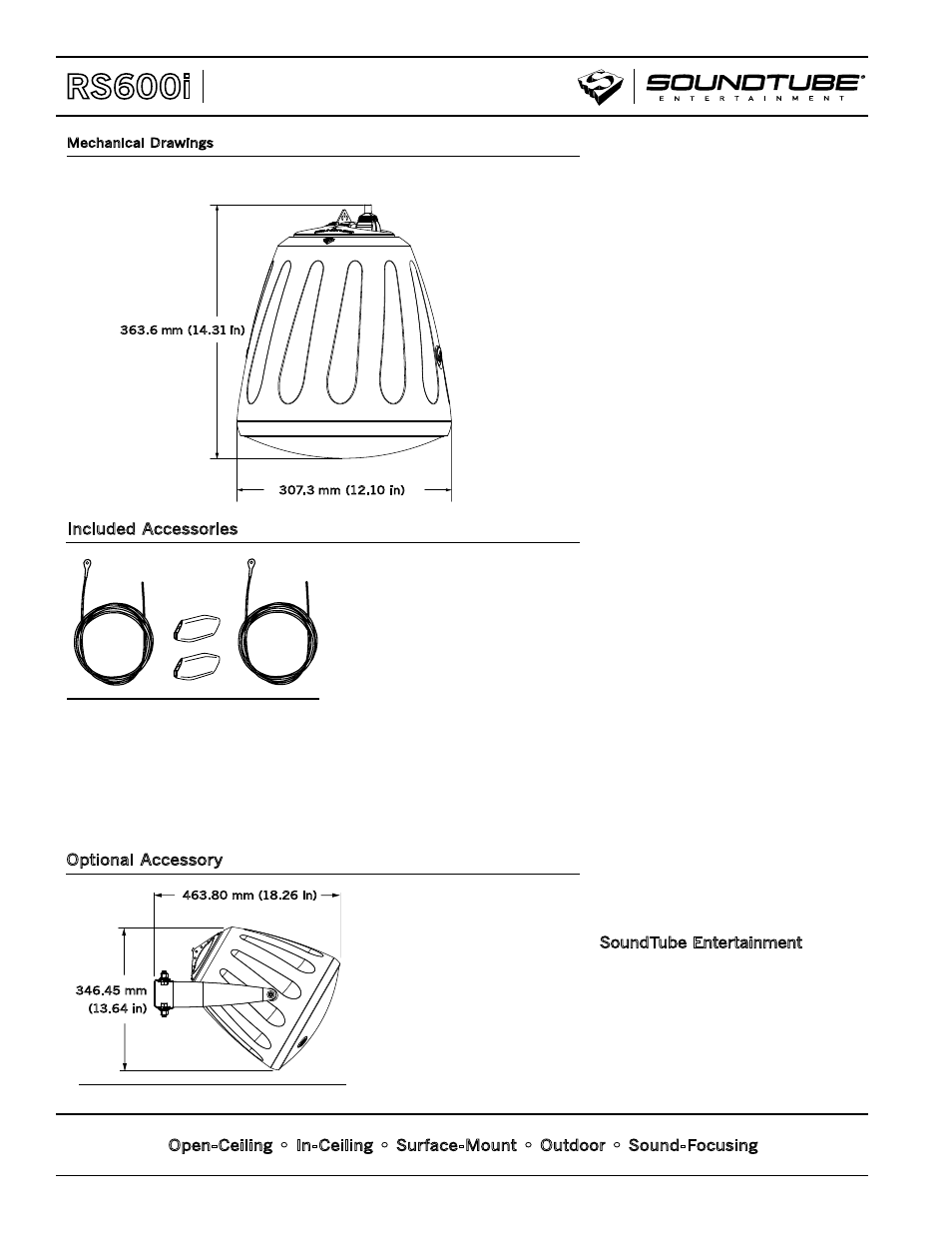

Mechanical Drawings
Included Accessories
Hanging Hardware: Main & Safety
Cables w/ SpeedClamp™
SoundTube’s hanging cable kit incorpo-
rates hanging & safety cables & fasten-
ers for an integrated and easy-to-install
system. Hanging & safety cables are infi-
nitely adjustable to 2.74 M (9.0 ft).
Optional Accessory
RS600i Open-Ceiling Speaker
Technical Information for System Engineers
from 45 Hz – 22 kHz (-10 dB, half space,
no external equalization). Measured sen-
sitivity (2.83 Volt input, 1 meter) shall be
at least 90.5 dB. The speaker shall have
a nominal impedance of 8 Ohms and be
available for 25, 70.7 & 100 Volt modes
with voice coil/8 Ohm direct. The fre-
quency-dividing network shall have a
crossover frequency of 3 kHz with slopes
of 12 dB per octave (2nd order) for both
low & high pass filters. Rated power
capacity shall be at least 90 Watts continu-
ous power (RMS) and conform to EIA-426-
B testing. Maximum continuous output at
1 meter shall be 110.5 dB.
The low-frequency transducer shall have
a polypropylene cone with butyl rubber sur-
round. The high-frequency transducer shall
be constructed of aluminum with a propri-
etary BroadBeam ® waveguide.
Installation for the RS600i shall be by
aircraft cable affixed to the speaker chassis
via a carabiner. For seismic & safety
redundancy, a secondary aircraft cable
shall be included and attach to the speaker
chassis via #10 bolt. The external wiring
input connector shall be a 4-pin, 5 mm
Euroblock for 8 Ohm or distributed sys-
tems and shall accept from 10 – 22 gauge
wire. The system shall have a weather-
resistant boot covering all wire connectors.
The enclosure shall be constructed of
injection-molded, mineral-filled, glass- rein-
forced ABS. The grille shall be constructed of
iridite-plated, powder-coated steel for lasting
performance in the elements. Overall cabinet
dimensions shall be no more than 363.6 mm
(14.31 in) in height by 307.3 mm (12.10 in) in
diameter. The RS600i shall include hanging
hardware, Euroblock connector & weather-
resistant terminal boot.
The system shall be the SoundTube
RS600i with hanging hardware for both
low & high impedance applications.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone
435.647.9555
Fax 435.647.9666
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come
with a 5-year limited warranty.
363.6 mm (14.31 in)
307.3 mm (12.10 in)
Surface-Mount Bracket (AC-RS-SM6)
463.80 mm (18.26 in)
346.45 mm
(13.64 in)
