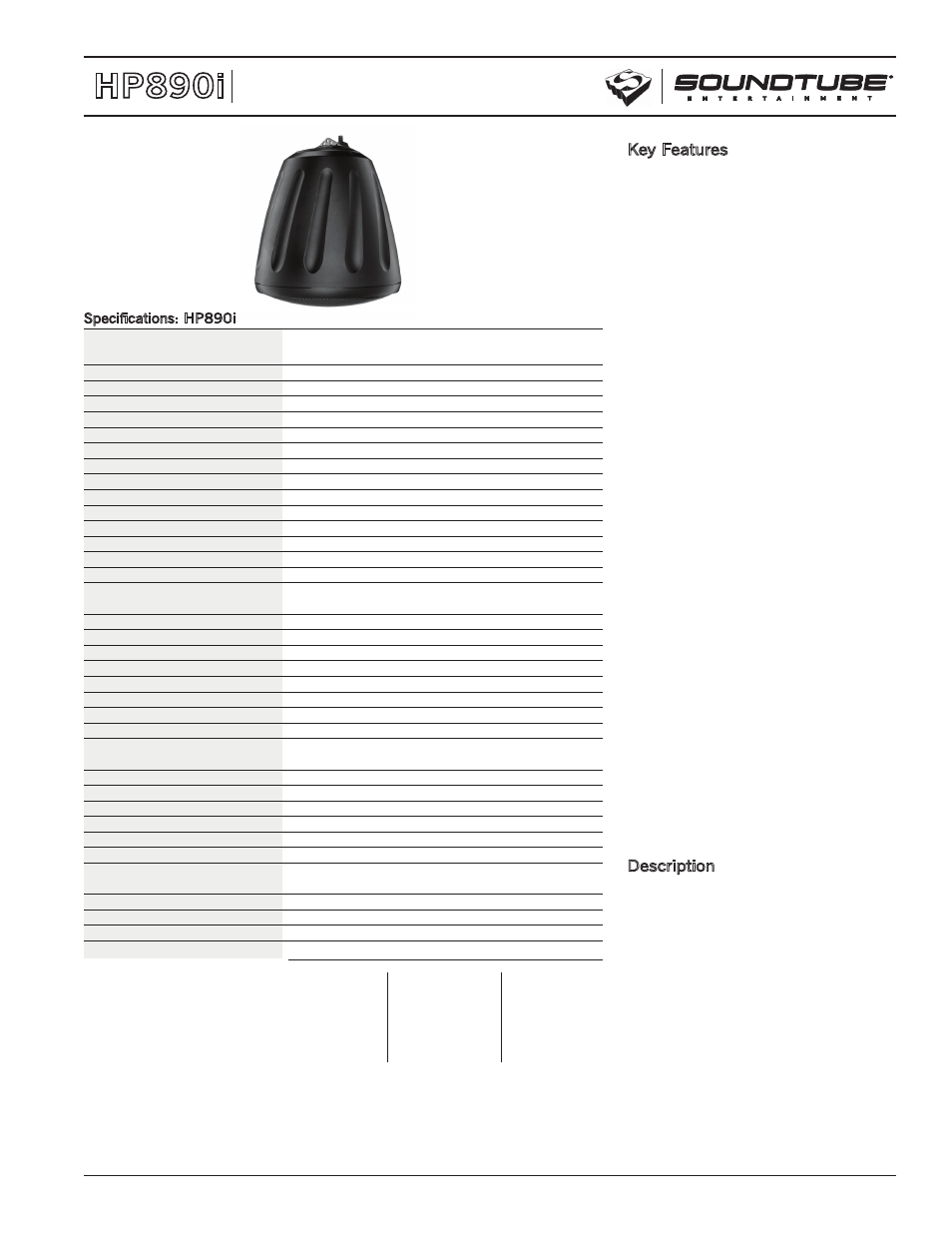

Hp890i, Open-ceiling speaker

Key Features

• Patented BroadBeamHP

waveguide

technology delivers a consistent disper-

sion pattern for maximum intelligibility

and edge-to-edge coverage (up to 8 kHz,

independently verified).

• One 203 mm (8 in.) treated fiber woofer

and one 36 mm (1.42 in.) compression

driver (1.0 inch exit) mounted to a pro-

prietary cast-aluminum M8

™

baffle and

heat sink.

• High output (115.0 dB) and 120-watt

transformer for the sound reinforcement

and PA markets.

• Average sensitivity of 94.0 dB offers

high output capabilities and reduced

amplification costs.

• Weatherized components for indoor and

outdoor applications.

• Patented ZeroReflection™ enclosure

technology for optimal sound reproduc-

tion and cabinet rigidity.

• Includes hanging hardware with

aircraft cables and integrated Speed-

Clamp

™

self-locking wire grip for

fast, easy and secure installation. Also

includes Euroblock connector and ter-

minal weather boot.

• UL 1480 and 2239 (hanging cable)

approved.

• Easy-access five-position selectable tap

switch for 25-, 70.7- and 100-volt applica-

tions with voice coil direct position sim-

plifies ordering and inventory tracking.

• Optional accessory: AC-RS-SM8 bracket

for surface-mount applications.

• High-quality black or white paint finish.

Custom paint colors optional.

Description

The HP890i is a premium 8-inch, two-

way, ported, high-efficiency, high-SPL

loudspeaker for distributed or 8 ohm

applications. The HP890i incorporates a

dedicated 8-inch treated-fiber driver and

high-power compression transducer with

a BroadBeamHP® waveguide to deliver a

consistent dispersion pattern and superb

intelligibility for the foreground music,

sound reinforcement and PA markets.

The HP890i incorporates a 120-watt trans-

former with a five-position rotary switch

with a voice coil direct position. Hanging

hardware is included and features a fast-

action SpeedClamp™ for easy and secure

installation.

HP890i

Open-Ceiling Speaker

Technical Information for System Engineers

Mounting hardware included

Specifications: HP890i

System Type

Impedance (nominal)

Sensitivity dB @ 2.83 V/1 m
Sensitivity dB @ 1W/1M

Frequency Response ( - 3 dB)

Frequency Response ( - 10 dB)

Max. Program Power

Max. Continuous Power RMS

Max. Power SPL @ 1 m

Coverage Angle (-6 dB @ 2 kHz)

Coverage Angle (-6 dB @ 10 kHz)

Coverage Angle (averaged 2-10 kHz)
Directivity Factor (Q)
Directivity Index (DI)
Tap Selector
Transducer - High-Frequency Driver

Transducer - Low-Frequency Driver
Low-Frequency Voice Coil
Crossover Frequency
Network Type: Low Pass
Network Type: High Pass
Enclosure Material
Motorboard
Grille
Inputs

Colors
Height
Diameter
Weight
Shipping Weight
Packaging
Included Accessories

Optional Accessories
Regulatory - UL
Regulatory - CE

8-inch, two-way, high-power, open-ceiling, ported (120-watt
transformer for 25/70.7/100-volt or voice coil direct)
8 ohms
94.0 dB
94.0 dB
93 Hz - 22 kHz
65 Hz - 22 kHz
250 W
125 W
115.0 dB
130º
85º
115º
4.2 (averaged 100 Hz - 10 kHz); 3.5 (2 kHz)
5.4 dB (averaged 100 Hz - 10 kHz); 5.4 dB (2 kHz)
Five-position rotary switch with voice coil direct
36 mm (1.42 in.) titanium compression driver with wave-
guide
203 mm (8.0 in.) treated paper cone, cloth surround
34.0 mm (1.34 in.)
2.5 kHz
12 dB per octave, 2nd order
12 dB per octave, 2nd order
Injection molded ABS, glass fiber reinforced
Cast Aluminum
Steel with powder-coat finish
Four-pin, 5 mm Euroblock for individual or daisy chain con-
nection
Black or white

437.6 mm (17.23 in.)
376.4 mm (14.82 in.)
12.2 kg (26.8 lbs.)
14.7 kg (32.3 lbs.)
One per box
Hanging hardware, Euroblock connector and terminal
weather boot
Surface-mount bracket (AC-RS-SM8)
UL 1480 and 2239 (hanging cable) approved
Approved
Transformer Taps

70.7 V Output

100 V Output

25 V Output

120 W 115.0 dB 120 W 115.0 dB

15 W 106.0 dB

60 W 112.0 dB

8 W 103.0 dB

30 W 109.0 dB

3.8 W 100.0 dB

15 W 106.0 dB

1.9 W 97.0 dB

Impedance listed per IEC 60268-5 with

a minimum less than 80% the nominal

impedance
1 W 1 m sensitivity determined using nomi-

nal impedance
Frequency response measured in half or

full space as dictated by speaker mounting

configuration
Max program power is 3 dB above max

continuous power
Continuous power rating, EIA-426-B test

Max output based on max continuous power
