4.0 OPERATION
Once the Model 1058s are properly installed, they should operate trans-
parently. No user settings required. This section describes reading the
LED status monitors.
4.1 POWER UP
Before applying power to the Model 1058, please review section 3.4,
“Connecting Power” on page 11 to verify that the unit is connected to the
appropriate power source.
4.2 FRONT PANEL LED STATUS MONITORS
The Model 1058 features five front panel LEDs that monitor power, the
Ethernet signals, and the VDSL Connection. Figure 9 shows the front
panel location of each LED. Table 1 on page 13 describes the LED func-
tions.

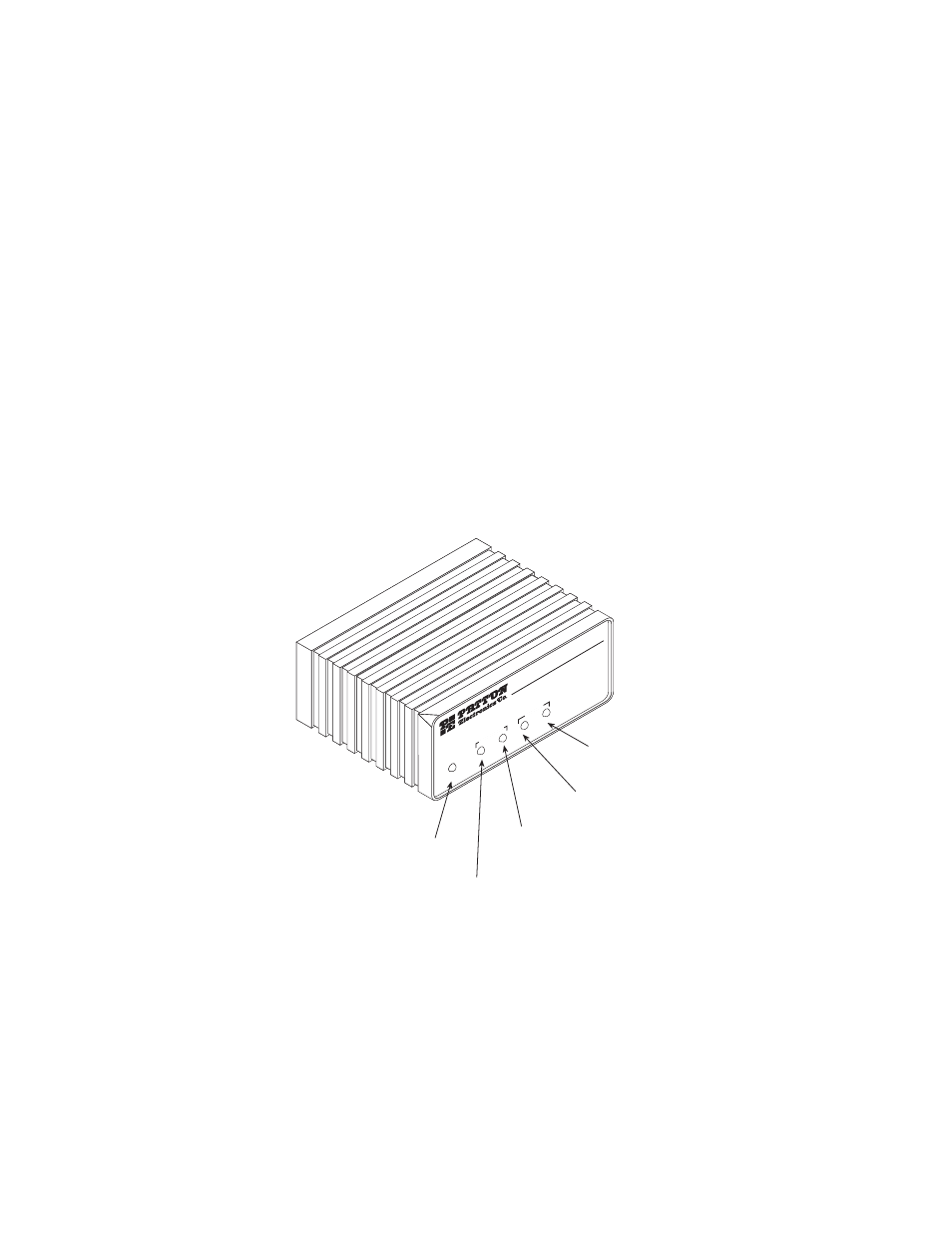

Figure 9. Front panel standalone Model 1058
Power
LED
VD
SL M
od em
Po
wer
Link
Erro
r
Lin
k
Activity
VD
SL L
ink
Eth
ern
et
VDSL
Link LED
VDSL
Error LED
Ethernet
Link LED
Ethernet
Activity LED
