15
8
8. Attach the Backrest (9) to the Upright (4) with two
M6 x 70mm Screws (28) and two M6 Washers (25).
9. Make sure that all parts have been properly
tightened before using the exercise rack.
4
9
28
28
25
25
7

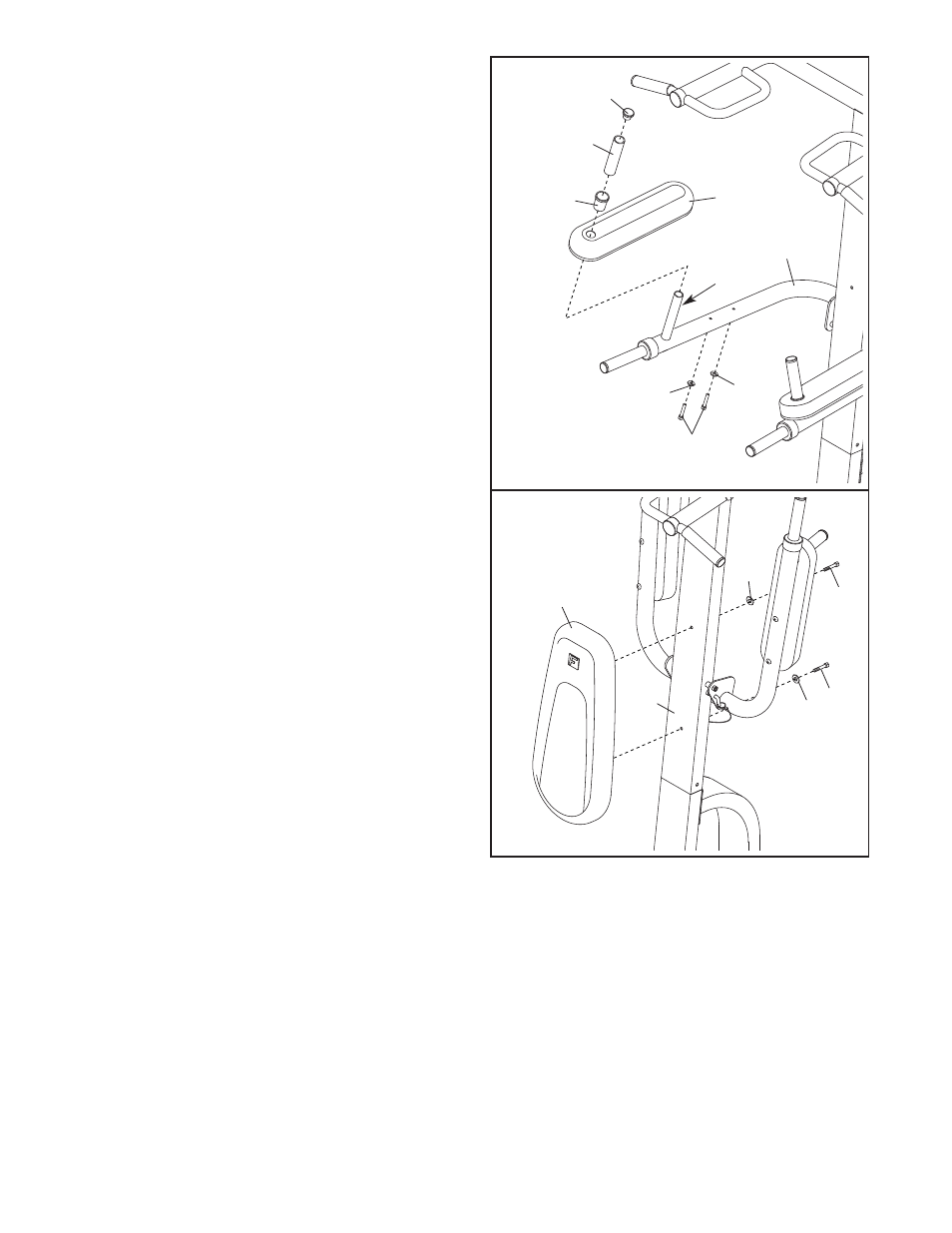

7. Attach an Armrest (11) to the Dip Arm (7) with two
M6 x 70mm Screws (28) and two M6 Washers (25).
Wet a Short Foam Grip (21) and the indicated
handle on the Dip Arm (7) with soapy water. Press
an Armrest Cap (19), the Short Foam Grip, and a
28mm Round Inner Cap (15) onto the handle on
the Dip Arm.
Repeat this step for the other side of the Dip
Arm (7).
