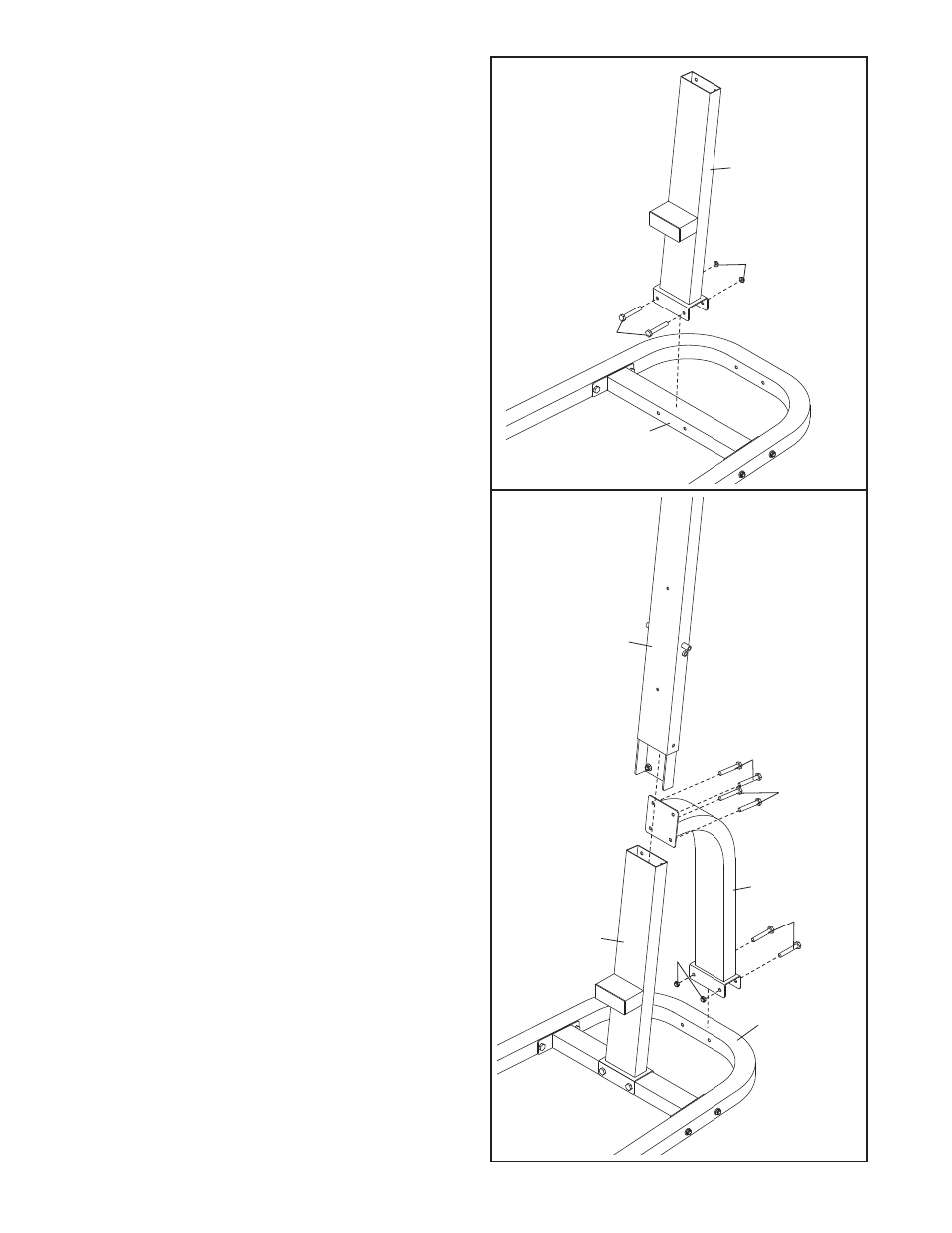

3. Attach the Upright Support (5) to the Base (1)
with two M10 x 90mm Bolts (26) and two M10
Nylon Locknuts (23).
Do not tighten the Nylon
Locknuts yet.
Insert the Upright (4) into the Upright Base (3).
Attach the Upright and the Upright Support (5) to
the Upright Base with four M10 x 30mm Screws
(27).
Tighten the M10 Nylon Locknuts (23) used in
steps 1–3.
2
3
2. Attach the Upright Base (3) to the Center Base
(2) with two M10 x 95mm Bolts (10) and two
M10 Nylon Locknuts (23).
Do not tighten the
Nylon Locknuts yet.
