8

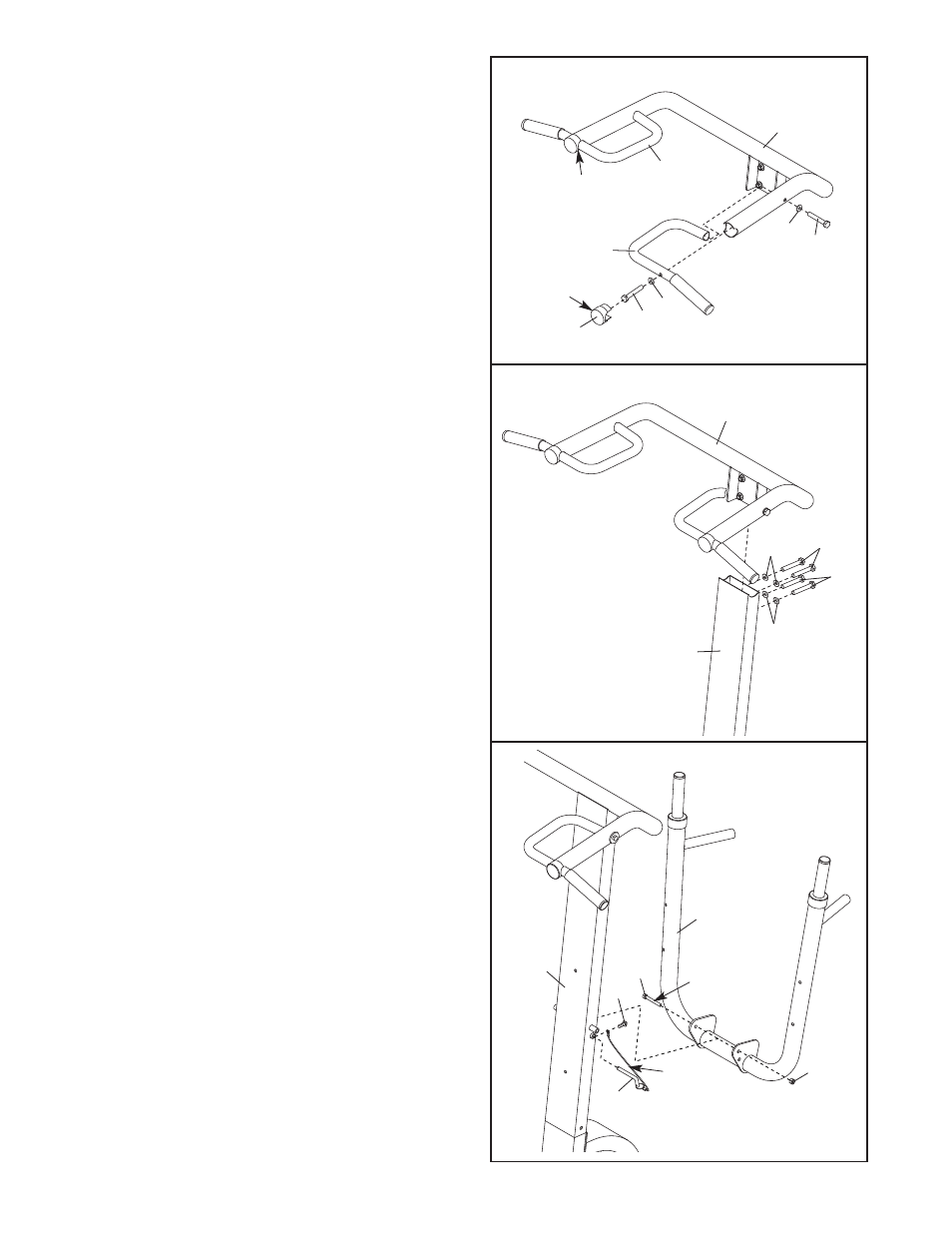

4. Attach the Left Handle (12) to the Pull-up Arm (6)
with an M10 x 65mm Screw (30), an M10 x
70mm Screw (29), and two M10 Washers (24).
Press a 50mm Round Inner Cap (14) into the
Pull-up Arm.
Make sure that the thick side of
the Round Inner Cap is on the side shown.
Attach the Right Handle (13) in the same man-
ner.
5. Insert the Pull-up Arm (6) into the Upright (4).
Attach the Pull-up Arm with four M10 x 30mm
Screws (27) and four M10 Washers (24).
27
27
24
24
12
13
6
24
29
24
30
14
Thick
Side
Thick
Side
4
4
6. Apply a small amount of the included grease to
the M10 x 200mm Bolt (31). Attach the Dip Arm
(7) to the Upright (4) with the Bolt and an M10
Nylon Locknut (23).
Do not overtighten the
Nylon Locknut; the Dip Arm must be able to
pivot easily. Pivot the Dip Arm to the horizon-
tal position.
Attach the tether on the Pin (22) to the Upright (4)
with an M4 x 16mm Self-tapping Screw (8). Insert
the Pin into the Upright.
6
5
6
22
Grease
Tether
31
7
4
23
8
