Adjusting the automatic document feeder (adf), Troubleshooting – Panasonic UF-5100 User Manual
Page 140
Troubleshooting
140
If document misfeeding occurs frequently, we suggest you adjust the ADF.
Adjusting the Automatic Document Feeder (ADF)
To adjust the ADF
1

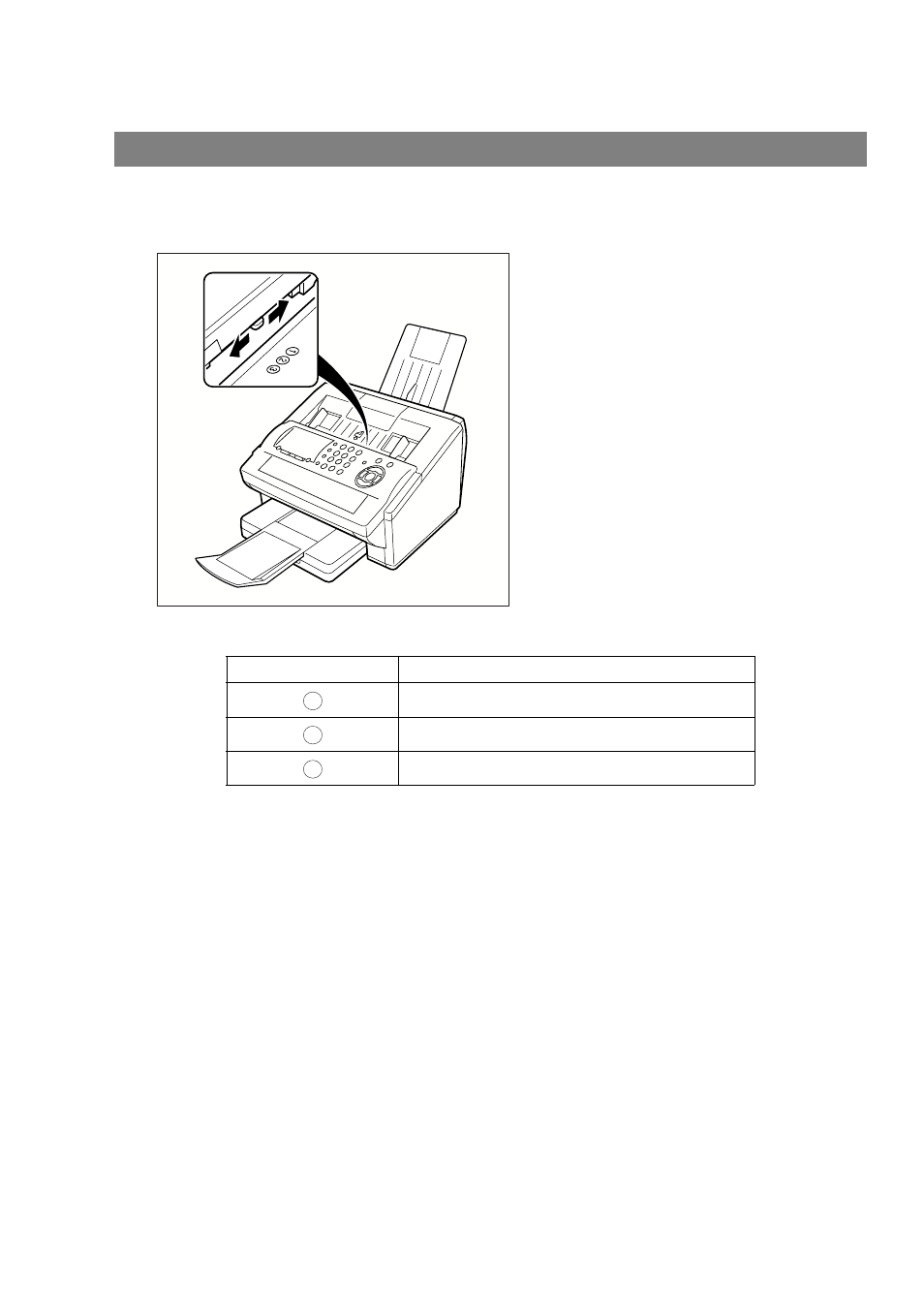

Slide the Pressure Adjusting Lever to the
desired position depending on the condition.
Position
Condition
To prevent no feed trouble
Standard position
To prevent multiple feed trouble
1
2
3
