SETUP
16

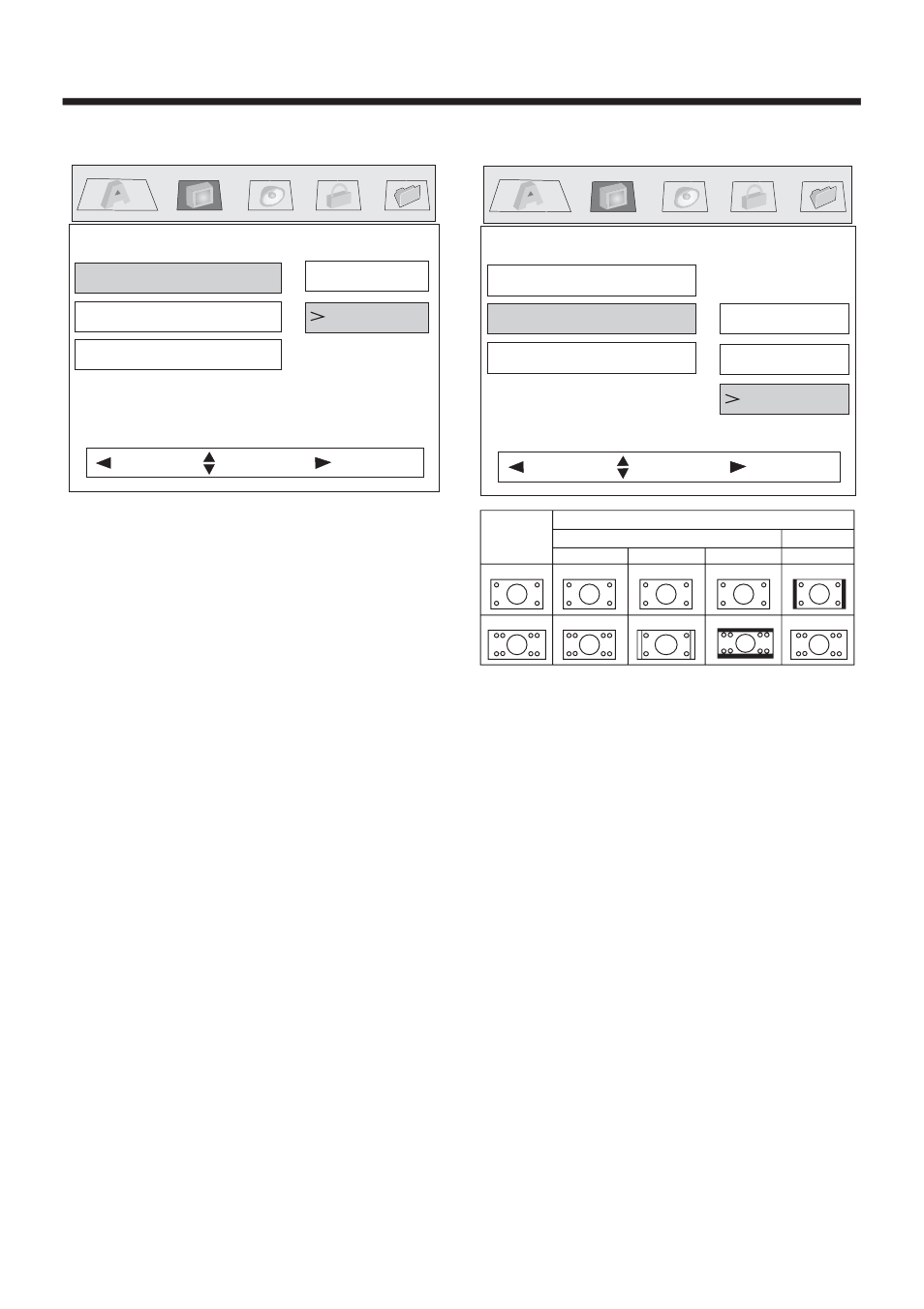

DISPLAY SETUP
TV Aspect
Display Mode
TV Output
4:3
DISPLAY
MOVE SELECT PREV.
16:9
This is to select the appropriate
Display Mode(Letter box or Pan scan
Wide screen) according to the
connected TV set.
1.TV ASPECT SETUP
Select this when the aspect ratio of
your monitor is 4:3.While viewing a
wide screen picture, the black bars
appear on the top and the bottom of
the screen.
Select this when the aspect ratio of
your monitor is 4:3.
While viewing a wide screen picture,
the black bars do not appear;
however, the left and right edges of
the pictures will not be shown on the
screen.
Select this when the aspect ratio of
your monitor is 16:9.
4:3LB(Letter Box)
16:9 TV(Wide Screen )
4:3PS(Panscan)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
and right edges are cut off.)
2.Display Mode Setup
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Played back in letterbox style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
left
Select when a wide-screen TV set is
connected.
Letter Box (For 4:3 TV)
Panscan
Wide Screen (For 16:9 TV)
(For 4:3 TV)
Letter box
DISPLAY
MOVE SELECT PREV.
Panscan
TV Aspect
Display Mode
TV Output
Wide SCR
Video
Material
Normal Pan Scan
TV Screen
Letter-box
Wide(16:9)
4:3
4:3
16:9
