Philips Semiconductors
TZA3046
Fiber Channel/Gigabit Ethernet transimpedance amplifier
10. Application information
For maximum freedom on bonding location, 2 outputs are available for OUT and OUTQ.
The outputs should be used in pairs: pad 14 with pad 7 or pad 8 with pad 13. Pad 8 is
internally connected with pad 14, pad 7 is internally connected with pad 13. The device is
guaranteed with only one pair used. The other pair should be left open. Two examples of
the bonding possibilities are shown in
Figure 8 .

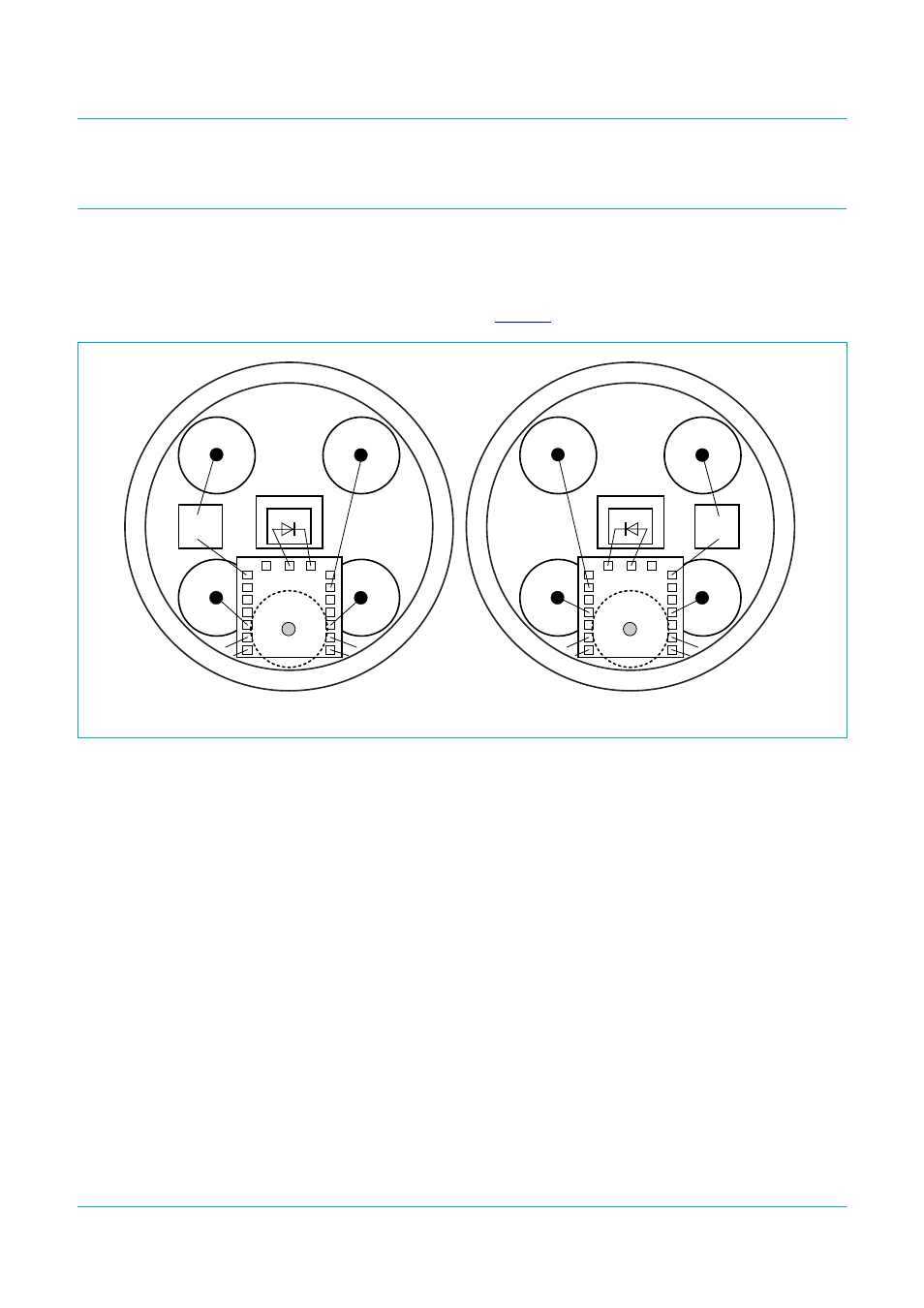

Fig 8. Application diagram highlighting flexible pad lay out
C
OUT
C
OUTQ
IDREF_MON V
CC
PIN
TZA3046U
GND
C
OUTQ
C
OUT
V CC IDREF_MON
PIN
TZA3046U
GND
001aae518
