4.0 CONFIGURATION

The Model 1082/I and Model 1082/144/I each are equipped with 16 DIP
switches that enable configuration of the unit for a wide variety of appli-
cations. This section describes switch locations and explains the different
configurations.

4.1 CONFIGURING THE HARDWARE DIP SWITCHES

Using a small flat-tip screwdriver, remove the protective cover located on
the underside of the Model 1092 (see Figure 4).

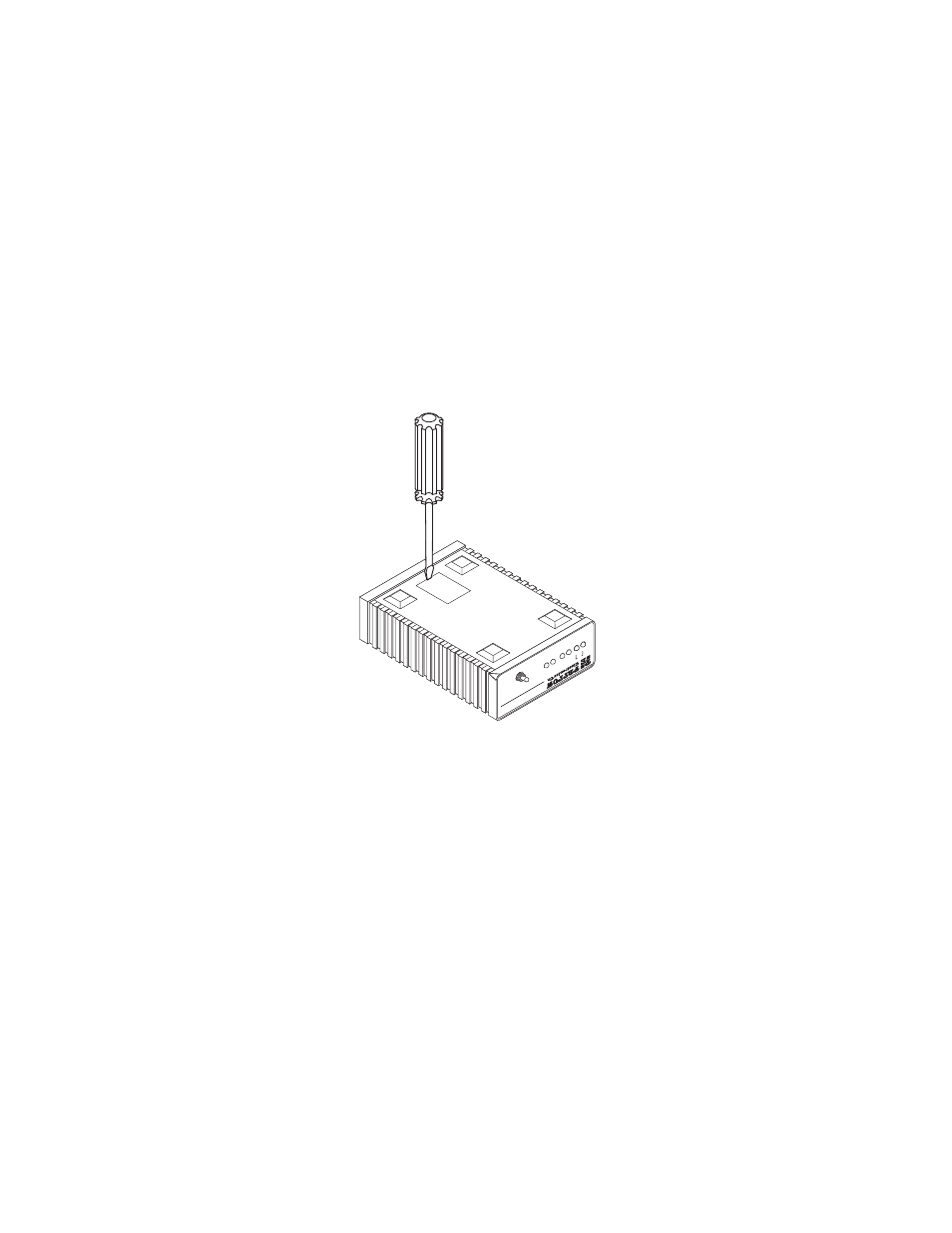

Figure 4.

Removing the cover to access DIP switches S1 and S2
