Front Panel LED definition
LED State Description
ON
When the router is powered on, and in ready
state.
PWR
OFF When the router is powered off.
Flashing
Router is trying to establish a connection
between VC-200M and VC-200S, or telecom’s
network.
LNK
ON
Successfully connected between VC-200M
and VC-200S, or router and telecom's network,
and in ready state.
DSL
ACT Flashing Data is being transmitted or received.
LNK/ACT
Flashing/ON
Data is being transmitted or received via the
corresponding LAN port, and in ready state.
LAN
1-4
100
ON
Orange color, it corresponding LAN port is
using 100BaseT.

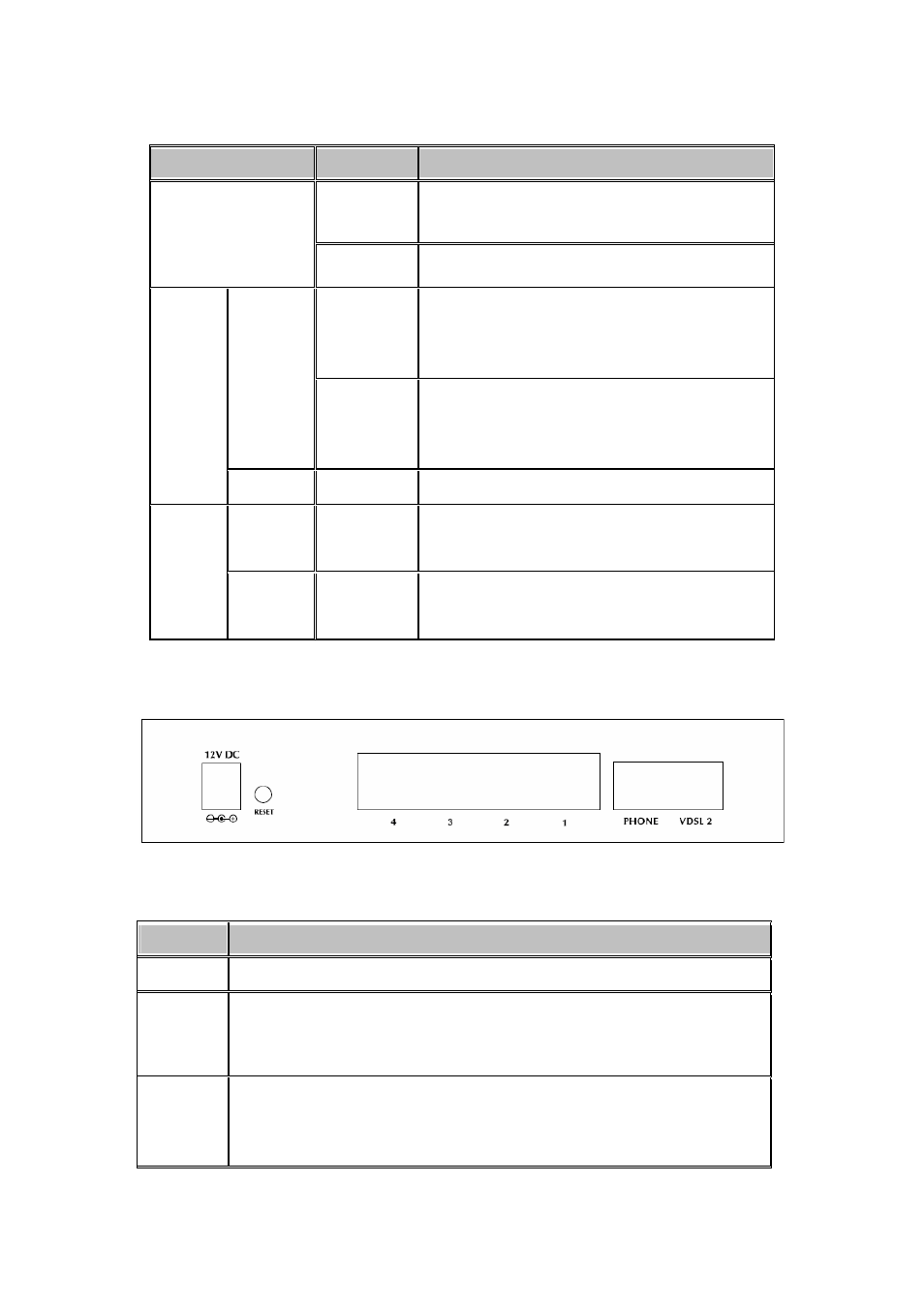

Rear Panel
Rear panel Port and Button Definition
Connector Description
POWER Power connector with 12V DC 1 A
RESET
Button
Press 1-3 seconds for reboot system.
Press more than 5 seconds for reset to factory default setting.
LAN (1-4)
Router is successfully connected to a device through the corresponding
port (1, 2, 3, or 4). If the LED light of LNK/ACT is flashing, the Router
is actively sending or receiving data over that port.
