Patton electronic IM1/I - Manual (Page 5)

4

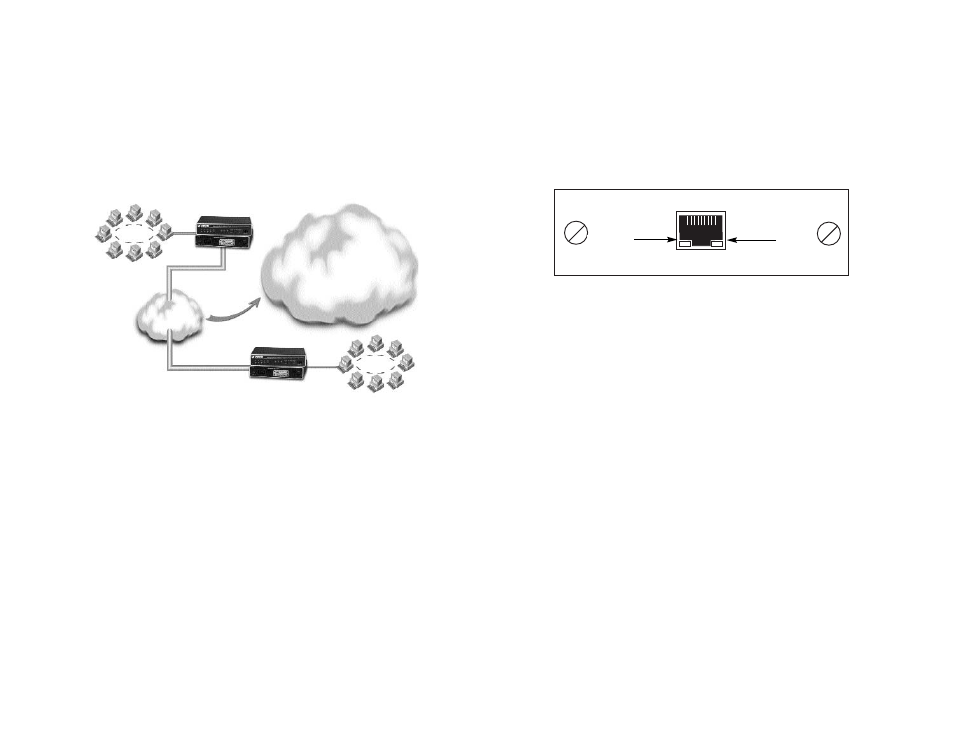

2.3 TYPICAL APPLICATION
The Model IM1/I QuickConnect™ is designed to plug directly into
the rear of a Patton Electronics baseband modem (i.e. Model 1090 or
1092). The Model IM1/I is designed to be used as one of a pair of
units. Figure 1 (below) illustrates a typical Model IM1/I installation.
Corporate Headquarters
LAN
LAN
Remote/Satellite Office
Ethernet WAN Bridge
QuikConnect™ Module
Ethernet WAN Bridge
QuikConnect™ Module
DDS Network (Model 2530)
PCM Network (Model 2073)
768k Leased Line (Model 1094)
512k Leased Line (Model 1093)
128k Leased Line (Model 1092)
64k Leased Line (Model 1090)
128k Single Fiber (Model 1184)
256k Single Fiber (Model 1185)
Figure 1. Typical Model IM1/I application
6.3 LED STATUS MONITORS
The Model IM1/I features two LEDs that monitor general operating
status and the 10Base-T twisted pair link integrity. Figure 6 (below)
shows the LEDs located directly beneath the RJ-45 jack. Following
Figure 6 is a description of each LEDs function.
Status Blinks yellow from one to eleven times to indicate
system status. Each pulse pattern is separated by a
2 second “off” period. Greater pulse patterns have
higher priority (buffer saturation has greater priority
than an empty MAC table). Valid system statuses
are:
1 pulse = system status is okay
2 pulses = no MAC entries in the MAC Address Table
3 pulses = Clear to Send (CTS) or Carrier Detect
(DCD) from base unit are not asserted
4 pulses = IM1/I buffer is saturated
5 pulses = WAN receive frame(s) too large
6 pulses = WAN receive frame(s) not octet aligned
7 pulses = WAN receive frame(s) aborted
8 pulses = Detected WAN receive frame(s) with CRC
9 pulses = Detected LAN receive frame(s) too large
10 pulses = Detected LAN receive frame(s) not octet
aligned
11 pulses = Detected LAN receive frame(s) with bad
CRC
Link Glows green to indicate good link integrity on the
10Base-T twisted pair line.
Quik-Connect Interface Module
Interface Port
Figure 6. Model IM1/I Panel
Status LED Link LED
