7.2 Connect single dome to console
Connect the RS-485 of camera to controller
(such as a keyboard
) with a pair of
twisted cable. Tele-control is sent via the cable between dome and controller.
Video signal from the dome is sent to multiplexer, monitor, DVR or video server
directly, normally through coaxial cable (usually the RG-59 A/U).
Power (DC12V or AC24V) shall be applied to the camera via separate DC or
AC adapter.
Usually the termination resistor in speed dome is set to OPEN when only one
is connected console.
Select a proper protocol and corresponding baud rate for the controller. Be
sure both sides (camera and controller) have the same protocol and baud rate.

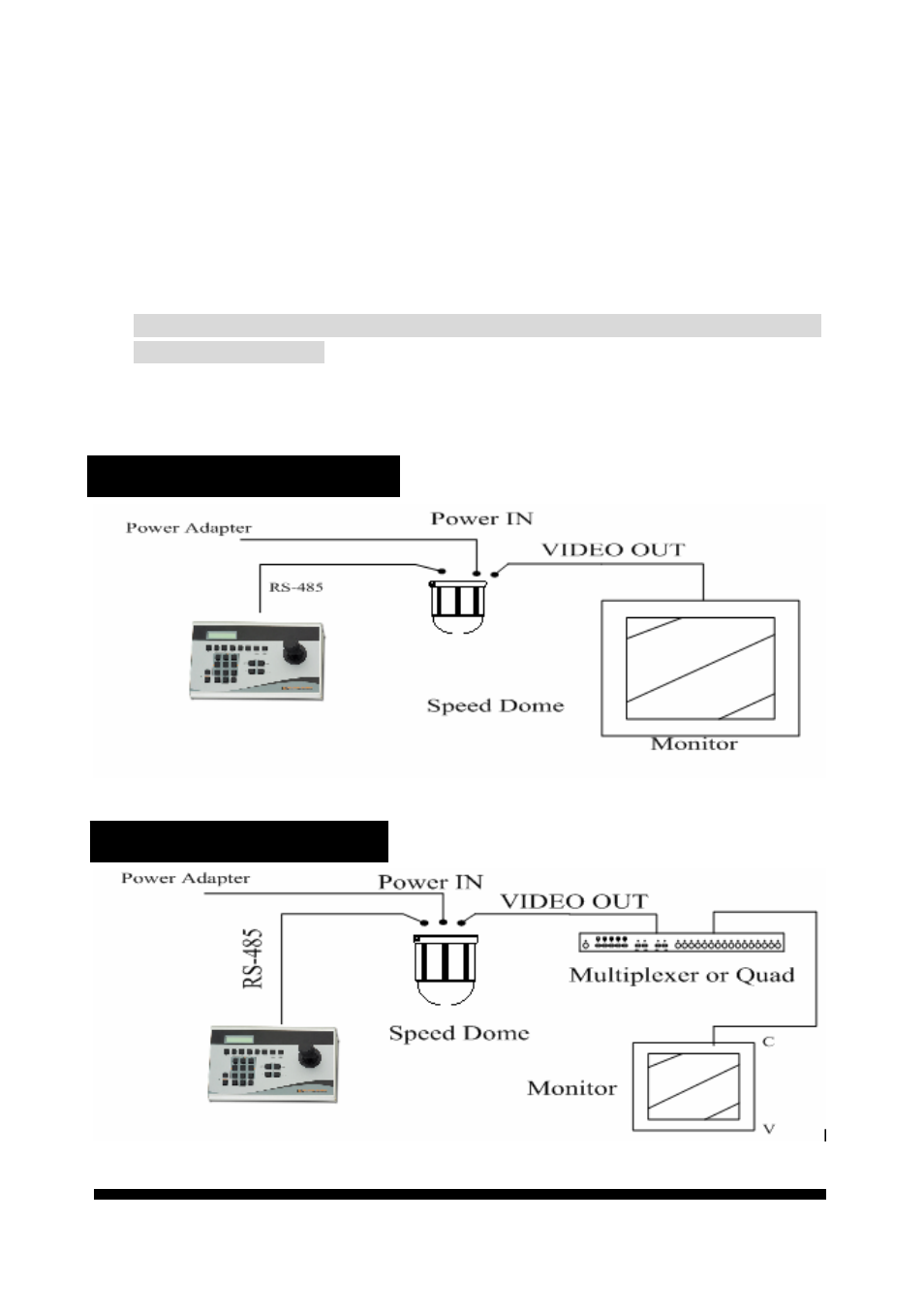

Connect to keyboard + monitor
