Household AC outlet
A

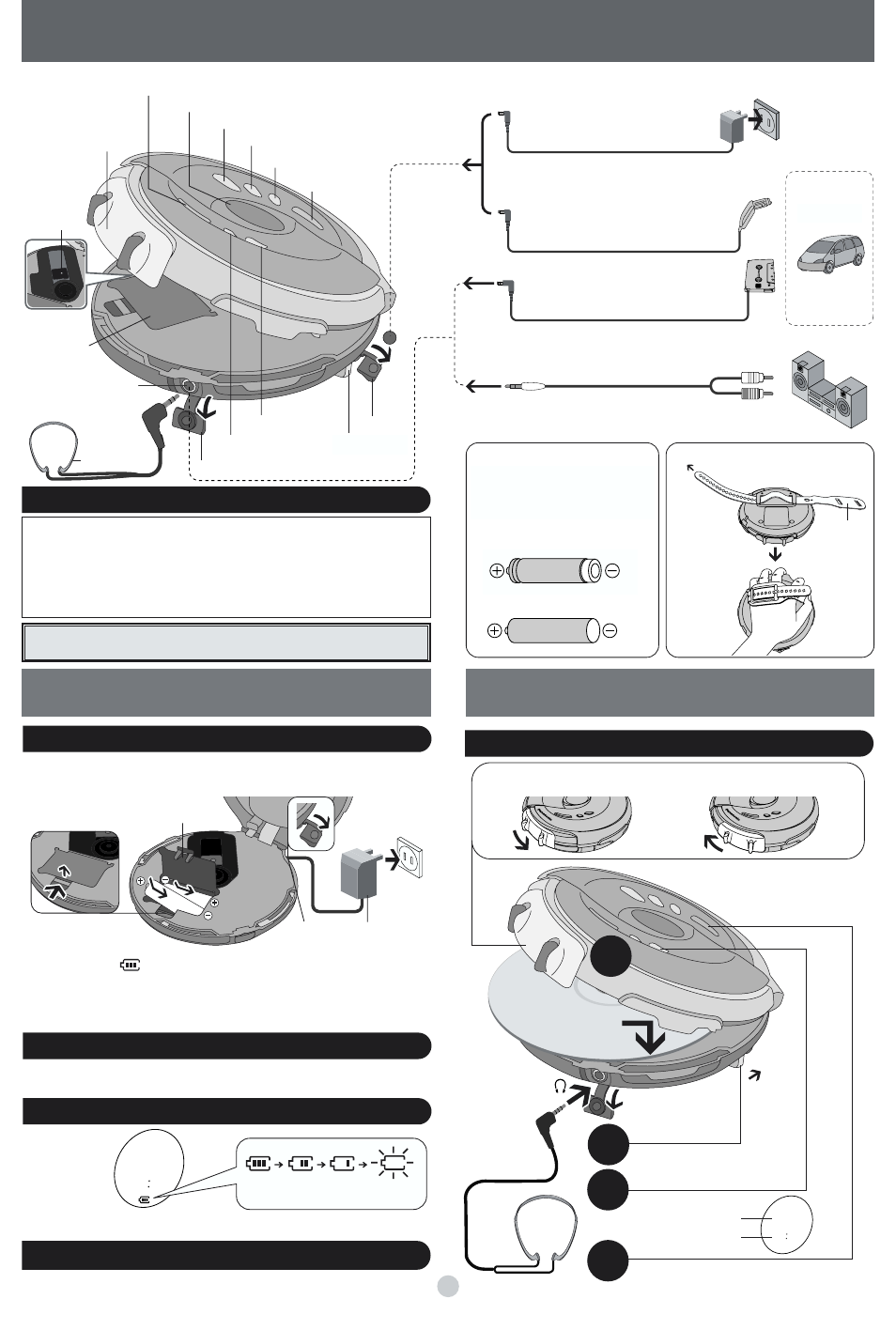

Location of controls/Connection to other equipment
Turn off this unit and the other equipment before connection.
Battery
compartment
Hold switch
Headphone jack
Lock/
Lock release
Stop/Operation off
∫ To DC IN jack
Display panel
Volume control
Skip/Search
Play mode selection
Program /Recall
Headphones
Audio system
Adjust the volume level
on the audio system.
AC adaptor (RP-AC46) (not included)
To CD or AUX
terminals
Car stereo cassette adaptor
(Purchase SH-CDM10A for SL-SW940)
≥
Set the unit’s volume to 10.
Tone selection
Some cannot be
connected.
Car audio
3
Lens
Supplied Accessories
≥ 1 Pair of stereo headphones :
L0BAD0000160 (gray)or
L0BAD0000161 (blue)
≥ 1 Hand strap :
RGQT0006-K1
SL-SW941C ONLY
≥ 1 Car power adaptor:
SH-CDC12PEY
≥ 1 Car stereo cassette adaptor:
SHCDM10B1PYK
Check the packing carton for these accessories.
Use numbers indicated when ordering replacements or optional accessories from your Panasonic dealer.
In the U.S.A. contact 1-800-332-5368 or the website (http://www.panasonic.com).
Play /Pause
Car power adaptor
(Purchase SH-CDC9 for SL-SW940)
≥
When you switch off the car, the
volume returns to 10.
≥ You can recharge the batteries with this
connection.
∫ To Headphone jack
Audio cable (not included)
≥
Set the unit’s volume to 10.
Hand strap
While jogging,
hold the unit as
shown.
Bottom of the unit
As a safety precaution this unit is
constructed so it is impossible to
recharge ordinary batteries. For details,
check with your dealer.
Special rechargeable Ni-Cd batteries:
P-3GAVA/2B (set of 2)
Ordinary dry cell batteries/
rechargeable batteries
Power Supply How to Use
Rechargeable batteries (not included)
Recharge before initial use.
1 2 3
∫ The battery indicator ( ) scrolls while recharging and disappears when finished (about 6 hours).
∫ You can recharge the batteries before they are fully discharged.
∫ Fit the battery lid so it is secure and flush with the battery compartment if it comes loose,
otherwise it can scratch your discs.
∫ To remove the batteries, lift from the left.
Dry cell batteries (not included)
After disconnecting the AC adaptor, insert two “LR6, AA, UM–3” alkaline batteries.
Insert the same way as the rechargeable batteries.
The battery indicator
DC IN jack
2 : 52
2
The unit switches off shortly after
the indicator starts flashing.
This indicator appears
when the unit is on.
AC adaptor
(Optional: RP-AC46)
Household
AC outlet
Opening and closing the lid ➪ right
Make sure the unit is off when recharging.
∫ Before playing starts the battery indicator may flash although the batteries are not drained. It
appears correctly once you start play.
Close securely.
Car adaptor
The SL-SW941C comes with a car adaptor. (Refer to the separate installation instructions.)
Purchase the optional accessory car power adaptor (SH-CDC9) for use with SL-SW940.
3
4
1
2
1 : 10
5
Playback
Open, insert a CD
and close securely.
Release HOLD.
Track number
Elapsed playing
time of track
Press.
Adjust the volume.(0 - 25)
Plug in firmly.
Plug type:
3.5 mm (1/8 in.)
stereo
∫ The volume returns to 10 when you disconnect the power source.
Open the lid. Close the lid.
Play time ➪ Specifications (page 1)
∫ Attaching the hand strap ∫ Optional rechargeable batteries
Rubber cap
Rubber cap
