• You need to subscribe to a cable TV service to enjoy viewing their programming.
• Consult your service provider regarding appropriate cable TV box.
• You need to subscribe to a cable TV service to enjoy viewing their programming.
• Consult your service provider regarding appropriate cable TV box.
• The connection will allow the video cassette recorder to be used for playback and recording when this unit is turned off.
C

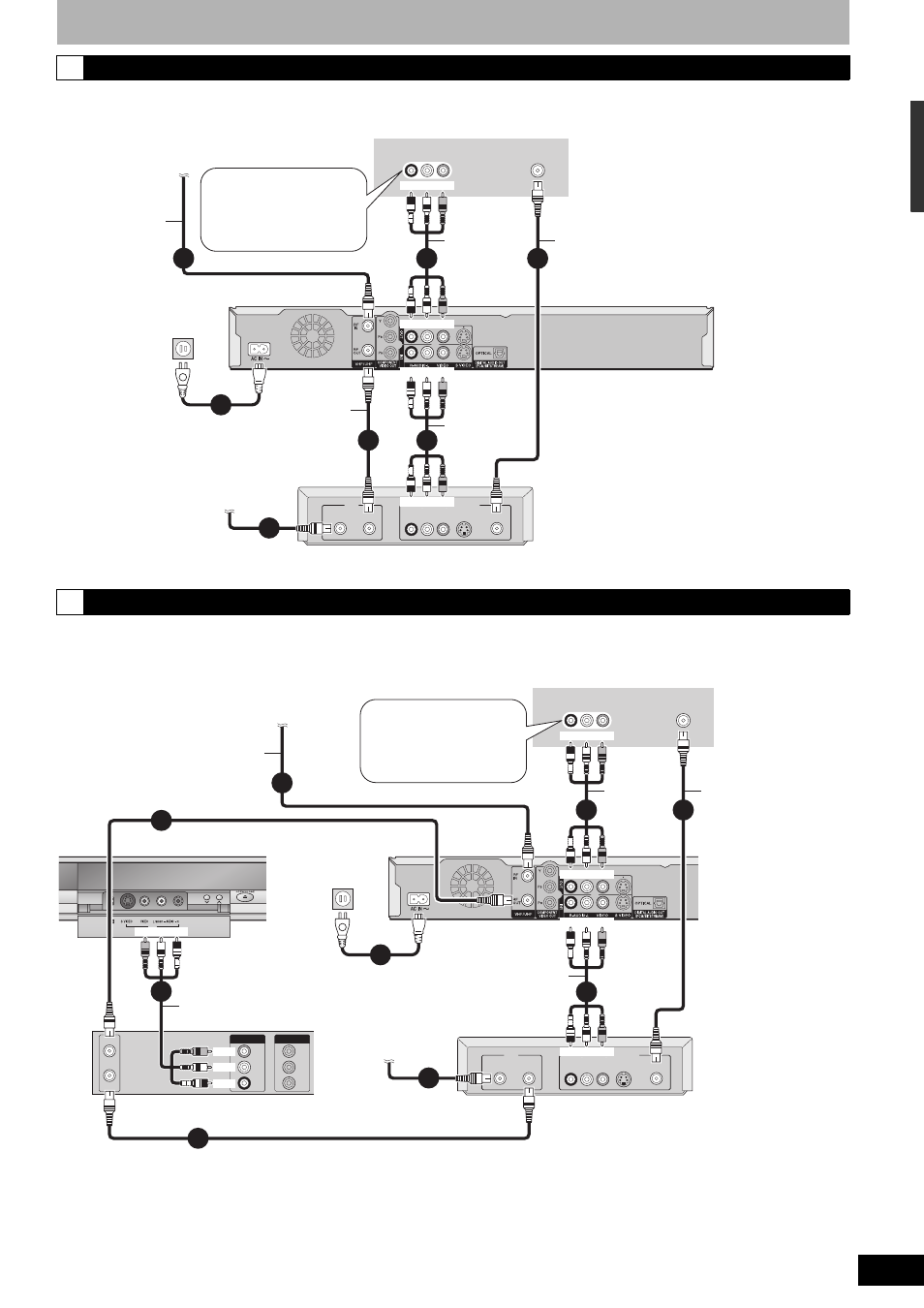

Connection with a television and cable box or satellite receiver
D
Connection with a television, video cassette recorder and cable box or satellite receiver
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
VIDEO
AUDIO
R L
S-VIDEO
OUT
RF
Cable
Satellite
IN
4
3
1
6
5
2
7
To household
AC outlet
(AC 120 V, 60 Hz)
Television
75 Ω coaxial cable
Cable from wall or
antenna signal
75 Ω coaxial
cable
This unit’s rear panel
Red White Yellow
Red White Yellow
Audio/video
cable
Cable box or Satellite receiver
• If your television does not
have AUDIO/VIDEO
terminals (Ô page 10 c).
• If you enjoy higher picture
quality (Ô page 10).
Red White Yellow
Satellite antenna
(Satellite receiver only)
Red White Yellow
AC power supply cord (Included)
Connect only after all other
connections are complete.
75 Ω coaxial
cable
(Included)
To OUT
To RF IN
To RF OUT
To IN1
Audio/video
cable
(Included)
75 Ω coaxial
cable
CH
IN2
DV IN
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
VIDEO
AUDIO
R L
S-VIDEO
OUT
RF
Cable
Satellite
IN
VHF/UHF
RF IN
VHF/UHF
RF OUT
AUDIO
R
AUDIO
L
VIDEO
OUT
OUT
AUDIO
R
AUDIO
L
VIDEO
IN
IN
6
3
7
8
5
9
2
4
1
AC power supply cord (Included)
Connect only after all other
connections are complete.
To household
AC outlet
(AC 120 V, 60 Hz)
Television
75 Ω coaxial cable
Cable from wall or
antenna signal
75 Ω coaxial cable
This unit’s rear panel
Red White Yellow
Red White Yellow
75 Ω coaxial cable
Audio/video
cable
Cable box or Satellite receiver
• If your television does not
have AUDIO/VIDEO
terminals (Ô page 10 d).
• If you enjoy higher picture
quality (Ô page 10).
Red White Yellow
Satellite antenna
(Satellite receiver only)
Red White Yellow
75 Ω coaxial
cable
Yellow White Red
Video cassette recorder
This unit’s front panel
75 Ω coaxial cable (Included)
Audio/video
cable
Yellow
White
Red
To OUT
To RF IN
To RF OUT
To IN1
To IN2
Audio/video
cable
(Included)
S
T
EP
1
