2
Color temperature
Cool White (CW) Affinium LED modules have a correlated color temperature (CCT) of 5600 ± 300K.
Neutral White (NW) Affinium LED modules have a correlated color temperature (CCT) of 4200 ± 300K.
The optical design of Affinium LED modules ensures that the adjacent LEDs in one module are optimally mixed in order to minimize
color differences.
Lighting levels and energy savings
Our products deliver best-in-class light uniformity and are available in two different lighting levels:
• Standard system: Delivers in-store levels of up to 1000 lux at the center of a shelf with a 5 inch shelf distance.
• High-level system: Delivers in-store levels of up to 1300 lux at the center of a shelf with a 5 inch shelf distance.
The standard lighting level offers energy savings up to 75% with improved illumination compared to fluorescent lighting systems. The high
lighting level offers maximum aesthetics for the presentation of merchandise, while reducing the energy consumption by up to 55%. Both levels
offer superior uniformity, enabling a much better visual impression of the merchandise on display and the entire cooler and freezer sections.
Side1
Side 2
Side 2
Side 1

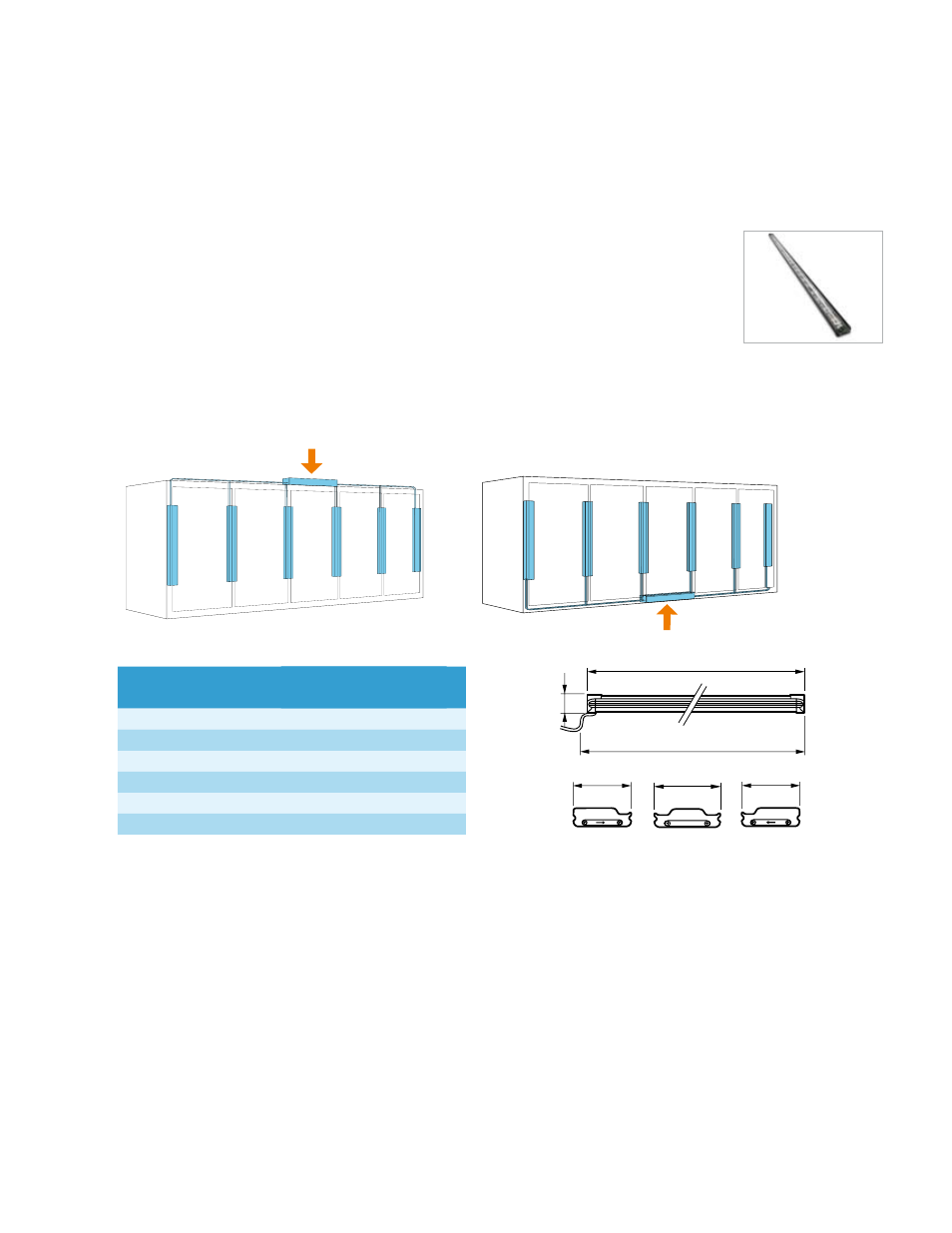

Connections at the top of the freezer
If the electrical wires are fed through the top of the case,
install the side 1 module on the left side and the side 2
module on the right side of the case.
Connections at the bottom of the freezer
If the electrical wires are fed through the bottom of the
case, install the side 2 module on the left side and the side
1 module on the right side of the case.
The Affinium LED lighting system for refrigerated display cases includes:
LFM 200 modules, 24VDC Xitanium™ LED power drivers, and mounting extrusions.
About Affinium LED modules LFM 200
The LFM 200 module is suitable for full-height glass door refrigerated display cases and is available in 59” and 67” lengths.
Both lengths are available in three versions:
Center module •
Side 1 module •
Side 2 module •
The side 1 or 2 module can be placed on either side of the case, depending on the wiring scheme followed.
Affinium LED lighting
C1
A3
A1 B1 B1 B1
Side Center Side
C1
A3
A1 B1 B1 B1
Affinium LED modules
LFM 200 59” center module
LFM 200 59” side 1 module
LFM 200 59” side 2 module
LFM 200 67” center module
LFM 200 67” side 1 module
LFM 200 67” side 2 module
Dimensions (in)
A1 A3 B1
59.06 59.45 2.20
59.06 59.45 1.93
59.06 59.45 1.93
66.93 67.32 2.20
66.93 67.32 1.93
66.93 67.32 1.93
