10
English
7 AUDIO OUT
For connecting analogue (Left/Right) audio signals to
external recording devices such as VCR or Tape
Recorder for recording.
8 FRONT SPEAKERS
Connect the left front speaker to the “L” terminals,
the right front speaker to the “R” terminals and centre
speaker to the “C” terminals. Connect the coloured
(marked) wire to "+" and the black (unmarked) wire
to "-".
12 mm
a b c
9 SURROUND SPEAKERS
Connect the left surround speaker to “SL” terminals
and the right surround speaker to “SR” terminals.
Connect the coloured (marked) wire to "+" and the
black (unmarked) wire to "-".
0 SUBWOOFER OUT
Connect this terminal to the AUDIO INPUT terminal
of the powered subwoofer.
After completing all the connections, connect the AC
power cord of the player and subwoofer to the wall
outlet.
Notes:
– To prevent damage to circuits, never short-circuit the
positive and negative speaker output terminals.
– Do not connect more than one speaker to any one pair of
+/- speaker terminals.
– Do not connect speakers with an impedance lower than
the speakers supplied. Please refer to the SPECIFICATIONS
section of this manual.

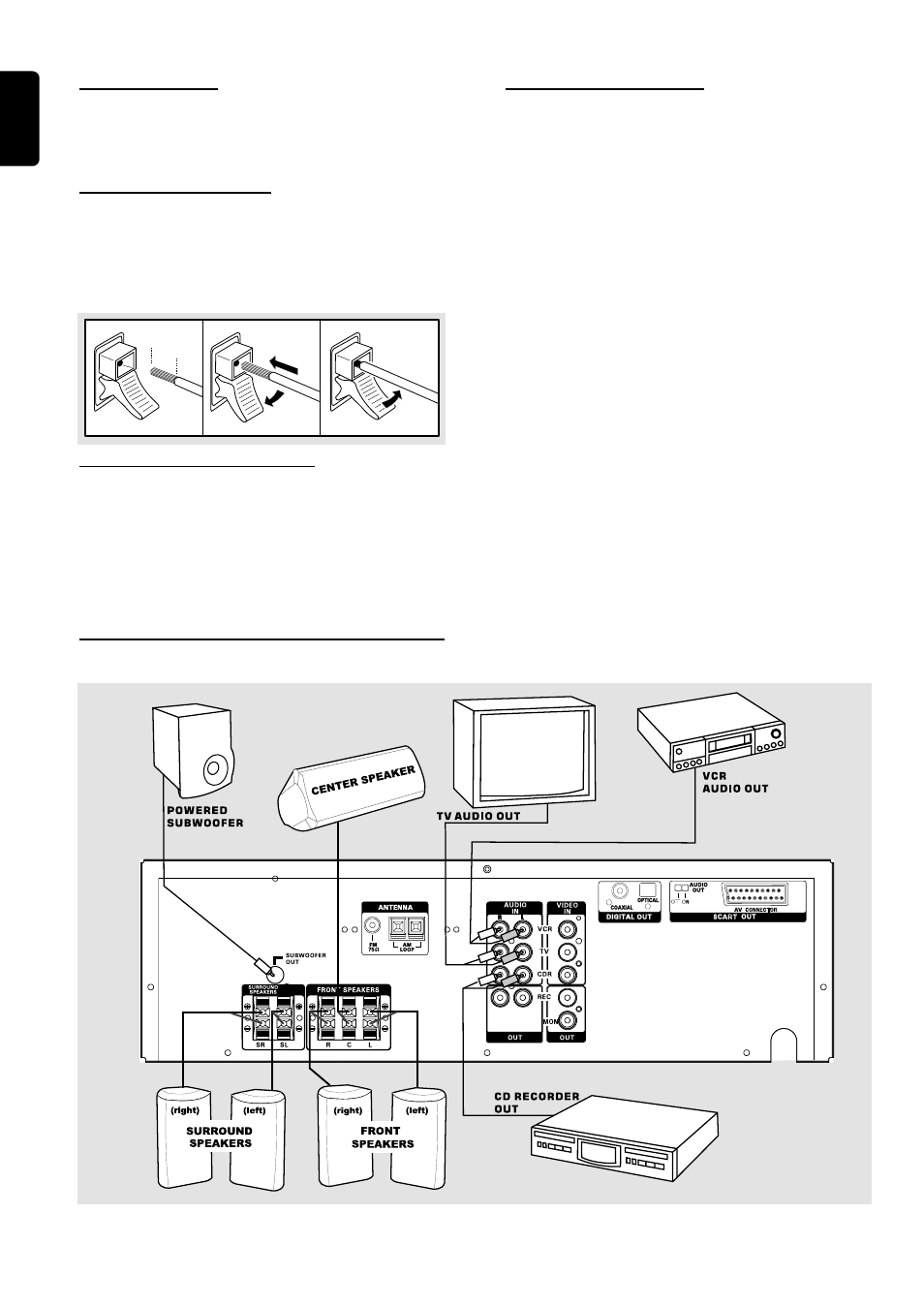

Analogue Audio Connections
C
ONNECTIONS
