5. Place the leading edge of the label stock between the throat
guide and the side of the printer.
6. Feed the label stock further into the printer until it senses
the label and automatically feeds it through the printer. If
the printer fails to feed the label stock, press the Feed but-
ton on the front panel while continuing to guide the label
stock into the printer.
F. ADJUSTING THE LABEL STOCK TOF (TOP OF FORM)
SENSOR
If you are using label stock other than standard square /
rectangular die cut labels such as circular die-cut labels or
through-hole stock use the instructions below to adjust the
label stock TOF sensor.

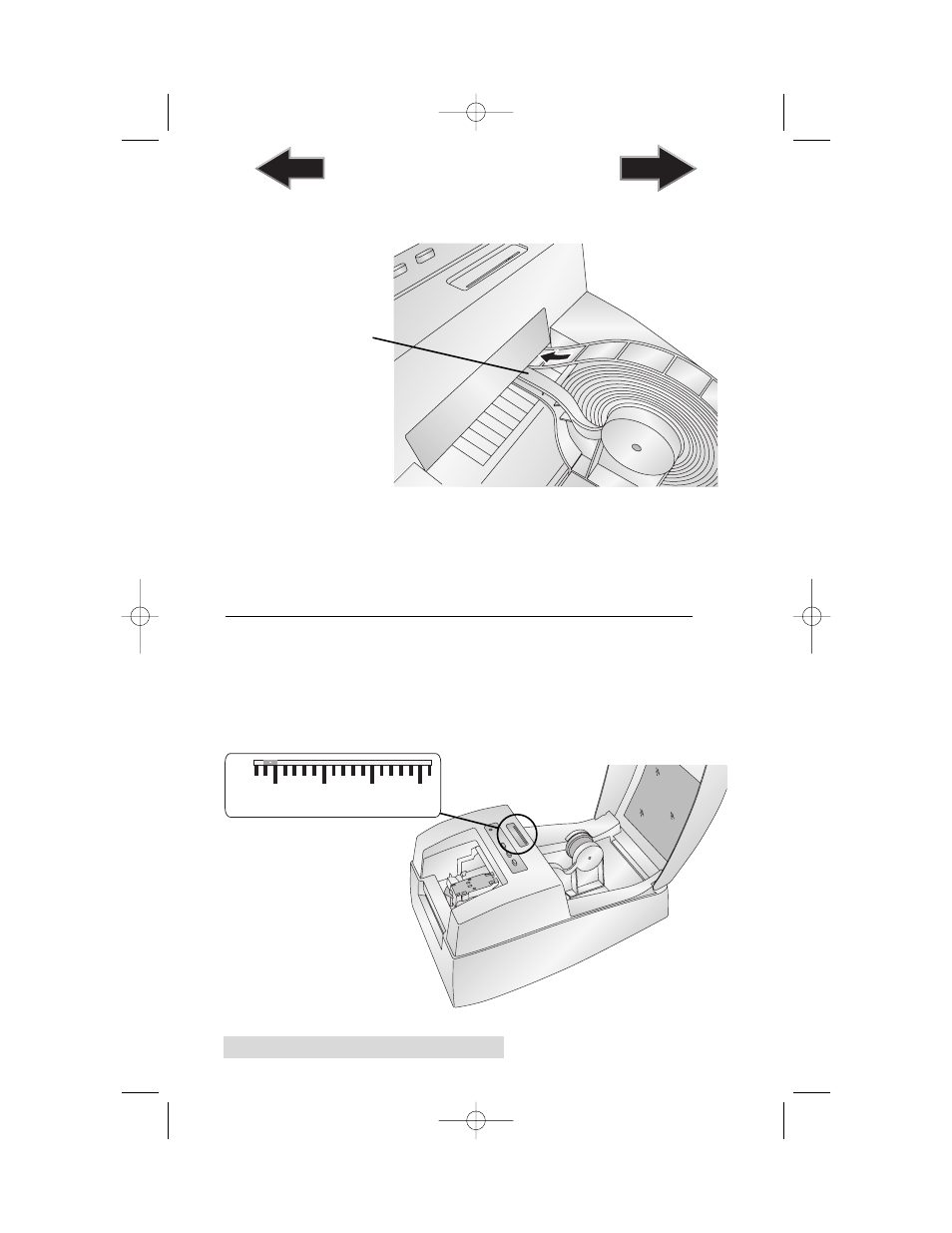

Throat Guide
0.5 1.0 1.5 2.0
12.7 25.4 38.1 50.8 mm
in.
Label Stock Sensor Bar
