Philips DVDR610 - Manual (Page 15)

15
English
3139 246 13454

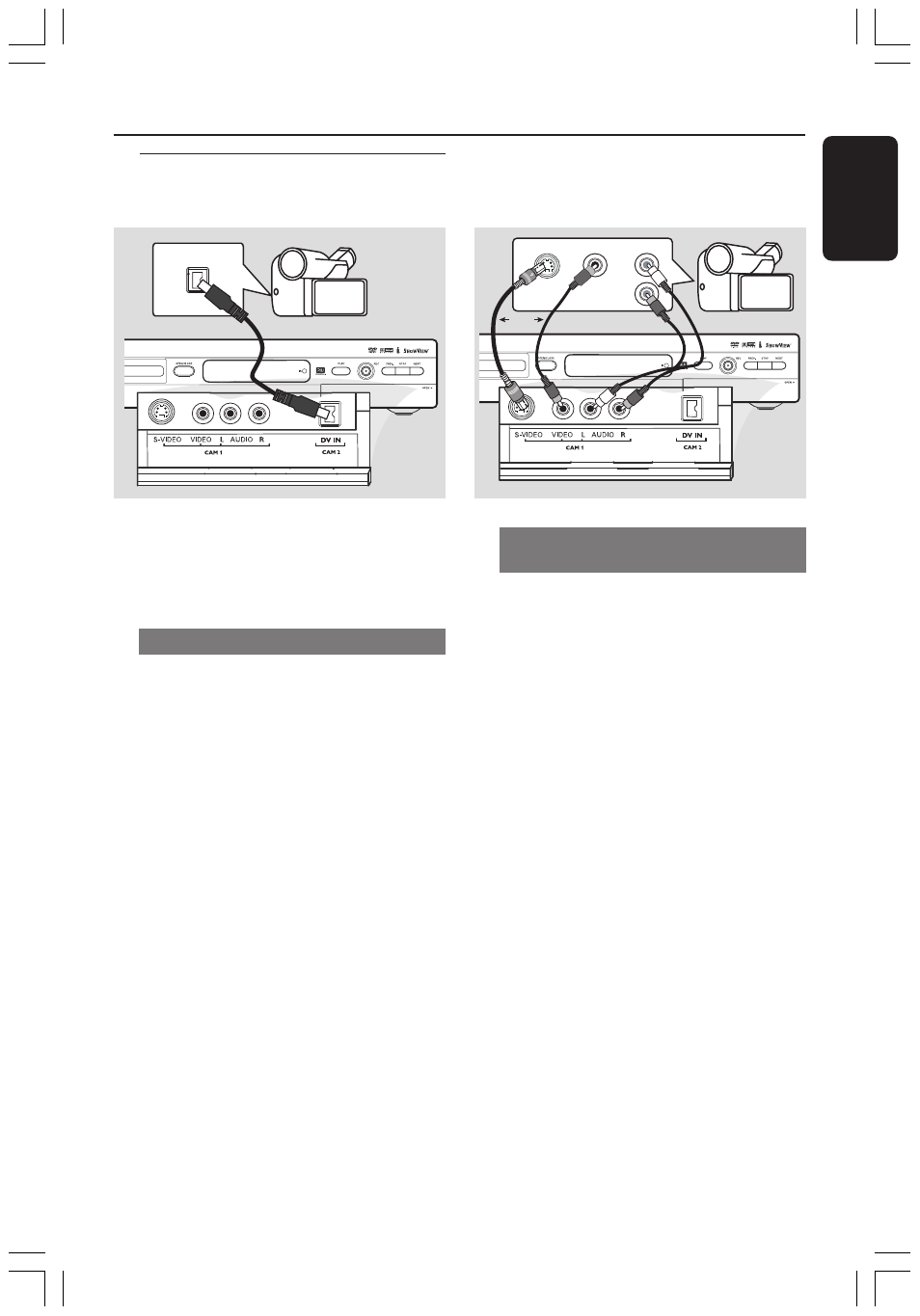

Connecting a camcorder to
the front sockets
Connecting Additional Devices
(cont’d)
CH- CH+
S-VIDEO OUT
L
R
VIDEO OUT
OR
AUDIO OUT
1
2
CH- CH+
DV OUT
You can use the front sockets to copy
camcorder recordings. These sockets are
located behind the flap on the right hand
side.
Option 1: Using DV IN socket
(for DVDR615 and DVDR616 only)
Use this connection if you have a Digital
Video or Digital 8 camcorder. The DV
socket will conforms to the i.Link
standard. It provides the best picture
quality.
●
Use an i.LINK 4-pin cable to connect the
DVD recorder’s DV IN socket to the
appropriate DV output socket on the
camcorder.
Before start operating, select ‘
CAM 2’ as
the input channel.
For recording, see pages 38~39.
Helpful Hints:
– You can also use the DV IN to connect the
DVD recorder to a Personal Computer that
has a DV output socket. The PC must have
an IEEE 1394 Firewire connector.
– The DV socket on this recorder can only
receive input signals, it cannot output signals.
Option 2: Using S-VIDEO In or
VIDEO In socket
Use S-VIDEO connection if you have a
Hi8 or S-VHS(C) camcorder. It provides
very good picture quality.
Alternatively, you can use VIDEO
connection if your camcorder has only a
single video output (Composite Video,
CVBS). It provides good picture quality.
1
Use a S-video cable to connect the DVD
recorder’s S-VIDEO input socket to the
appropriate S-VHS output socket on the
camcorder.
OR
Use a video cable (yellow) to connect the
DVD recorder’s VIDEO input socket to
the appropriate video output socket on
the camcorder.
2
Use an audio cable (red/white) to
connect the DVD recorder’s
AUDIO L/R input socket to the audio
output socket on the camcorder.
Before start operating, select ‘
CAM1’ as
the input channel.
For recording, see pages 38~39.
1DVDR6xx_Eng00_13454c 9/28/04, 1:25 PM 15
