120
FX-301

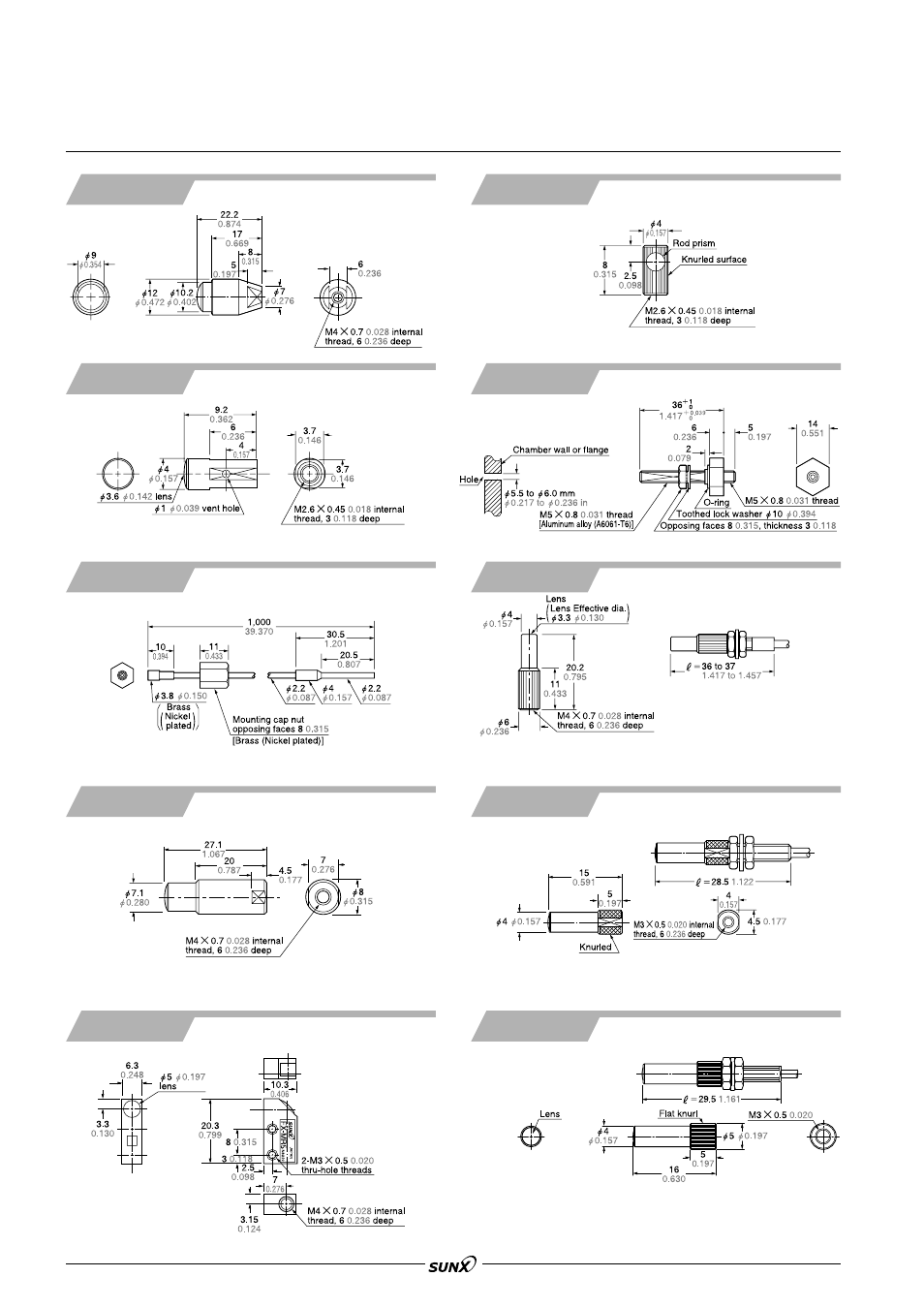

DIMENSIONS (Unit: mm in )
FX-LE2 FX-SV1
Super-expansion lens (Optional) Side-view lens (Optional)
FV-LE1 FV-BR1
Expansion lens (For vacuum type fiber
⅐ Optional)
Photo-terminal (For vacuum type fiber
⅐ Optional)
FT-J6 FX-MR1
Fiber at atmospheric side (For vacuum type fiber ⅐ Optional) Pinpoint spot lens (Optional)
FX-MR2 FX-MR3
Zoom lens (Optional) Finest spot lens (Optional)
FX-MR5 FX-MR6
Zoom lens (Optional) Finest spot lens (Optional)
Mounting hole
Photo-terminal side Amplifier side Mounting drawing
with FD-G4
Mounting drawing with FD-EG1
Mounting drawing with FD-EG3
Material: Enclosure ......Aluminum alloy (A6061-T6)
Lens ..............BK-7
Material: Enclosure ......Stainless steel (SUS303)
Lens ..............Glass
Material: Enclosure ......Brass (Nickel plated)
Lens ..............Glass
Note: In order to obtain a "0.5 mm
" 0.02 in spot, it is necessary to
keep ‘?’, in the above figure,
within the specified range.
Material: Enclosure ......Aluminum (Black ALMITE)
Lens ..............Glass
Notes: 1) In order to obtain a "0.3 mm " 0.012 in spot, it is necessary for ‘#’,
in the above figure, to be 28.5 mm 1.122 in .
Notes: 2) When inserting the fiber, insert it fully till it stops.
Notes: 1) In order to obtain a "0.1 mm " 0.004 in spot, it is necessary for ‘#’,
in the above figure, to be 29.5 mm 1.161 in .
Notes: 2) When inserting the fiber, insert it fully till it stops.
Material: Enclosure ......PBT (Black)
Lens ..............Glass
NT-FX-MR5 (exclusive nut) is attached.
Material: Enclosure ......Aluminum (Black ALMITE)
Material: Lens ..............Glass
Material: Enclosure ......Aluminum (Black ALMITE)
Lens ..............Glass
Material: Enclosure ......Aluminum (Black ALMITE)
Lens ..............Acrylic
08/2005
