MAINTENANCE AND LUBRICATION

Lubrication Recommendations

Oil and Filter Change - ATP 500 4x4

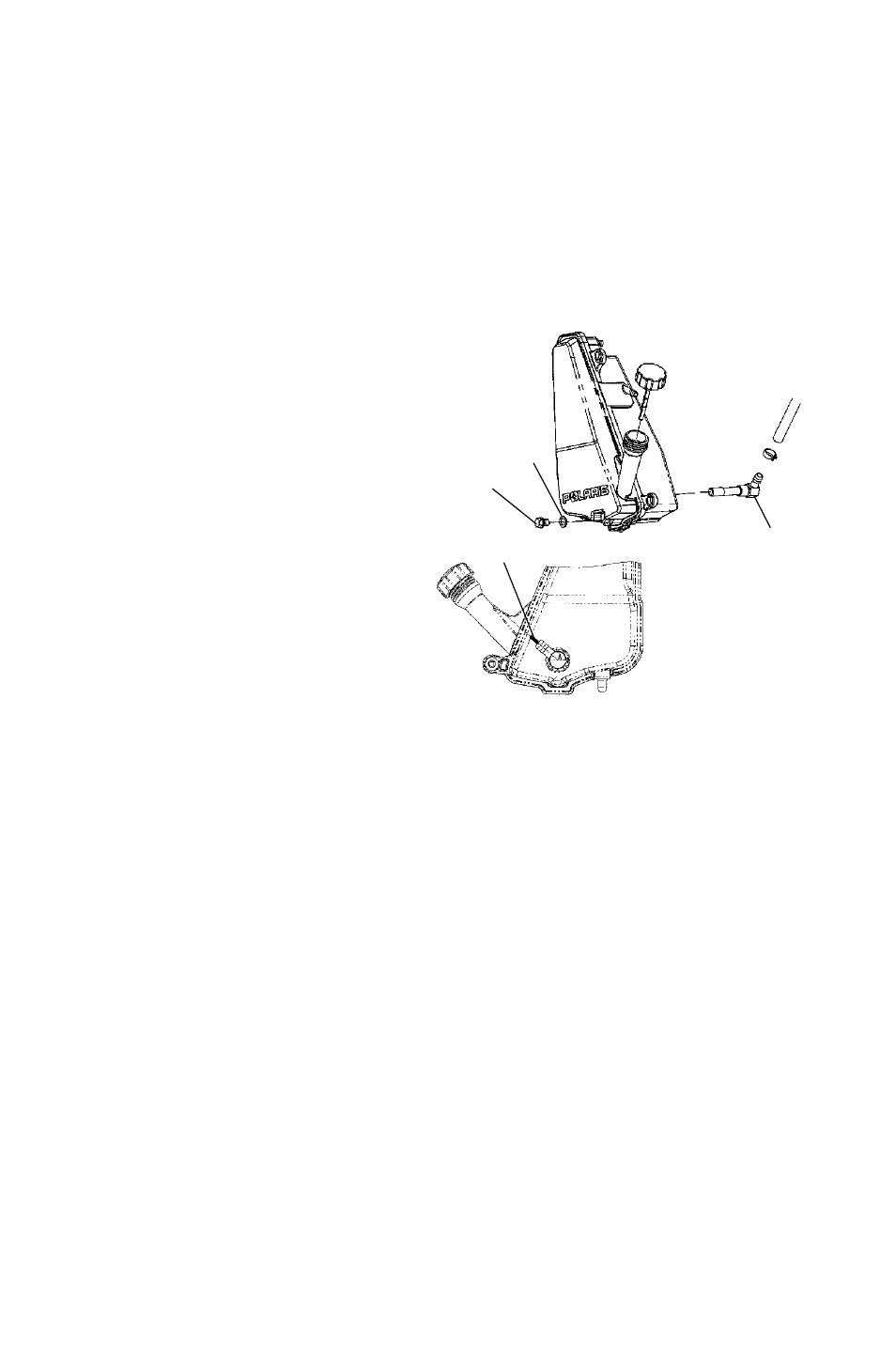

4. Place a drain pan beneath the oil tank and remove the drain plug

(1). Allow the oil to drain completely.

5. Install a new sealing washer (2) on the oil drain plug. NOTE:

The sealing surfaces on the drain plug and the oil tank should be

clean and free of burrs, nicks or scratches.

6. Reinstall the drain plug

and torque to 14-17 ft.

lbs. (1.93-2.35 kg/m)

7. Disconnect the lower oil

delivery hose and remove

the screen fitting (3) from

the oil tank. Clean and

reinstall the fitting,

torquing to 25 ft. lbs.

Reattach the oil line.

NOTE: The fitting

threads must be sealed

with Loctitet PST 505 or

PTFE seal tape. The

fitting must also line up with

the mark (4) on the rear side of the oil tank.
