3.0 ADDITIONAL INFORMATION
3.1 LED Indications
3.2 Regulatory Compliance for Class A Equipment
The following regulatory compliance information applies to the UIM-1000T as mounted on a
MUM2000-2 and installed in one of Net to Net Technologies' IP DSLAMs.
3.2.1 US Federal Communications Commission (FCC)
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

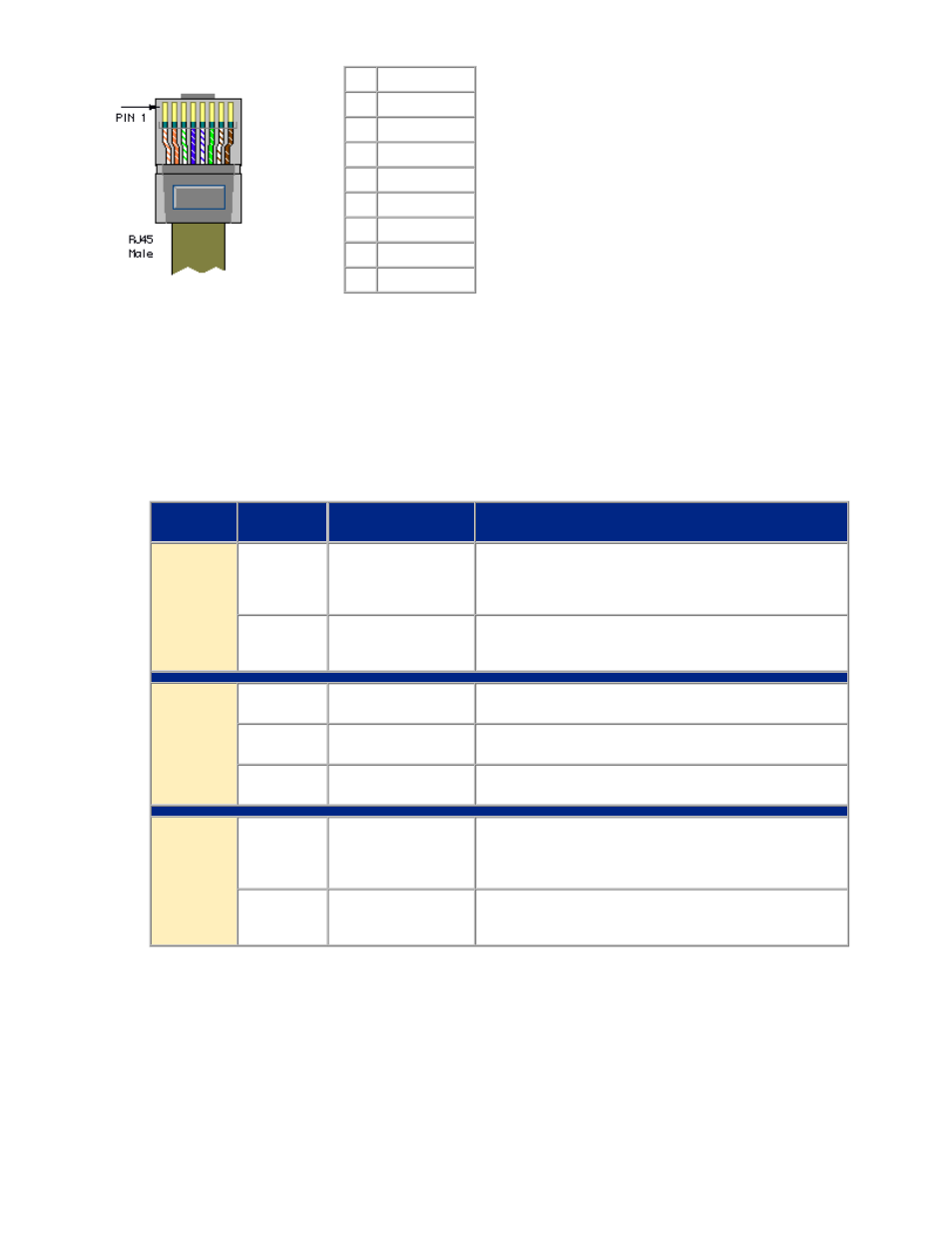

1000Base-T RJ45 Port Pinout
PIN CONNECTION
1 TP0+
2 TP0-
3 TP1+
4 TP2+
5 TP2-
6 TP1-
7 TP3+
8 TP3-
LED
State Indication Additional Information
Dplx
(Duplex) solid green Full Duplex Ethernet
connection is
established The UIM-1000T Ethernet connection only operates
under full duplex data transmission. As such, whenever
an Ethernet connection is present, the Dplx LED will be
illuminated.
no
illumination no Ethernet
connection If the Dplx LED is not illuminated then an Ethernet
connection has not been established and the Lnk LED
will remain unlit as well.
Act
(Activity) flashing
amber Ethernet activity Traffic is flowing at 1 Gbps.
solid amber heavy Ethernet
activity
Heavy traffic flow.
no
illumination no Ethernet activity No current traffic flow.
Lnk (Link) solid green 1 Gbps Ethernet
uplink connection is
established The UIM-1000T Ethernet connection only operates
under full duplex data transmission. As such, if the Lnk
LED is illuminated, the Dplx LED will also be
illuminated.
no
illumination no Ethernet
connection If the Lnk LED is not illuminated then an Ethernet
connection has not been established and the Dplx LED
will remain unlit as well.
