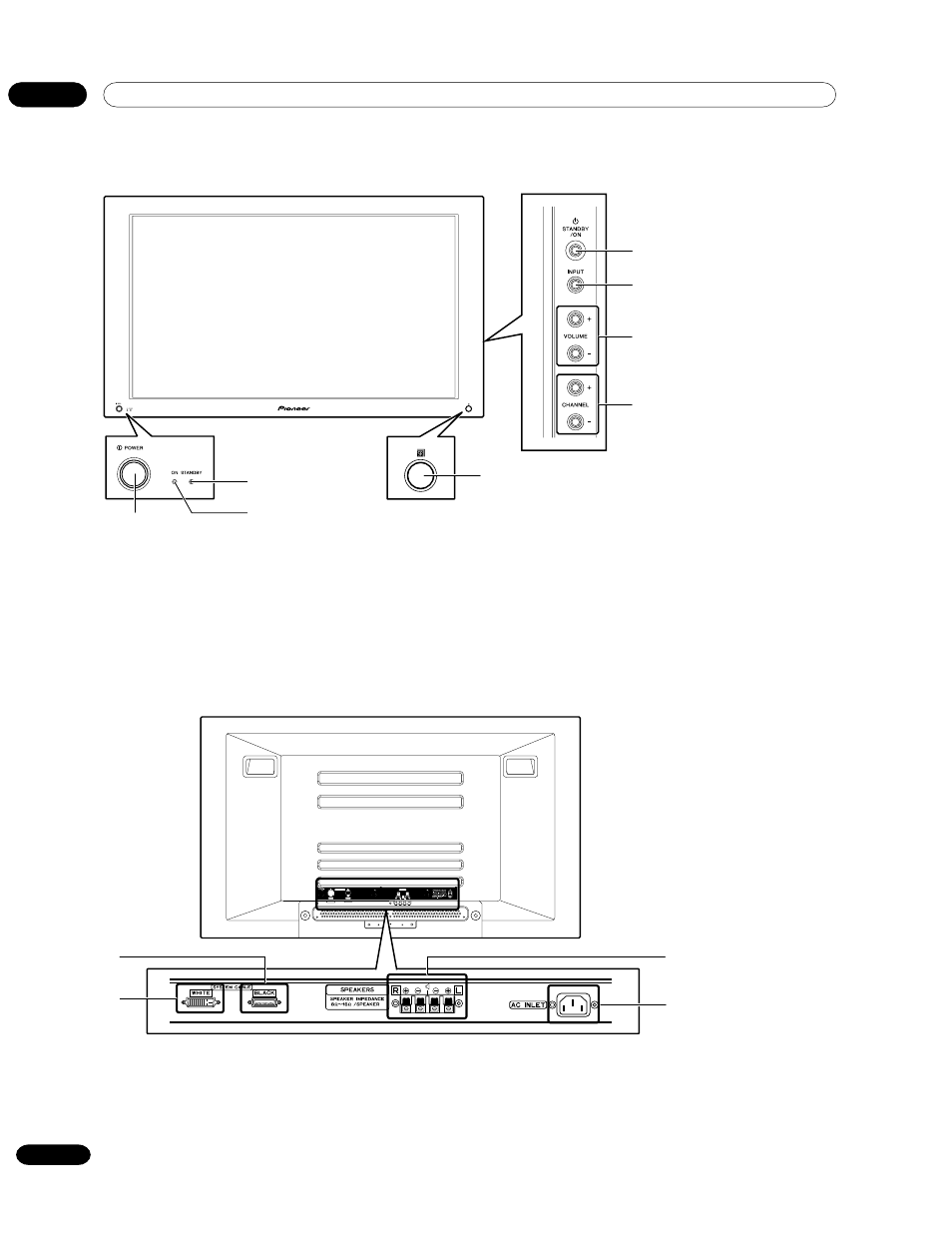

Nombres de los componentes
12
Sp
Pantalla de plasma
1 Botón POWER (alimentación)
2 Indicador STANDBY (espera)
3 Indicador POWER ON (encendido)
4 Sensor del mando a distancia
1
2
4
3
5
6
7
8
(vista derecha)
Vista frontal
5 Botón STANDBY/ON
(espera/encendido)
6 Botón INPUT (entrada)
7 Botón VOLUME +/– (volumen)
8 Botón CHANNEL +/– (canal)
0
9
-
=
Vista trasera
9 Terminal SYSTEM CABLE (NEGRO)
0 Terminal SYSTEM CABLE (BLANCO)
- Terminales de altavoces
(derecho/izquierdo)
= Terminal AC INLET (entrada de CA)
Los terminales tiene la cara hacia abajo.
