Page 146
05
Nomes dos componentes
14
PoB

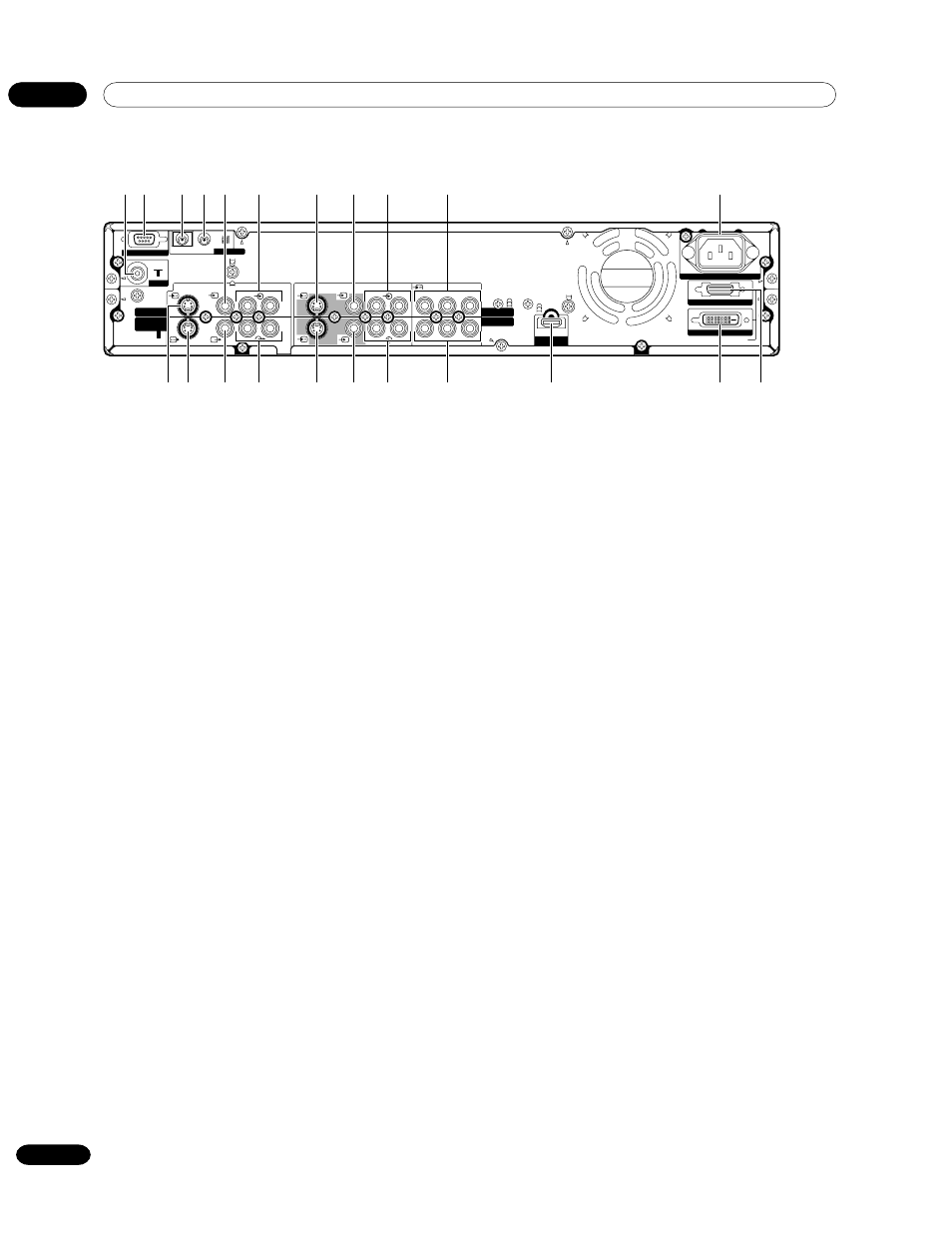

Vista traseira
SERVICE ONLY
ANT
INPUT 1
INPUT 3
INPUT 3
HDMI
INPUT 2
MONITOR
OUTPUT
CONTROL
I N
OUT
AC INLET
BLACK
WHITE
SYSTEM CABLE
Y
Y
P
B
P
B
P
R
P
R
S-VIDEO
VIDEO
R-AUDIO-L
S-VIDEO
VIDEO
R-AUDIO-L
COMPONENT VIDEO
^
*
(
= ~
!
@
#
$
%
6
7
8
9
0
-
2
3
1
4 5
&
1 Terminal de entrada de antena
2 Terminal RS-232C (usado na
configuração de fábrica)
3 Terminal de entrada de controle
4 Terminal de saída de controle
5 Terminal INPUT 2 (VIDEO)
6 Terminais INPUT 2 (AUDIO)
7 Terminal INPUT 1 (S-VIDEO)
8 Terminal INPUT 1 (VIDEO)
9 Terminais INPUT 1 (AUDIO)
0 Terminais INPUT 1 COMPONENT VIDEO
(Y, P
B
, P
R
)
- Terminal AC INLET
= Terminal INPUT 2 (S-VIDEO)
~ Terminal MONITOR OUTPUT (S-VIDEO)
! Terminal MONITOR OUTPUT (VIDEO)
@ Terminais MONITOR OUTPUT (AUDIO)
# Terminal INPUT 3 (S-VIDEO)
$ Terminal INPUT 3 (VIDEO)
% Terminais INPUT 3 (AUDIO)
^ Terminais INPUT 3 COMPONENT VIDEO
(Y, P
B
, P
R
)
& Terminal INPUT 3 (HDMI)
* Terminal SYSTEM CABLE (BRANCO)
( Terminal SYSTEM CABLE (PRETO)
