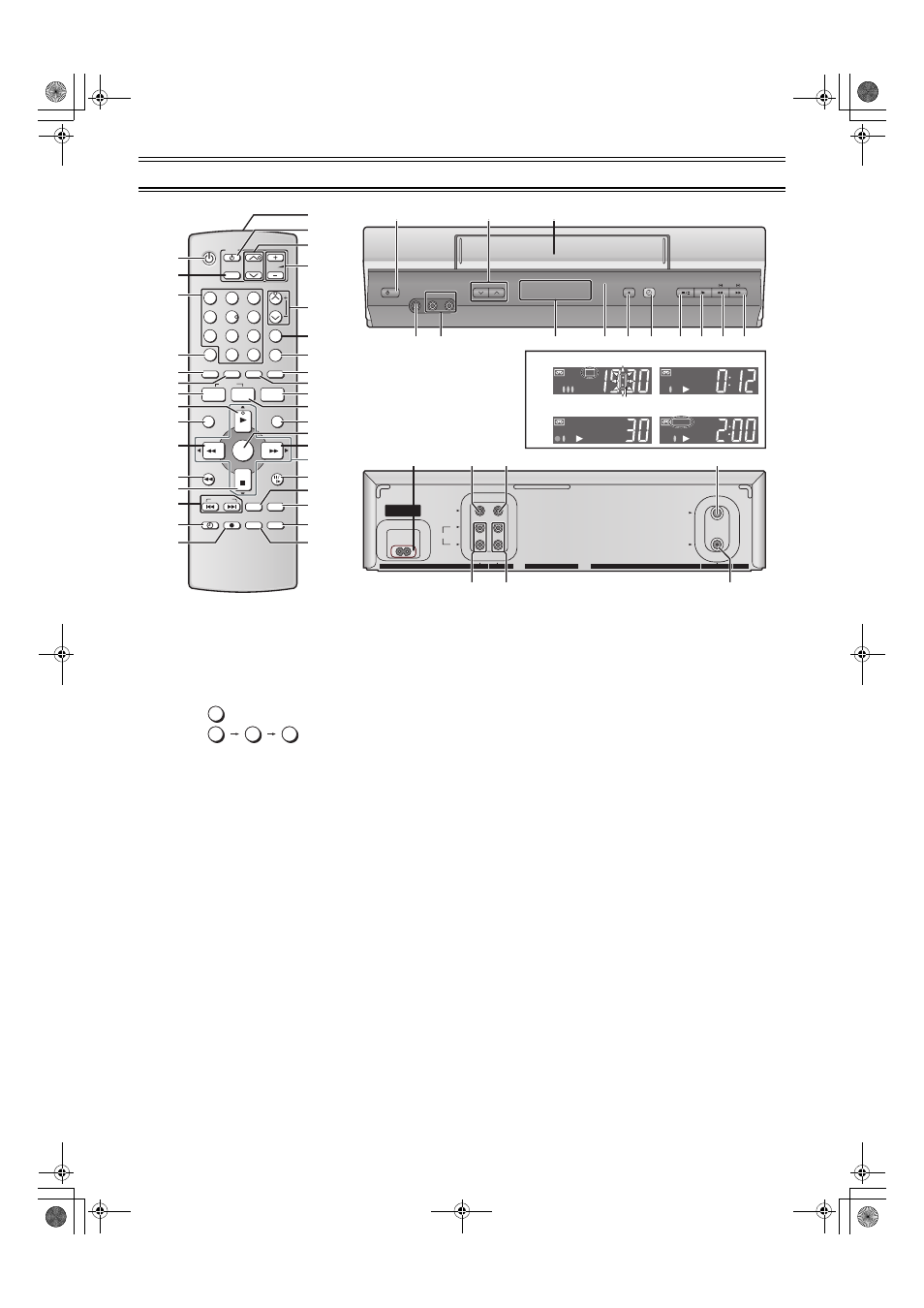

Controls and Components
VCR Operation
(1) [VCR-ON/OFF]
(2) [AV]
(3) [Numeric]
To select the programme positions
(1-99).
• Example:
To enter numbers for various settings.
(4) No function
(5) [CANCEL]
(6) [INPUT SEL]
(7) [PROG]
(8) [PLAY]
(9) [MENU]
(10) [Rewind]
(11) [JET REW]
(12) [STOP]
(13) [INDEX]
(14) [TIMER (REC)]
(15) [REC]
(16) Infra-red transmitter
(17) [TV-ON/OFF]
(18) [TV CH]
(19) [VOL
N
]
(20) [CH]/[TRACKING/V-LOCK]
(21) [PROG PLAY]
(22) [AUDIO]
(23) [I-TIMER]
(24) [CHECK]
(25) [NAVI]
(26) [ENTER]
(27) [Fast Forward]
(28) [
4, 3, 2, 1
] (Cursor buttons)
(29) [PAUSE/SLOW]
(30) [REPEAT]
(31) [RESET]
To reset the tape counter (elapsed
time) to [0:00].
• The tape counter is automatically
reset to [0:00] when a video cassette
is inserted.
(32) [STATUS/ NAVI CHECK]
(33) [REC MODE]
(34) Cassette compartment
(35) VIDEO IN socket (AV 2)
(36) AUDIO IN sockets (AV 2)
(37) VCR display
A: Current time (a: It flashes only
when the current time is displayed.)
B: Tape counter
C: OTR Recording
D: Remaining tape time
• When you turn off the main unit, VCR
display will be dimmed.
(38) Infra-red Remote Control Receiver
window
(39) [REC/OTR]
(40) [STOP/EJECT]
(41) AC Input socket
(42) VIDEO IN socket (AV 1)
(43) VIDEO OUT socket
(44) RF IN socket
(45) AUDIO IN sockets (AV 1)
(46) AUDIO OUT sockets
(47) RF OUT socket
TV Operation using the remote
control
You can use [TV-ON/OFF]
(17)
*1
, [AV]
(2)
*2
, [VOL
N
]
(19)
*3
and [TV CH]
(18)
*4
on the remote control for your TV
operation.
(See page 4.)
*1
To switch the TV on from standby
mode (OFF) or vice versa.
On some TVs it is only possible to
switch the TV to standby mode (OFF)
with this button, but not on. In this
case, try to turn the TV on with one of
the following buttons:
[AV]
(2)
[TV CH]
(18)
*2
To select desired AV input on the TV.
*3
To adjust the volume of the TV.
*4
To select the desired programme
position (TV station) on the TV.
Note:
• You cannot operate TV channels with
[Numeric]
(3). When you want to
change the channel, press [TV CH]
(18) on TV operation part.
