Configuring the RAS with a Web browser 31
Model 2960/2996 RAS User Manual 3 • Configuring the RAS for operation
Note The default gateway has not been configured at this time. You can
access the web pages with a PC located on the same network as the
RAS or you must configure the default gateway using HyperTermi-
nal. Select k IP then 2 Default Gateway.
Configuring the RAS with a Web browser
This section describes configuring the following:
• User authentication
• Dial-in user configuration
• Default gateway
Opening the RAS Web Administration Pages
Do the following:
1. Connect the RAS to the LAN.
2. Start a Web browser session and go to the URL:
http://
where the is the IP address of the RAS entered in Step 8.
3. When the username and password window displays, type superuser as the username and password,
then press . The Administration Pages Home window appears (see figure 18 ).

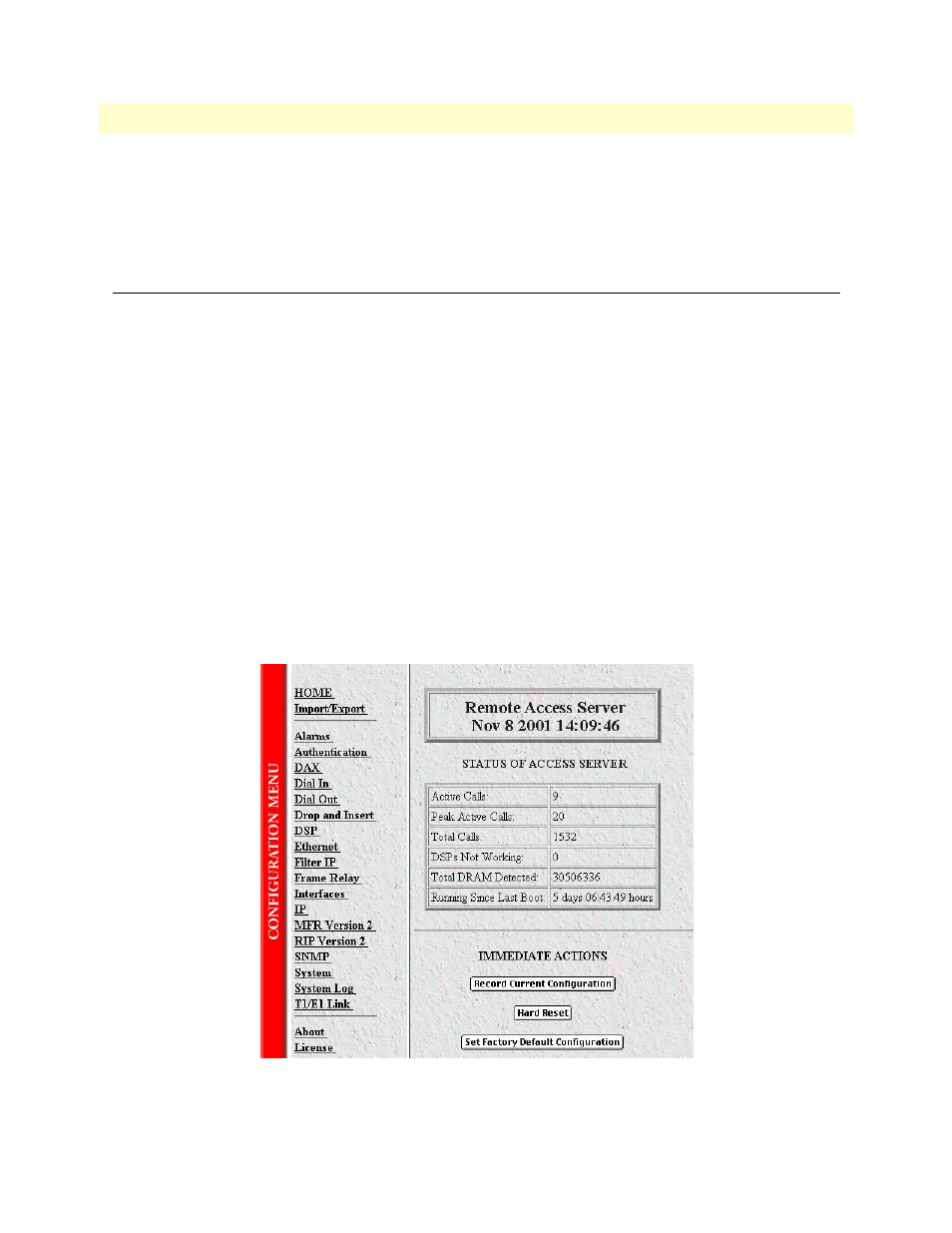

Figure 18. Home page
