T1 PRI 59
SmartNode 4950 Getting Started Guide C • Cabling
T1 PRI
The T1 PRI is usually connected to a PBX or switch—local exchange (LE). Type and pin outs of these devices
vary depending on the manufacturer. In most cases, a straight-through RJ-45 to RJ-45 can be used to connect
the PRI with a PBX. A cross-over cable is required to connect to an NT device, as illustrated in
figure 14 on
page 59.

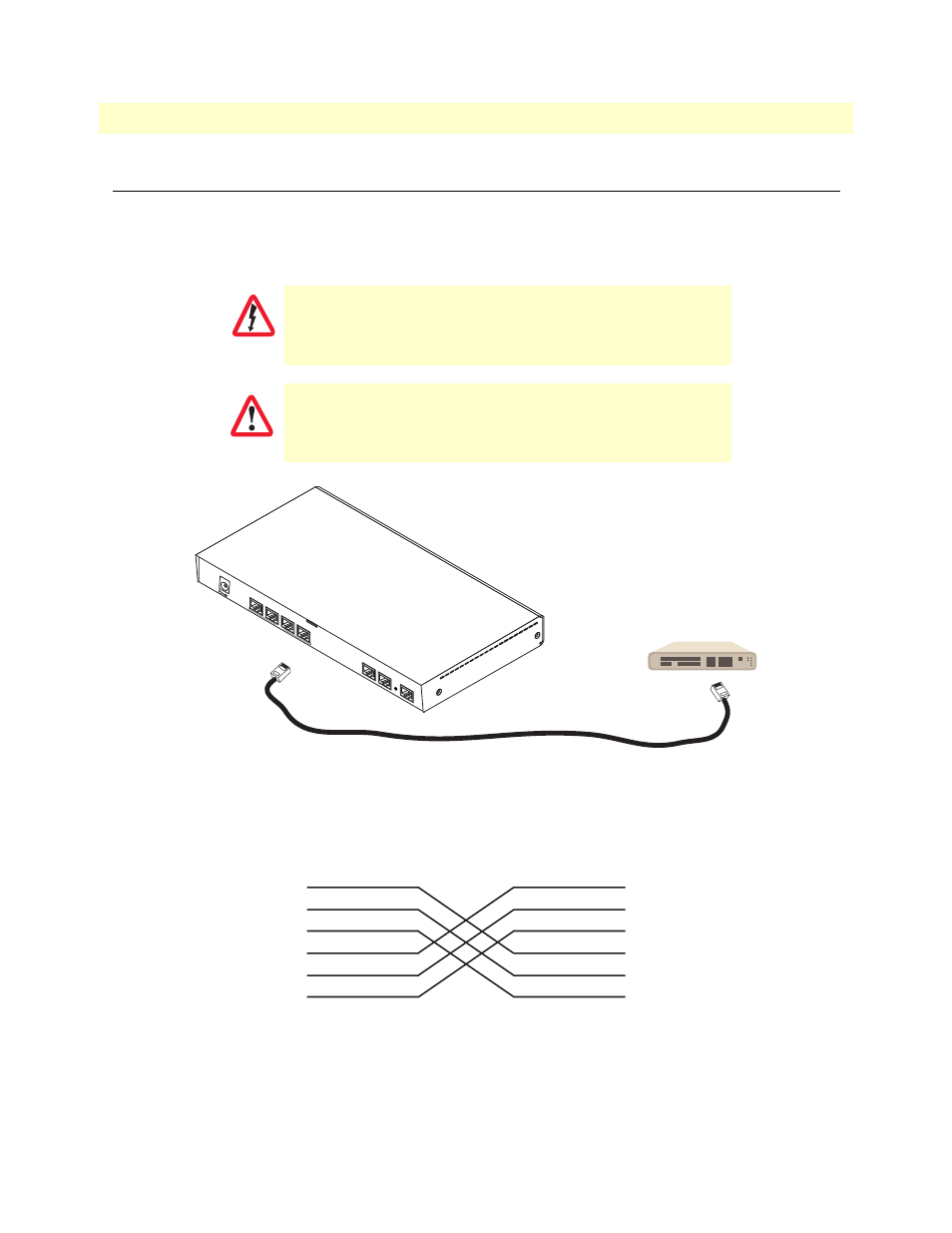

Figure 14. Connecting a T1 PRI port to an NT device
Figure 15. T1 PRI crossover cable
Hazardous network voltages are present in the PRI cables. If you detach the
cable, detach the end away from the SmartNode or interface card first to avoid
possible electric shock. Network hazardous voltages may be present on the
device in the area of the PRI port, regardless of when power is turned OFF.
To prevent damage to the system, make certain you connect the
PRI cable to the PRI port only and not to any other RJ-45 socket.
WARNING
WARNING
Cross-over cable
NT
RS-232
Console
ET H 0/0
ETH 0/1
Reset
0/0
0/1
0/2
0/3
T1/E1
RJ-45, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C RJ-45, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C
1
2
3
4
5
6
7
8 1
2
3
4
5
6
7
8
*N/C = No connection*
