DATE PRINTED: 2/8/05 Revision Date: 02/01/05 PI-1010A Page 16
Preparation And Assembly

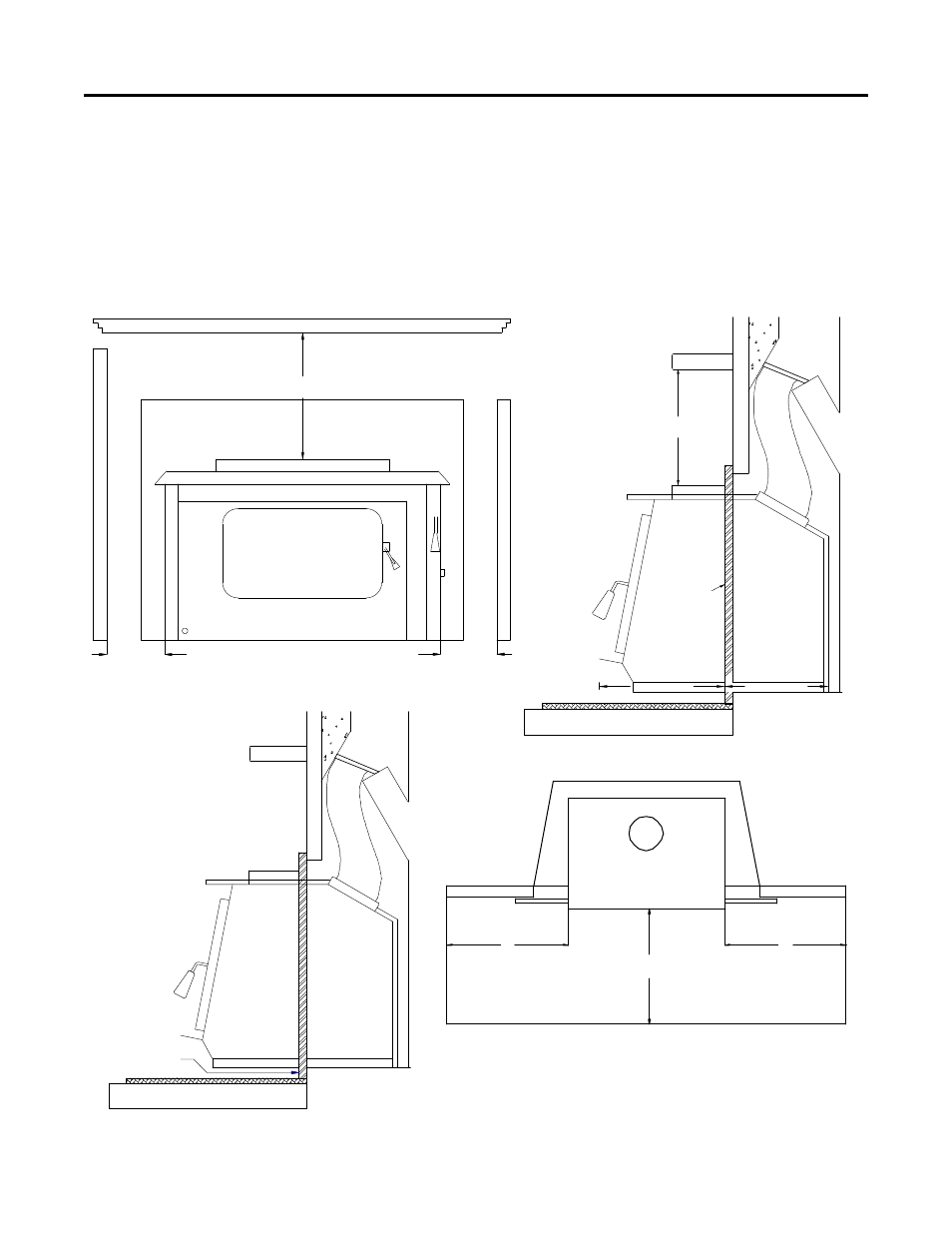

Minimum Clearances To Combustibles (Measured from Insert/Stove Sides and Top)
COMBUSTIBLE
22" (559 mm)
SHROUD
13 1/4"
336 mm
12 1/2 "
317 mm
Mantle Clearance
7" (178 mm)
22" (559 mm)
7" (178 mm)
A A
B
A = 8" (203 mm) measured from each side
of the fuel loading and ash removal openings
B = 16" (406 mm) in USA
B = 18" (457 mm) in Canada
Floor Protection
COMBUSTIBLE
Minimum
1" (25.4mm)
Clearance to
Combustible
Hearth Clearance
FLOOR PROTECTION
A non-combustible floor protection is required for all installations extending 16" (in
USA) or 18" (in Canada) in front of the door and extending 8" to either side of the door
opening. In addition to the above requirement that portion of the insert which extends
out in front of the fireplace hearth must have a minimum of 1" vertical distance to any
combustible material
