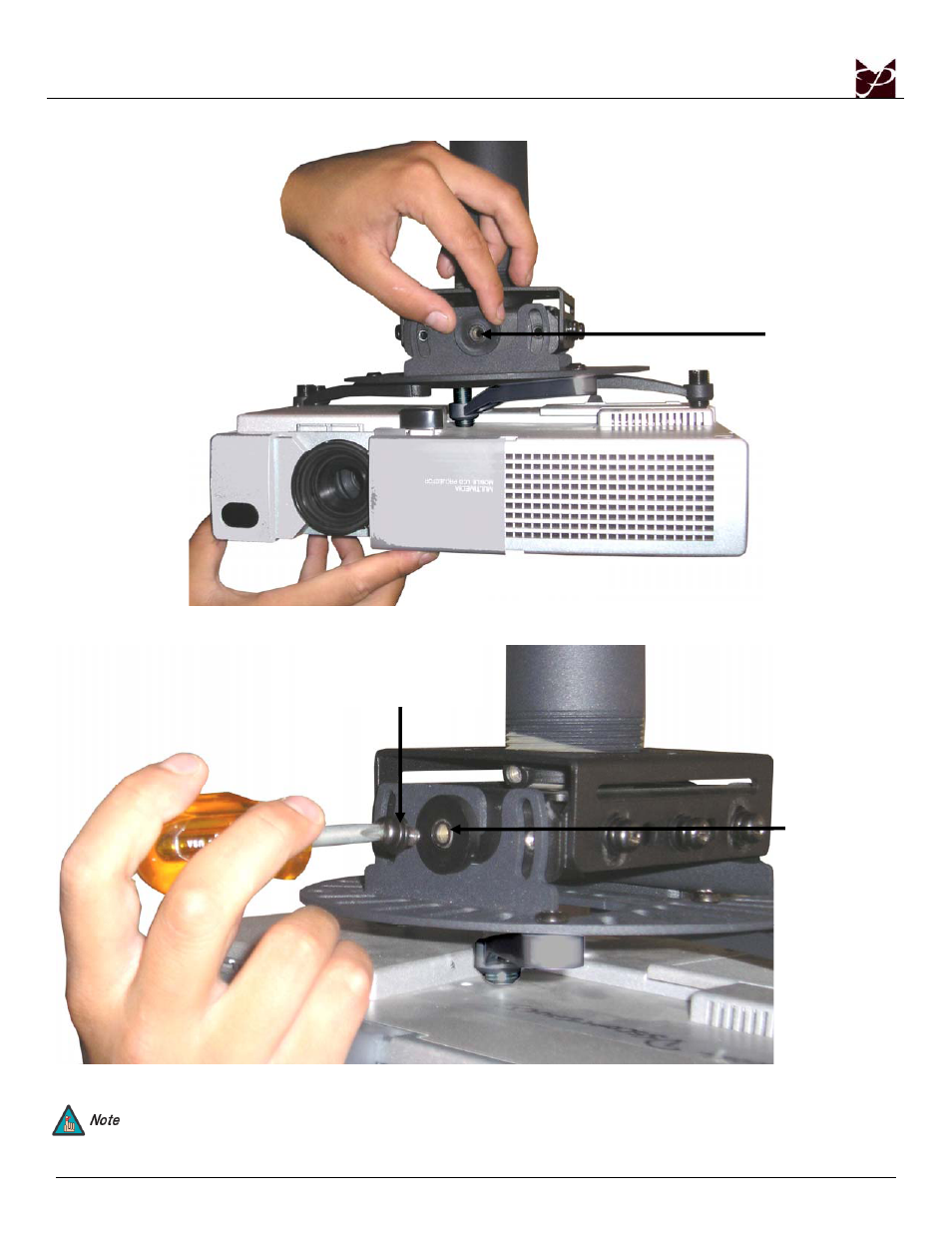

4. Place the nylon spacer over the hinge pin.
5. Secure the PDS-PLUS to the PDS Base Box with two (2) M6 x 12mm Phillips Head screws w/Integrated Washers (one on each
side).
If using the optional Lock-It™ Security Hardware Pack, secure the PDS-PLUS to the PDS Base Box with two (2)
M6 x 12mm Security Head screws and two (2) flat washers (one on each side).
Hinge Pin and
Nylon Spacer
Hinge Pin Nylon
Spacer and Washer
M6 x 12mm Phillips
Head Screw
w/Integrated Washer
