Single Mounting Point Installation
If your projector has only one mounting point, a ¼-20 x 5/16”
screw must be used to attach the mount to the projector. Please
refer to the following three steps:

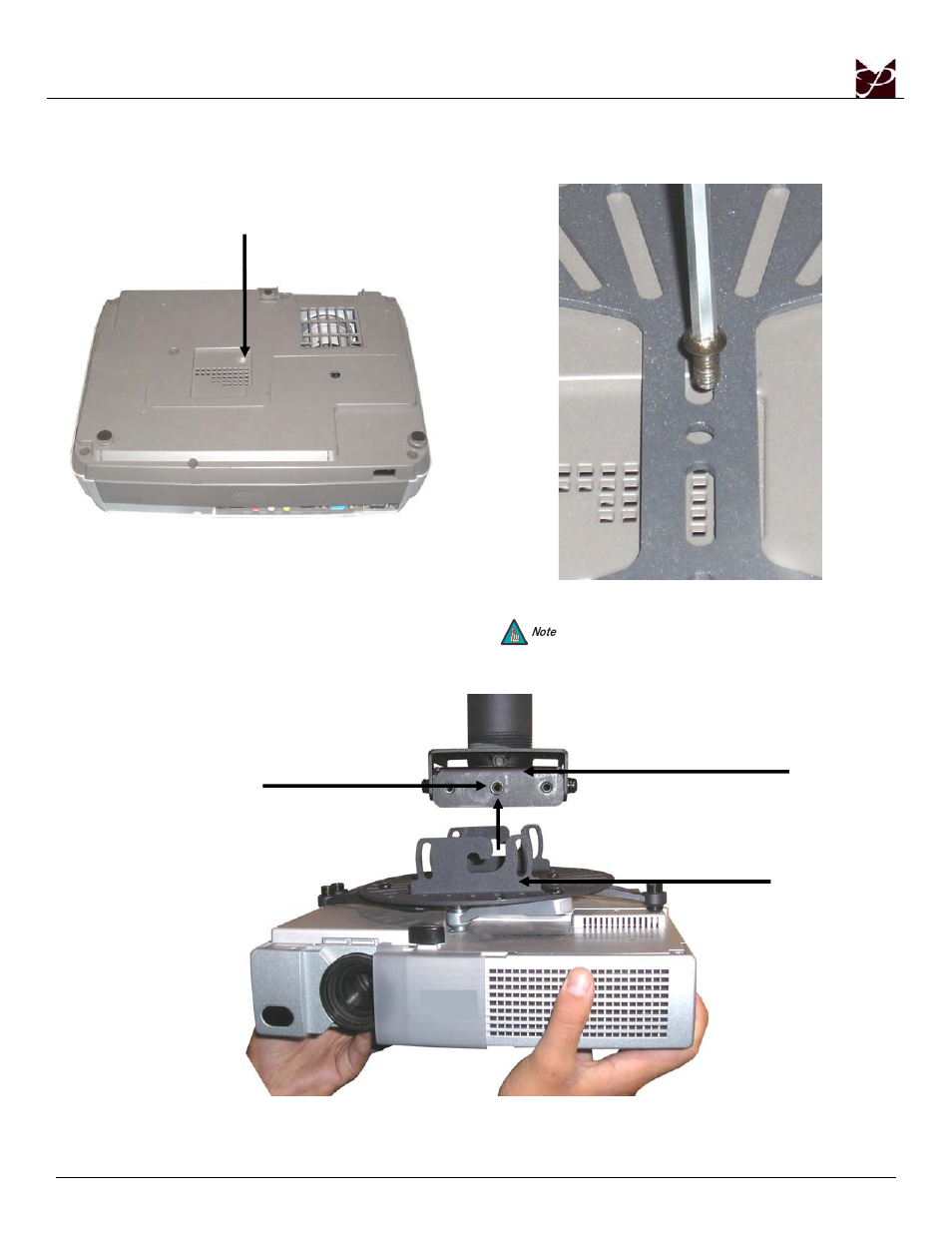

1. Determine where the mounting point is located.
2. Place the projector plate over the mounting point.
3. Insert the ¼-20 x 5/16” security screw.
This screw will use a standard hole when mounting.
Attaching the PDS-PLUS Base
1. Raise the projector (with the mounting bracket attached) and hook the projector bracket over the hinge pins.
Mounting Point
Hinge Pin
PDS-PLUS
Base
PDS Base Box
