Planet Technology WAP-1966 - Manual (Page 25)

- 20 -

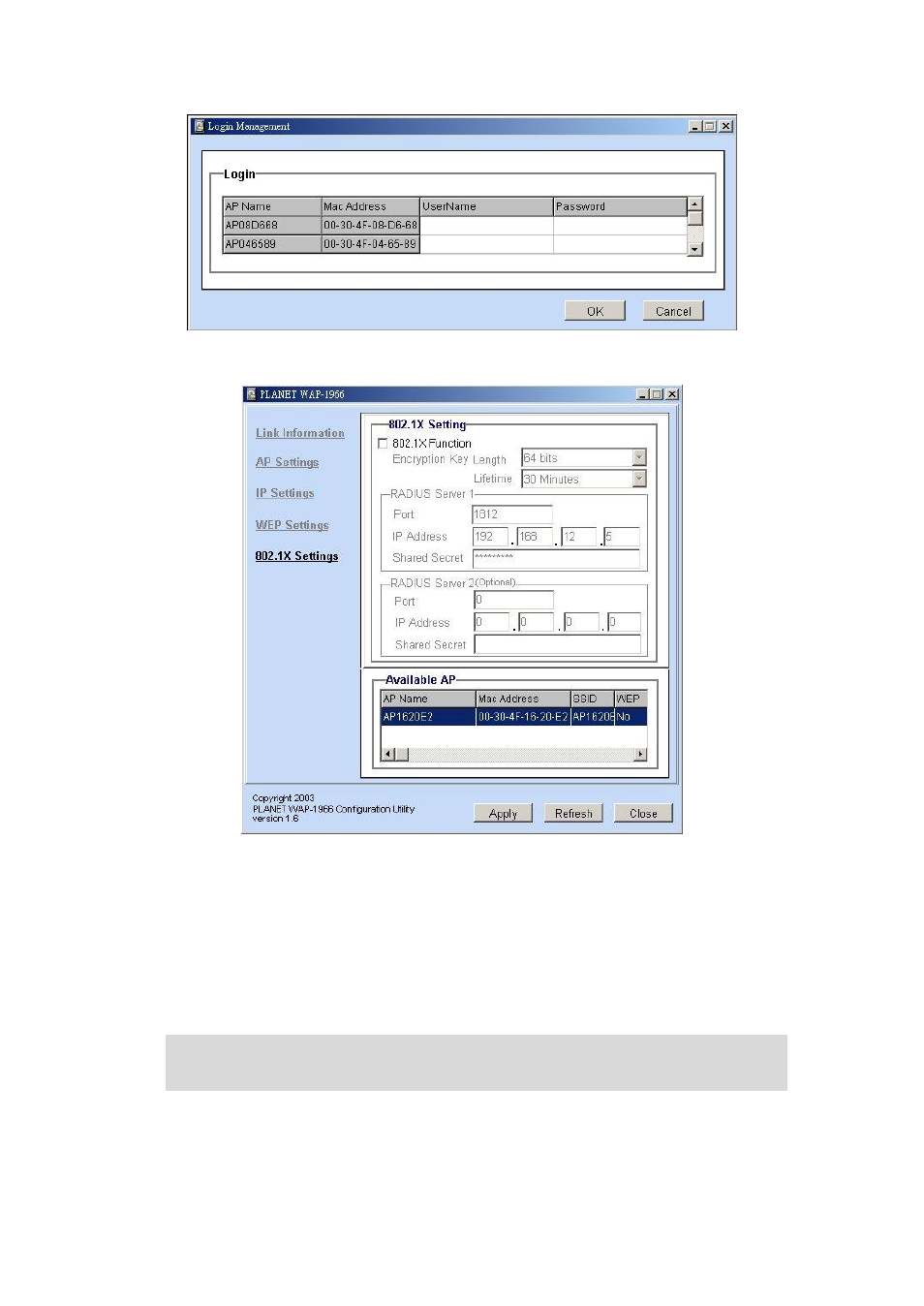

3.2.2.5 802.1x Settings
802.1X Function: Enable or disable 802.1X authentication of WAP-1966.
Encryption Key: Select one of the Encryption key length options. It should be set the same length
as WEP key. Select one of the Encryption key lifetime options. Once the lifetime expires, the
Encryption key will be renewed by RADIUS server.
RADIUS Server 1: Enter the IP address, communicate port number, and shared secret key of your
primary RADIUS server.
RADIUS Server 2: Enter the IP address, communicate port number, and shared secret key of your
secondary RADIUS server.
Note: As soon as 802.1X authentication is enabled, all the wireless client stations that are connected
to the AP currently will be disconnected. The wireless clients must be configured manually to
authenticate themselves with the RADIUS server to be reconnected.
