Connecting Up 02
13
En
Taiwanese model only:

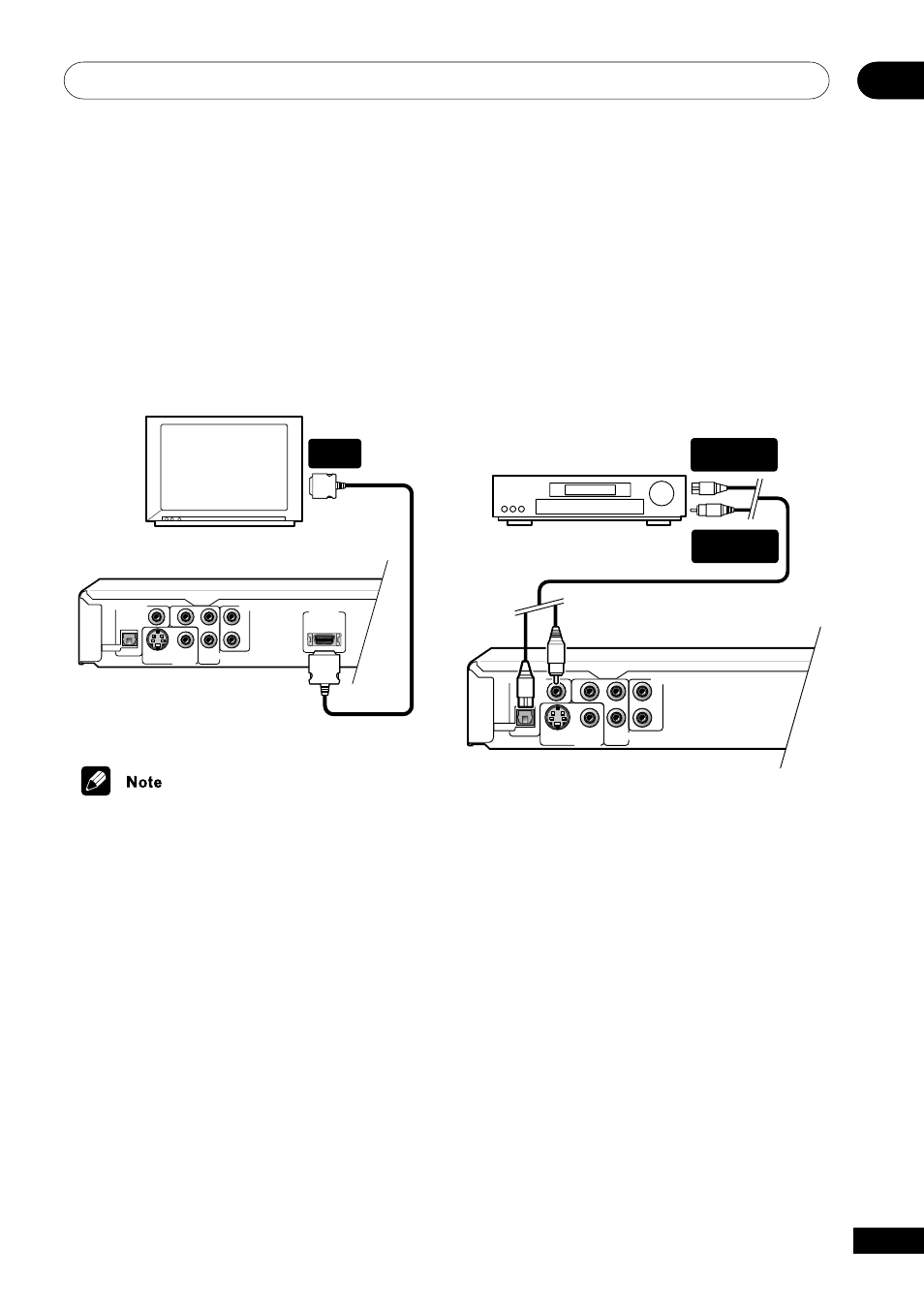

Connecting using the D1 video
output
If your TV is equipped with a D type video
input, you can use a D video cord to connect
this player to your TV.
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
OPTICAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
D1 VIDEO OUT
TV
D VIDEO
INPUT
• The D video output on this player
outputs only NTSC interlaced video.
Connecting to an AV
receiver
To enjoy multichannel surround sound you
need to connect this player to an AV receiver
using a digital output. There are both coaxial
and optical digital jacks; use whichever is
convenient.
In addition to a digital connection, we
recommend also connecting using the
stereo analog connection.
You’ll probably also want to connect a video
output to your AV receiver. You can use any
of the video outputs available on this player
(the illustration shows a standard (compos-
ite) connection).
1 Connect one of DIGITAL OUT jacks on
this player to a digital input on your AV
receiver.
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
OPTICAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
AV receiver
DIGITAL IN
OPTICAL
DIGITAL IN
COAXIAL
This enables you to listen to multichannel
surround sound.
For an optical connection, use an optical
cable (not supplied) to connect the OPTICAL
DIGITAL OUT jack to an optical input on your
AV receiver.
For a coaxial connection, use a coaxial cable
(similar to the supplied video cable) to
connect the COAXIAL DIGITAL OUT jack to a
coaxial input on your AV receiver.
