8
English
3140 115 30041
Preparations

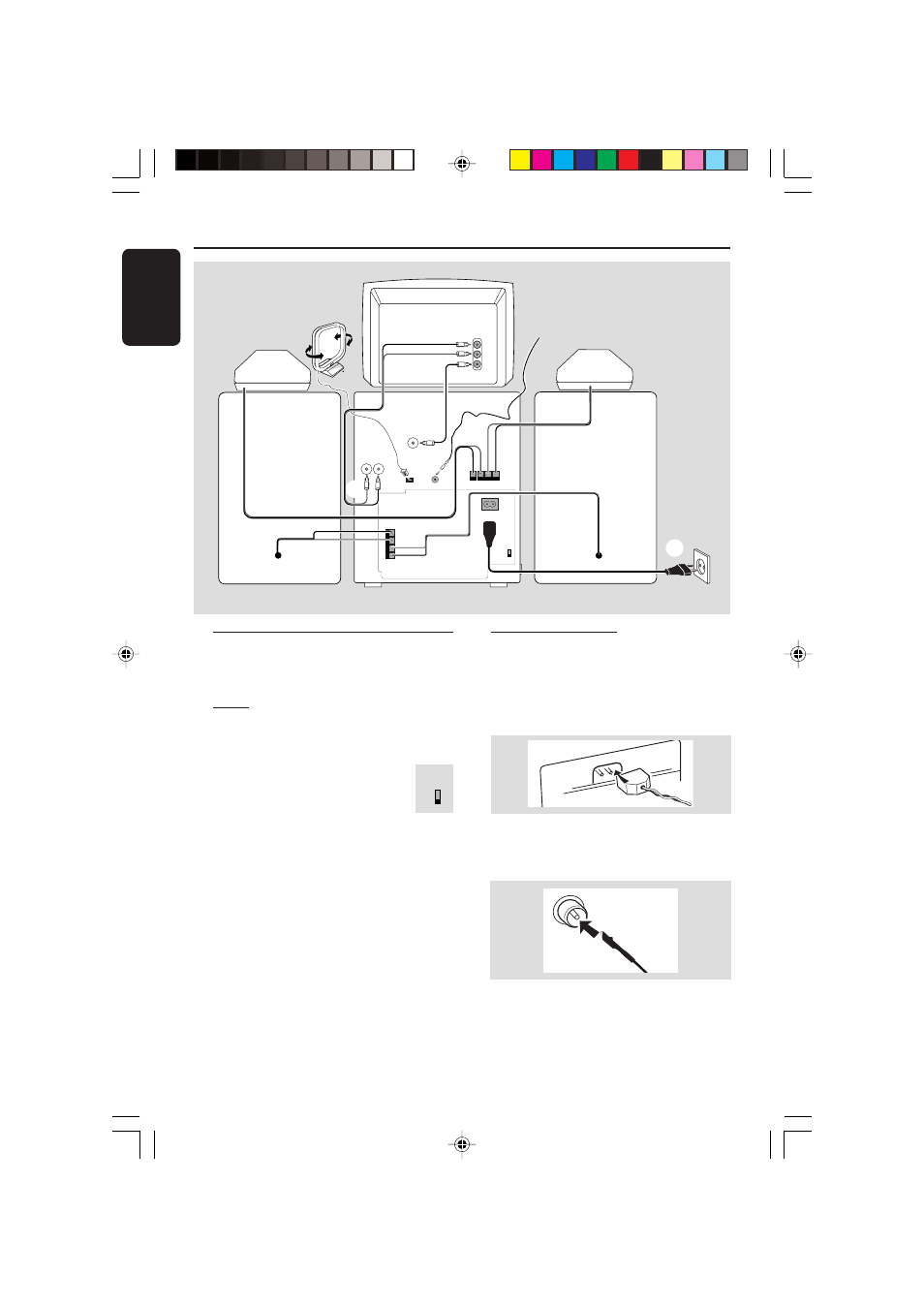

Rear Connections
The type plate is located at the rear of the
system.
A
Power
Before connecting the AC power cord to the
wall outlet, ensure that the following are done;
– If your system is equipped with a
Voltage Selector, set the VOLTAGE
SELECTOR to the local power line
voltage.
– All other connections have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
B
Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
FM Antenna
● For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.
SPEAKERS 6 Ω
R
+
–
L
–
+
SUBWOOFER
OUT
AUX/
CDR
IN
AM ANTENNA
AC
MAINS
speaker
(right)
speaker
(left)
AC power cord
FM wire
antenna
A
B
C
FM ANTENNA
VOLTAGE
SELECTOR
110V-
127V
220V-
240V
left
surround
right
surround
REAR SURROUND
R + – L + –
C
VIDEO
IN
Television
L
R
AUDIO
OUT
AM loop
antenna
VIDEO OUT
(CVBS)
D
E
VOLTAGE
SELECTOR
110V-
127V
220V-
240V
