Jet 10 Ultra/RevA/Apr04 www.pridemobility.com 25
V I . C O M F O R T A D J U S T M E N T S
3. Turn the setscrew clockwise to lower the front of the
foot platform.
Controller Position
You can position the controller for either left-hand or right-hand use.
WARNING! Do not place the controller cable
so that it can be pinched in the seat frame
or the power base frame.
To change the controller position:
1. Turn the rear shroud fasteners one-quarter turn. See figure 5.
2. Remove the rear shroud.
3. Unplug the motor connectors, the charger inhibit, and the
battery connector from the power pod. See figure 6.
4. Cut the wire tie(s) that attaches the controller cable to
the armrest.
5. Flip up the armrest and loosen the setscrew. See figure 18.
6. Slide the controller out of the armrest.
7. Loosen the setscrew in the other armrest.
8. Place the controller in the other armrest.
9. Tighten the setscrew to secure the controller.
10. Use a wire tie to secure the controller cable to the armrest.
11. Plug the motor connectors, the charger inhibit, and the
battery connector into the power pod. See figure 6.
12. Reinstall the rear shroud and tighten the fasteners.
Swing-away Footrests
Swing-away Footrests (SFRs) enable you to rotate the footrests
to the side before you transfer onto or off or your power chair.
To rotate the SFRs:
1. Push in the release lever. See figure 19.
2. Rotate the SFRs.
To adjust the SFR length:
1. Remove the two adjustment screws from the side of each
footrest extension. See figure 19.
2. Slide the footrest up or down to the desired length.
3. Reinstall the two adjustment screws.
Elevating Leg Rests (Optional)
Elevating Leg Rests (ELRs) offer an infinite range of adjustment
for the leg angle and a footrest adjustment range of 12–19 in.

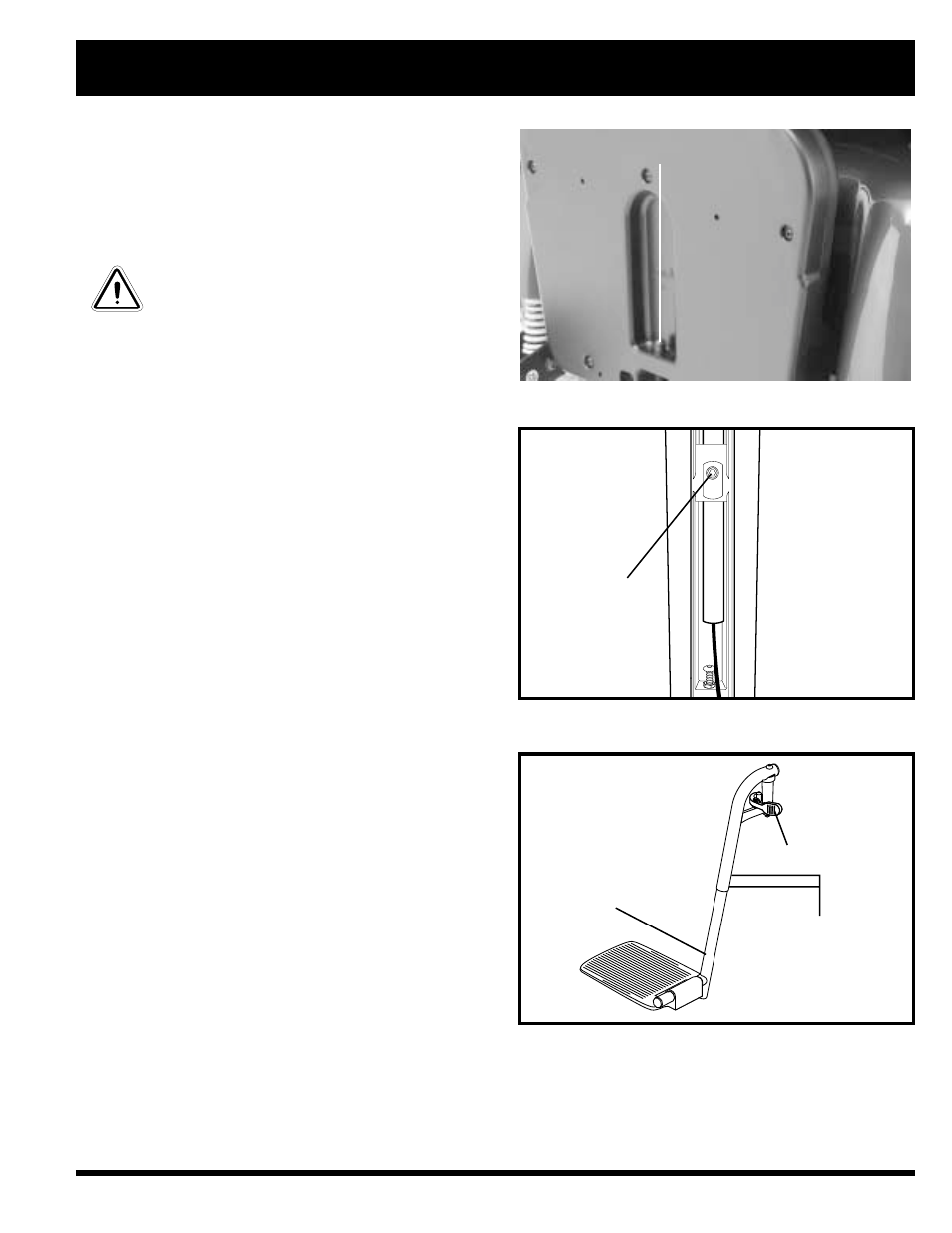

Figure 18. Underside of Armrest
SETSCREW
Figure 19. Swing-Away Footrests
FOOTREST
ADJUSTMENT
SCREWS
FOOTREST
EXTENSION
Figure 17. Bottom of Footrest
SETSCREW
SFR RELEASE LEVER
