24 www.pridemobility.com Jet 10 Ultra/RevA/Apr04
To change the armrest width:
1. Locate the two armrest knobs on each side of the
armrest receiver bracket. See figure 14.
2. Loosen the knobs.
3. Slide the armrests in or out to the desired width.
4. Tighten the knobs.
Armrest Height
To change the armrest height:
1. Loosen the setscrew on the armrest. See figure 14.
2. Raise or lower the armrest to the desired height.
3. Tighten the setscrew to secure the armrest.
Armrest Angle Adjustment
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to
the floor. See figure 15.
2. Loosen the jam nut.
3. Turn the adjusting screw clockwise to lower the front
of the armrest, or turn the adjusting screw counterclock-
wise to raise the front of the armrest.
4. Tighten the jam nut to lock the adjusting screw into place.
Foot Platform Height
The foot platform height is easily adjusted to different heights
in 1/2-in. increments.
To raise or lower the foot platform:
1. Remove the fasteners from the foot platform bracket.
See figure 16.
2. Raise or lower the foot platform to the desired height.
3. Reinstall the fasteners into the foot platform bracket
and tighten.
Foot Platform Depth
To adjust the foot platform depth:
1. Remove the fasteners from the foot platform bracket.
See figure 16.
2. Move the foot platform in or out to the desired depth.
3. Reinstall the fasteners into the foot platform bracket
and tighten.
Foot Platform Angle
You can adjust the angle of the foot platform with a hex
key. See figure 17.
To adjust the foot platform angle:
1. Flip up the foot platform and locate the setscrew.
2. Turn the setscrew counterclockwise to raise the front of
the foot platform.

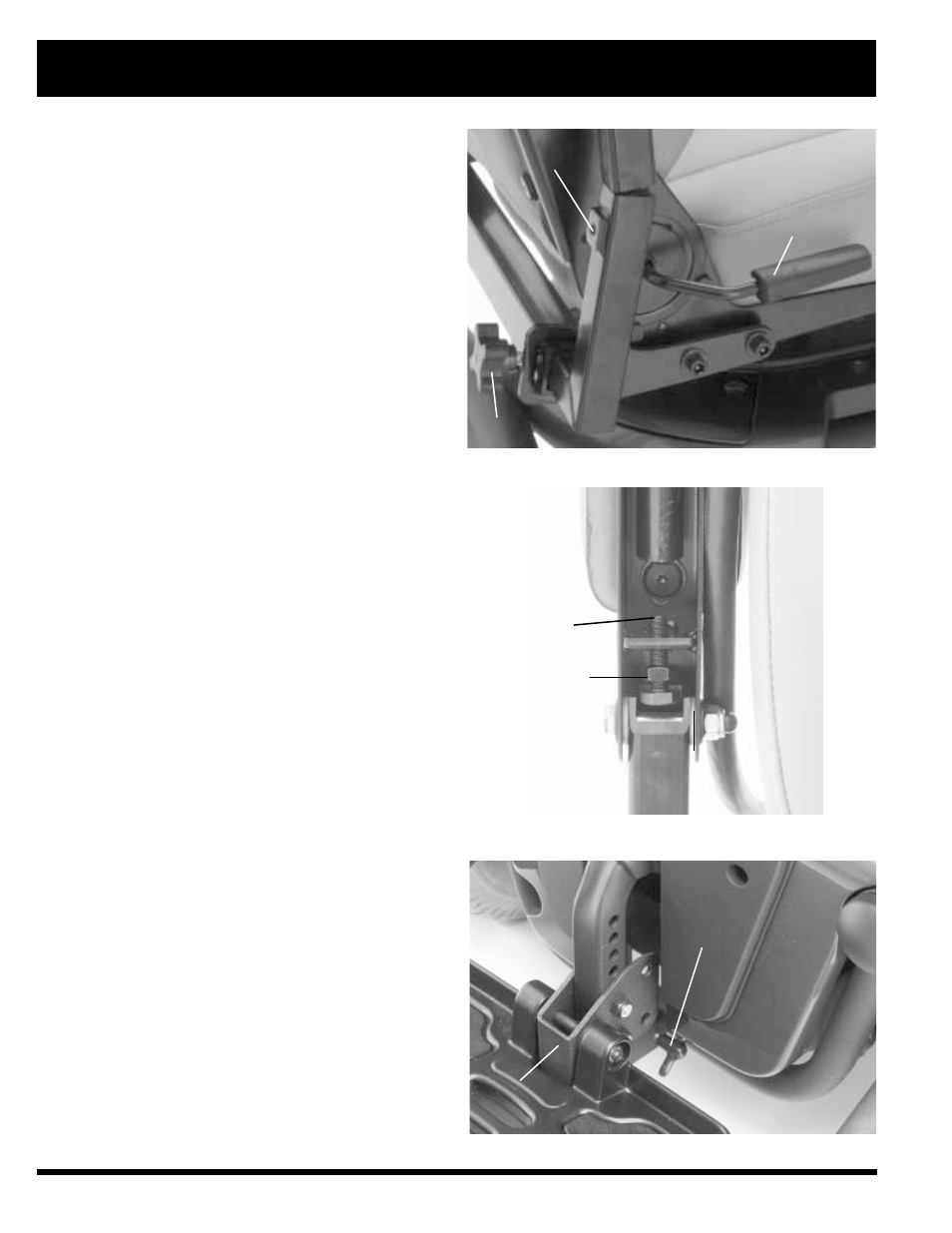

V I . C O M F O R T A D J U S T M E N T S
ARMREST KNOB
Figure 14. Seatback Angle Adjustment
SETSCREW
SEATBACK
RELEASE LEVER
Figure 15. Armrest Angle Adjustment
JAM NUT
ARMREST ANGLE
ADJUSTING
SCREW
FOOT
PLATFORM
BRACKET
FOOT
PLATFORM
RETAINING PIN
Figure 16. Foot Platform Adjustment
