Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that
reside on the network.
DISTRIBUTED BY:

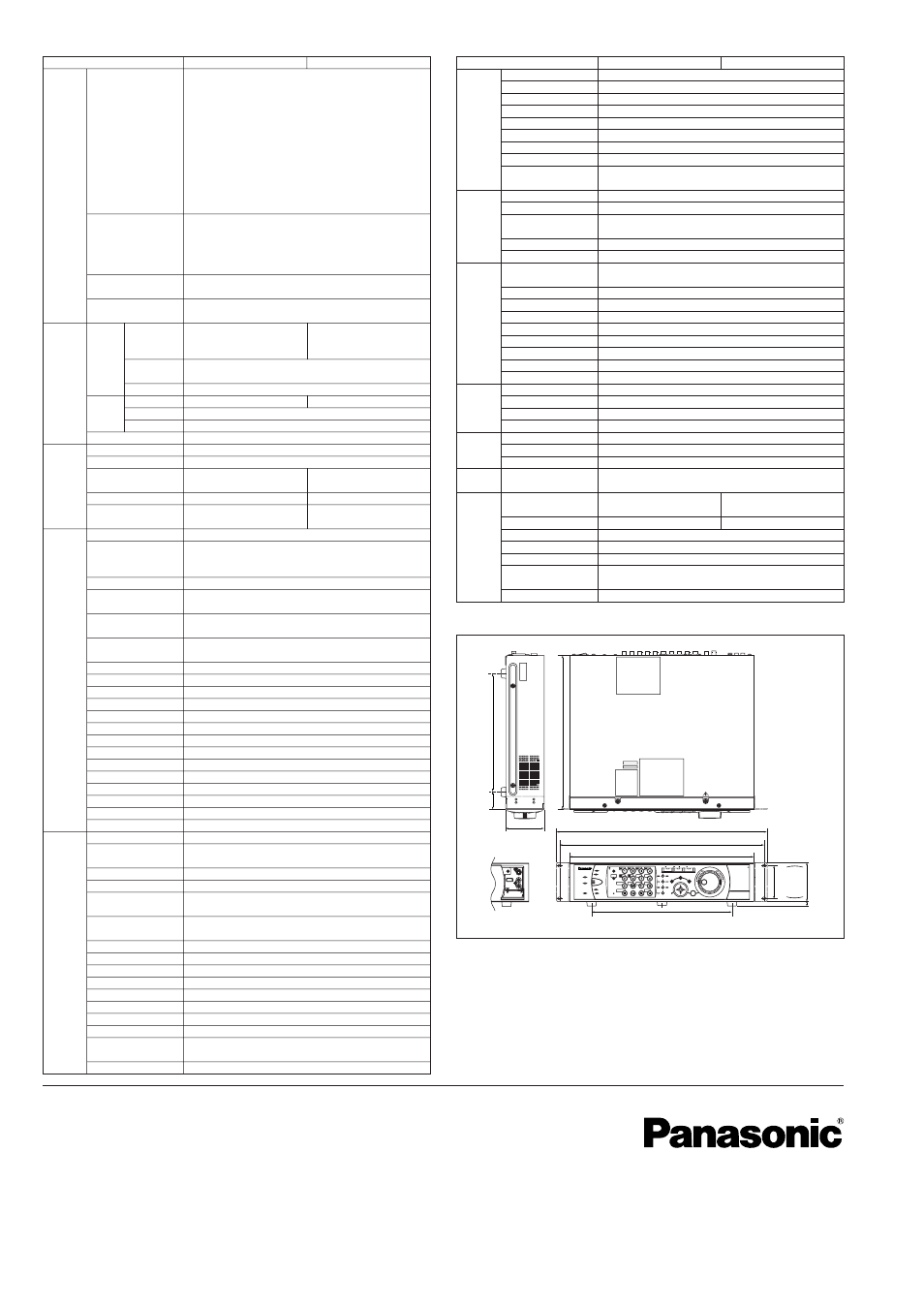

Specifications
TV System NTSC PAL
Audio / Video Inputs WJ-HD316A:
Video IF 16x 1.0 V [p-p] / 75 Ω composite video inputs (BNC)
with 8x active loop through outputs (1 ~ 8 CH) and
8x auto termination loop through (9 ~ 16 CH).
8x multiplexed control data (1 ~ 8 CH).
Cascade IN: 1x 1.0 V [p-p] / 75 Ω composite video signal (BNC)
WJ-HD309A:
9x 1.0 V [p-p] / 75 Ω NTSC composite video inputs (BNC)
with 6x active loop through outputs (1 ~ 6 CH) and
3x auto termination loop through (7 ~ 9 CH).
6x multiplexed control data (1 ~ 6 CH).
Cascade IN: 1x 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Video Outputs Monitor 1: 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Monitor 2 / Cascade: 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Monitor (VGA): RGB output (15 pin D-sub), Same video as Monitor 2
S-Video (front): Same video as Monitor 2
Video output (front RCA): Same video as Monitor 2
Audio Inputs WJ-HD316A: 4x –10 dBV, 10 K Ω (RCA) (1 ~ 4 CH)
WJ-HD309A: 4x –10 dBV, 51 K Ω (RCA) (1 ~ 4 CH)
Audio Outputs Rear: 1x –10 dBV, 600 Ω, Unbalanced (RCA),
Front: 1x RCA (same signal as rear)
Audio / Recording Image Frame (3D ON/OFF) (720 x 480 pixels), Frame (3D ON/OFF) (720 x 576 pixels),
Video Resolution Field (720 x 240 pixels), Field (720 x 288 pixels),
Format SIF (360 x 240 pixels) SIF (360 x 288 pixels)
Video Proprietary: SFA, FQA, NQA, EXA, SFB, FQB, NQB, EXB,
Compression Independent quality for each camera
Color Mode Fine: 4 : 2 : 2, Standard: 4 : 1 :1, B/W
Network Image Resolution Field (720 x 240 pixels) Field (720 x 288 pixels)
Video Compression Proprietary: FQB
Color Mode Standard: 4 : 1 : 1
Audio Compression Method PCM 11.025 kHz, 16 bit (Monaural)
Recording Recording Mode Manual, Event, Schedule, Emergency, External timer
Schedule REC Mode 4 programs, 6 time zone/day, Independent setup for each day of the week.
Frame Rate / Camera 0.1 ~ 60 ips (Depending on the image size), 0.1 ~ 50 ips (Depending on the image size),
Independent frame rate for each camera Independent frame rate for each camera
Frame Rate Total 120 ips at SIF, 60 ips at Field, 30 ips at Frame 100 ips at SIF, 50 ips at Field, 25 ips at Frame
Pre-Alarm Recording Up to 60 images, Up to 60 min. Up to 50 images, Up to 60 min.
with exclusive HDD in the HDE300 with exclusive HDD in the HDE300
Main Unit Camera Control Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode.
Functions REC / Playback Control REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record,
Next Record, Prev Image, Next Image, A-B Repeat, Goto Date,
Goto Last (5 sec. ~ 5 min.), Text display, Jog/Shuttle
Search Mode Search criteria: Time date, Event type, Camera number, Text ON/OFF.
Multiscreen Mode Spot / Quad (4 patterns) / 6 / 7 / 9A / 9B / 10 / 13 / 16 / (Live / Playback),
Spot Sequence / Quad Sequence (Live), Dwell time 1 ~ 30 sec.
Copy to External Media Recorded data of selected cameras and time date
range can be copied to external CD, DVD or HDD
Copy to Copy Partition Recorded data of selected cameras and time date range
can be copied to the COPY partition.
Camera Title OSD, Alphanumeric, Up to 16 Characters.
Clock Display OSD or Image embedded, Time: 12H / 24H, Date: 3 formats
Alarm Control Reset, Suspend
Digital Zoom 2x, 4x
Text Attachment Free comment can be attached for each record. Up to 200 characters
System Log Operator access (100), Network error (1,000), Error (100), Event (750)
System Setup OSD setup menu in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
OSD Language English, French, Italian, Spanish, German, Russian, Chinese, Japanese
VMD 4 areas, 3 sensitivity levels, with vector and duration setup
Video Loss Detection Yes
User Registration Up to 32 users (Same as NW users)
User Level Admin and 3 user levels (programmable, same as NW user levels)
Time Synchronization Terminal (Master or Slave), NTP (Client)
Summer Time User definable (Menu setup required)
Browser Camera Control Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode.
GUI REC/Playback Control REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record,
Prev Image, Next Image, Goto Date, Goto Last (5 sec. ~ 5 min.), Text display
Search Mode Search criteria: Time date, Event type, Camera number, Text ON/OFF.
Display Mode Spot / Quad (A, B, C, D) / 9 (A, B) / 16 (Live, Playback), Spot Sequence (Live)
Image Download Recorded data of selected camera and time range (up to 99 min 59 sec.)
can be downloaded to a PC. Viewer software can be downloaded separately.
Copy to Copy Partition Recorded data of selected cameras and time date range
can be copied to the COPY partition.
Camera Title On the browser, Up to 16 Characters.
Clock Display On the browser or Image embedded. Time: 12H / 24H, Date: 3 formats
Alarm Control Reset, Suspend
Digital Zoom Up to 4 times
Text Attachment Free comment can be attached for each record. Up to 200 characters
System Log Operator access (100), Network error (1,000), Error (100), Event (750)
System Setup Setup page in English
GUI Language English
Supported OS Microsoft ® Windows ® 2000 Professional SP4, Windows ® XP Home/Professional SP2
English, German, French, Italian, Spanish.
Supported Browser Microsoft ® Internet Explorer ® 6.0 SP1, SP2
Appearance
TV System NTSC PAL
Network Network Interface 10Base-T / 100Base-TX (RJ-45) x1
Bandwidth Limitation 32 Kbps ~ Unlimited
Supported Protocol TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, BOOTP
E-mail Upon Alarm or Warning
No. of Client at a Time 8
User Registration Up to 32 users (Same as main unit users)
User Level Admin and 3 user levels (programmable, same as main unit user levels)
Partitioning User - Camera (View only, View & Control, No Access)
Security Method User authentication (ID 32 digit, PW 32 digit),
Host authentication (IP address), Alteration detection
Alarm / Alarm Source 16x Terminal inputs, 16x Camera alarm, PS·Data
Event Event Mode Alarm / Activity / OFF
Alarm Action Event recording, e-mail notification, Alarm message, Camera positioning,
FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED.
Alarm Control Reset, Suspend
Alarm Log 750
External IF Alarm 16x Alarm inputs (25 pin D-sub, Make contact, N.O./N.C.) 16x Alarm outputs (25
pin D-sub, Open collector, N.O./N.C) 1x Alarm reset input, 1x Alarm suspend input
EXT Storage 1x High-speed serial interface (USB type connector) for WJ-HDE300 Extension Unit.
Error / Warning Disk space warning, HDD error, System error, Camera error
Recording Emergency recording input, External recording mode input.
Time Adjustment Time adjustment input/output
Controls Sequence switching signal input. Power outage detection output, Shut down ready output
PS-Data (RS-485) Controller 2x RJ-11
RS-485 Camera 2x RJ-11
Copy 2x High-speed serial interface (USB type connector) for external copy device (Front / Rear)
HDD Type 1x 3.5-type 250GB HDD (Factory default), Up to 2x 500GB HDDs (Specific model)
Maximum Capacity 15 TB (with 7x WJ-HDE300 extension units, 4x 500 GB HDDs installed in each unit).
RAID RAID 5 supported (with WJ-HDE300)
Partitioning Normal / Event / Copy
Viewer REC / Playback Control Play, Rev Play, Pause, FF, REW, Prev Image, Next Image,
Software Additional Functions Alteration detection, Save as JPEG/BMP, Two times zoom, Print
Supported OS Same as Browser GUI
Admin Supported OS Same as Browser GUI
Software
General Safety Standard UL (6500 Edition2), FCC (Part15 ClassA), CE (EN55022, EN61000-3-2, EN55024,
Specifications C-UL (E60065), DOC (ICES003 ClassA) ClassB), SEMKO approved.
Power Source 120 V AC, 60 Hz 220 ~ 240 V AC, 50 Hz
Power Consumption 75 W
Ambient Operating Temperature +5 °C ~ +45 °C (41 °F ~ 113 °F)
Ambient Operating Humidity Less than 85 % (without condensation)
Dimensions 420 mm (W) x 88 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)]
(excluding rubber feet and projections)
Weight 9.5 kg (21 lbs.)
270(10-5/8")
40(1-9/16")
88(3-7/16")
420(16-9/16")
320(12-5/8")
480(18-7/8")
465(18-5/16")(Mounting Pitch)
88(3-7/16")
10.5
(7/16")
76(2") Mounting
Pitch
350(13-3/4")
• All TV pictures/menu are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• Product pictures shown in this catalog are all NTSC models.
Unit: mm (inches)
