CONEXIONES
55
Espa
ñ
ol
Sistema de control en bus, CINEMA LINK

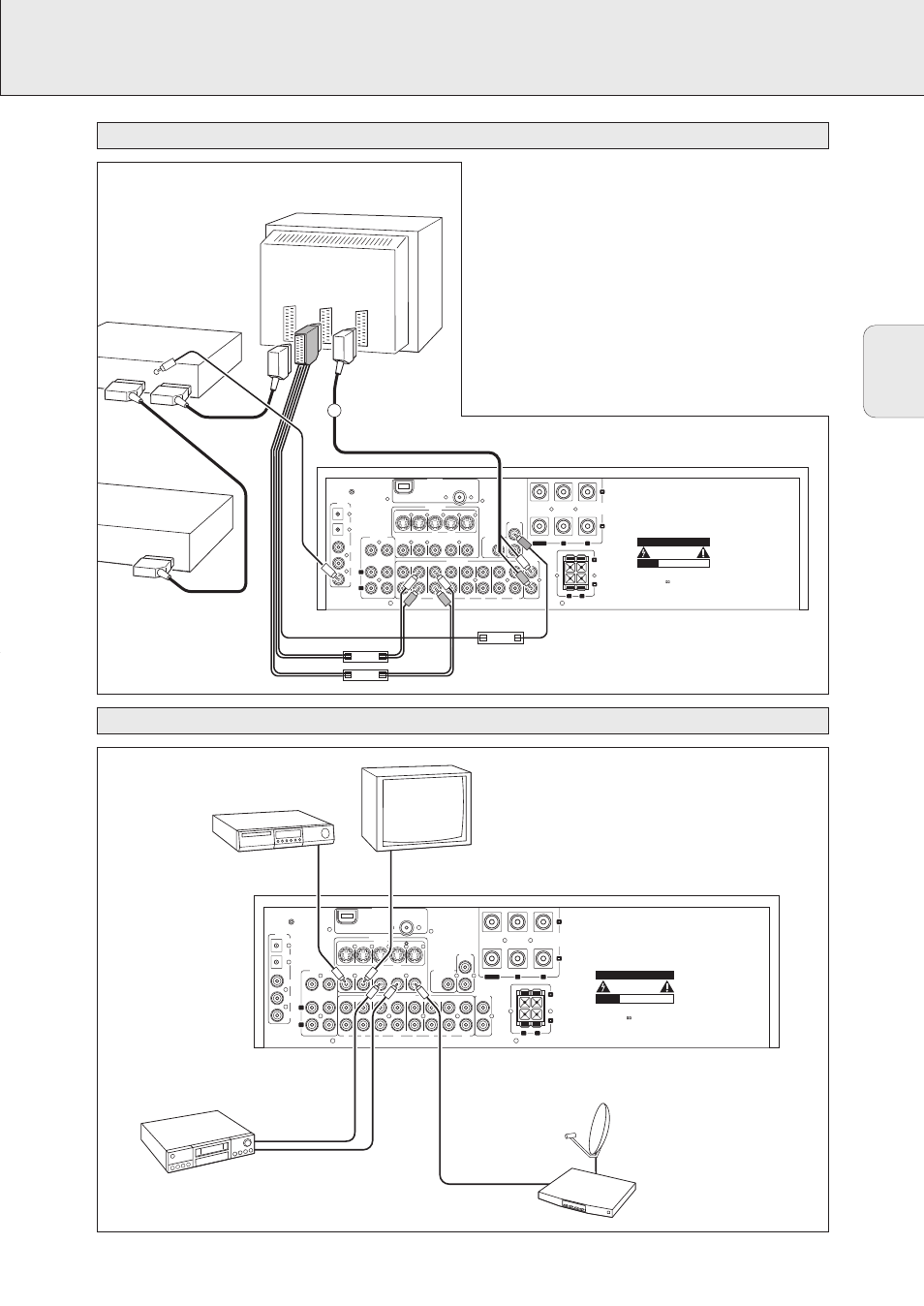

Conexiones de vídeo
Si el receptor y la TV Philips (o incluso mejor, añadiendo un
reproductor de vídeo o de DVD Philips) con Cinemalink están
conectados con el control de barra del sistema CINEMA
LINK, se ofrecen beneficios extras para el sistema:
– Cuando inicie una fuente, el sistema selecciona
automáticamente esa entrada.
– Se puede controlar el sistema por medio de la pantalla del
televisor. Independientemente del idioma del televisor, Vd.
puede elegir el idioma que prefiera.
– El televisor puede hacer las veces de altavoz central del
sistema, haciendo innecesario el uso de un altavoz central.
(El cable A debe comprarse aparte).
– Puede poner en espera todo el sistema pulsando el botón
de puesta en espera en el mando a distancia.
