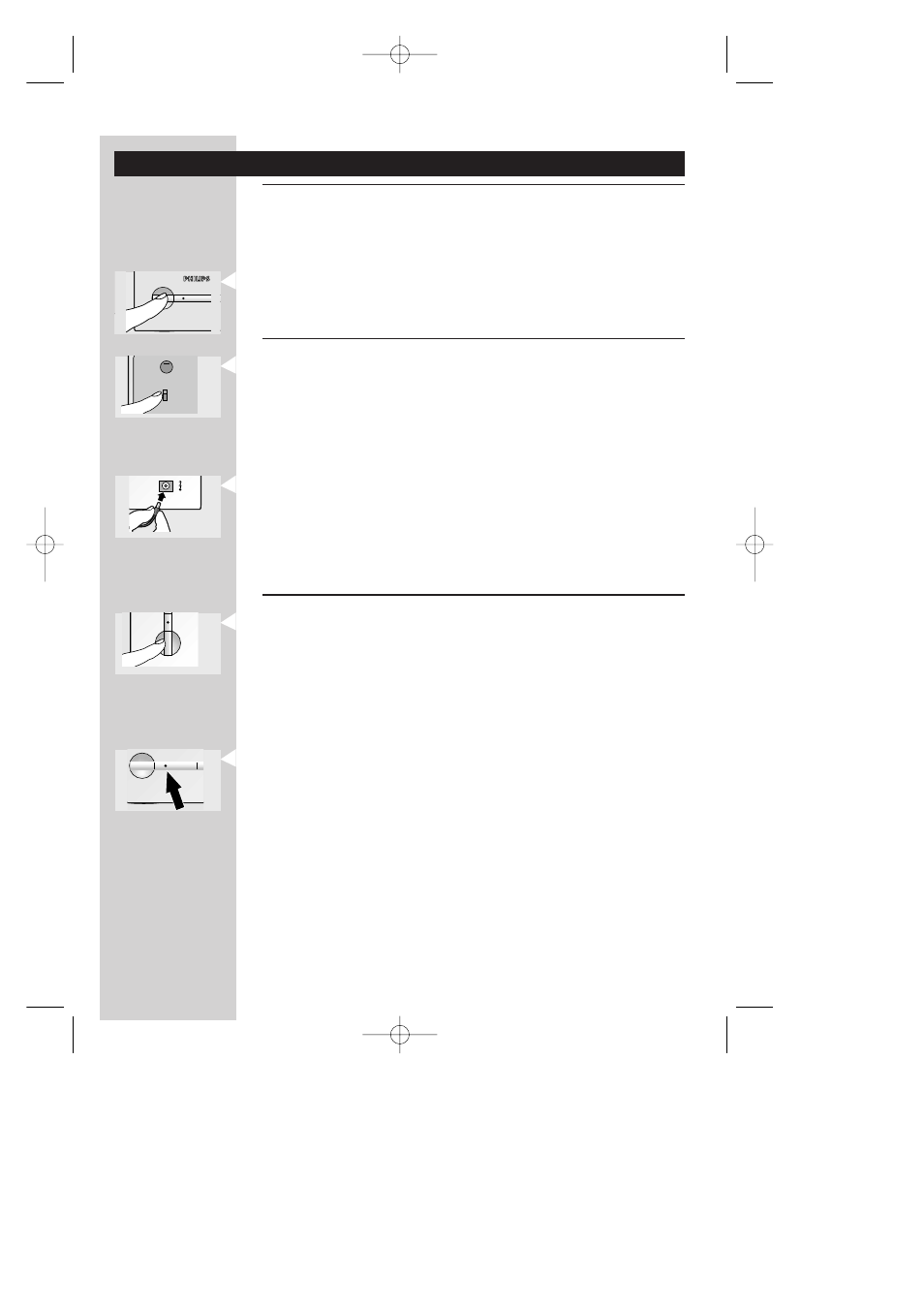

background image

Getting your Wireless TV Link ready

Setting up the Wireless TV Link SBC VL1400

1 Set up transmitter and receiver unit of the Wireless TV Link as described

in the instructions for use that came with the set.
Make sure both units are set to the same channel.

2 Switch on the transmitter unit.

You can now setup and test the additional receiver.

Setting up the receiver unit

1 Set the Transmission channel switch (B-23) to the same channel as the

transmitter.

2 Position the additional receiver unit close to TV3.

Ensure that the front of the receiver unit is positioned to receive remote
control commands.

3 Connect SCART cable from receiver unit to TV3.

4 Connect the power adapter to receiver unit.

5 Plug the power adapter of the additional receiver into mains socket.

Checking the remote control operation

1 Switch on TV3 and the receiver unit.

Make sure your transmitter is also switched on.

2 Point the video source’s remote control unit at the receiver unit and

switch between play and stop.
The power light (B-19) on the receiver unit flashes to show that it has
received the remote control command.

3 Have a second person check that the power light (A-1) on the

transmitter unit flashes.
This indicates that it is receiving the remote control signal from the receiver
unit.

ENGLISH

8

STANDBY

CO

STANDBY

LINK S

STANDBY

1 2 3 4

Channel

Antenna

DC 12V

XP SBC VL1405 04-08-2003 14:39 Pagina 8
