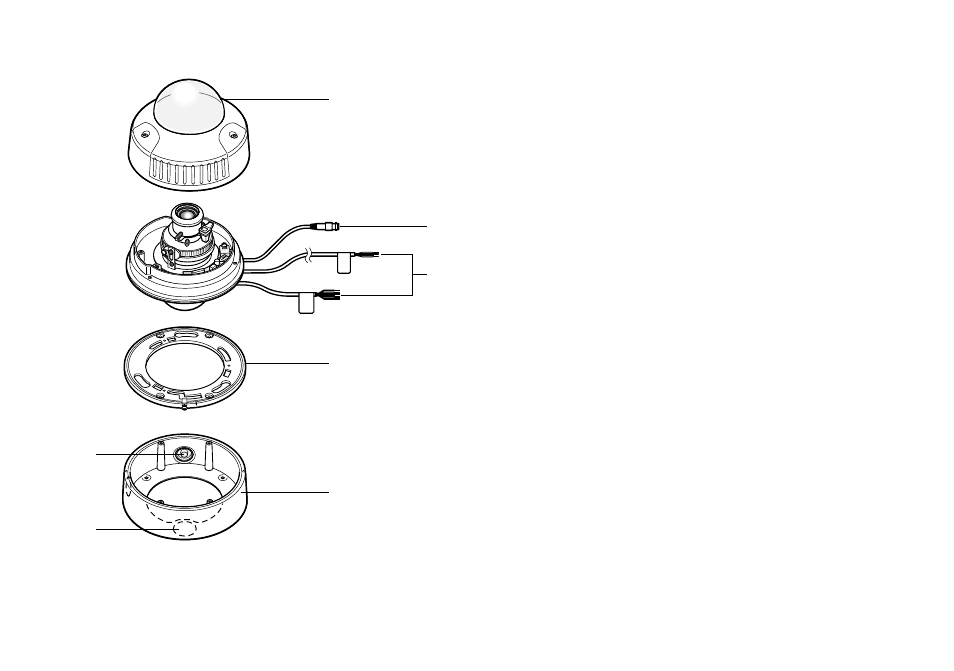

!2 Dome cover

!3 Video output cable with BNC connector

Connects with the video connector of the monitor.

!4 Camera power cable

For WV-CW240S: Supplies 220 V - 240 V AC 50 Hz

to the camera. The camera will supply the
optional heater unit with 24 V AC power that is
transformed from the supplied 220 V - 240 V
AC.

For WV-CW244FE: Supplies 24 V AC 50 Hz or 12

V DC to the camera. The black and grey cords
will supply 24 V AC to the optional heater unit
from an external power source.

!5 Camera attachment

!6 Camera mounting bracket

Only WV-CW240S (surface mount type) is supplied
with a mounting bracket for ceiling installation.

!7 Cable access hole

!8 Sideway cable exit
