-12-
1. Space
Prepare a space larger than ø160 mm.
2. Bracket Fixing Screws
To fix the bracket, procure four M4 screws suitable
for the surface and structure of the wall/ceiling.
3. Attachment Fixing Screws
Four screws are supplied as standard accessories.
4. Cable route
• When routing cables through the wall/ceiling, drill a
hole as shown in the figure.
• When routing cables sideway, open the sideway
cable exit unscrewing the lid by use of a hexagon
wrench. Screw the detached lid to the cable
access hole on the bottom of the bracket.
5. Waterproof Process
When necessary, apply waterproof process to the
camera and relevant portions.
■ Mounting the Camera

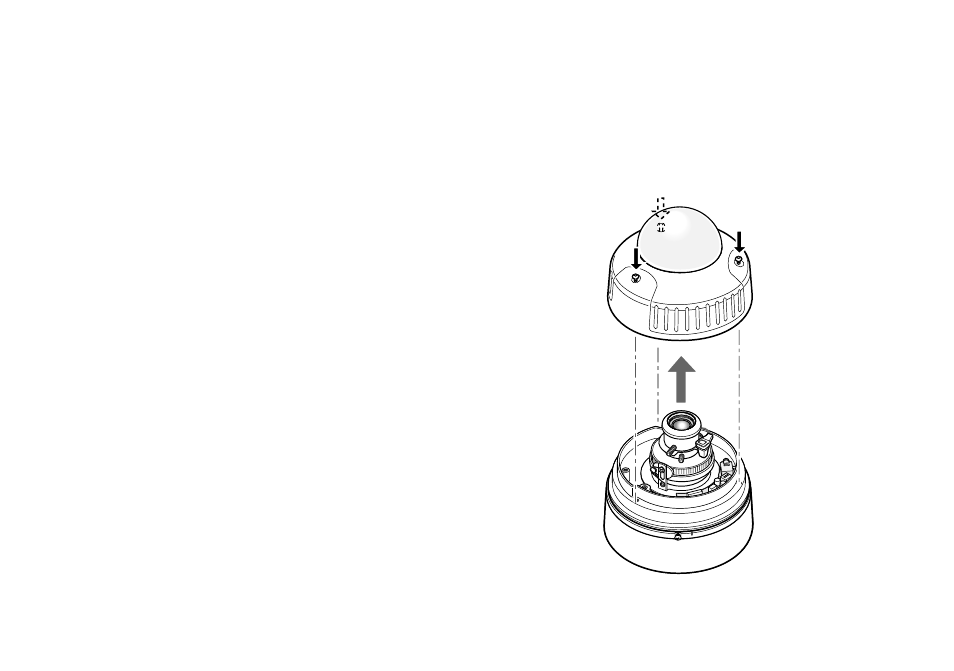

● Disassembling of the camera
1. Remove the dome cover by loosening three tamp-
er-proof screws using the supplied bit.
