KNOW YOUR TILLER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

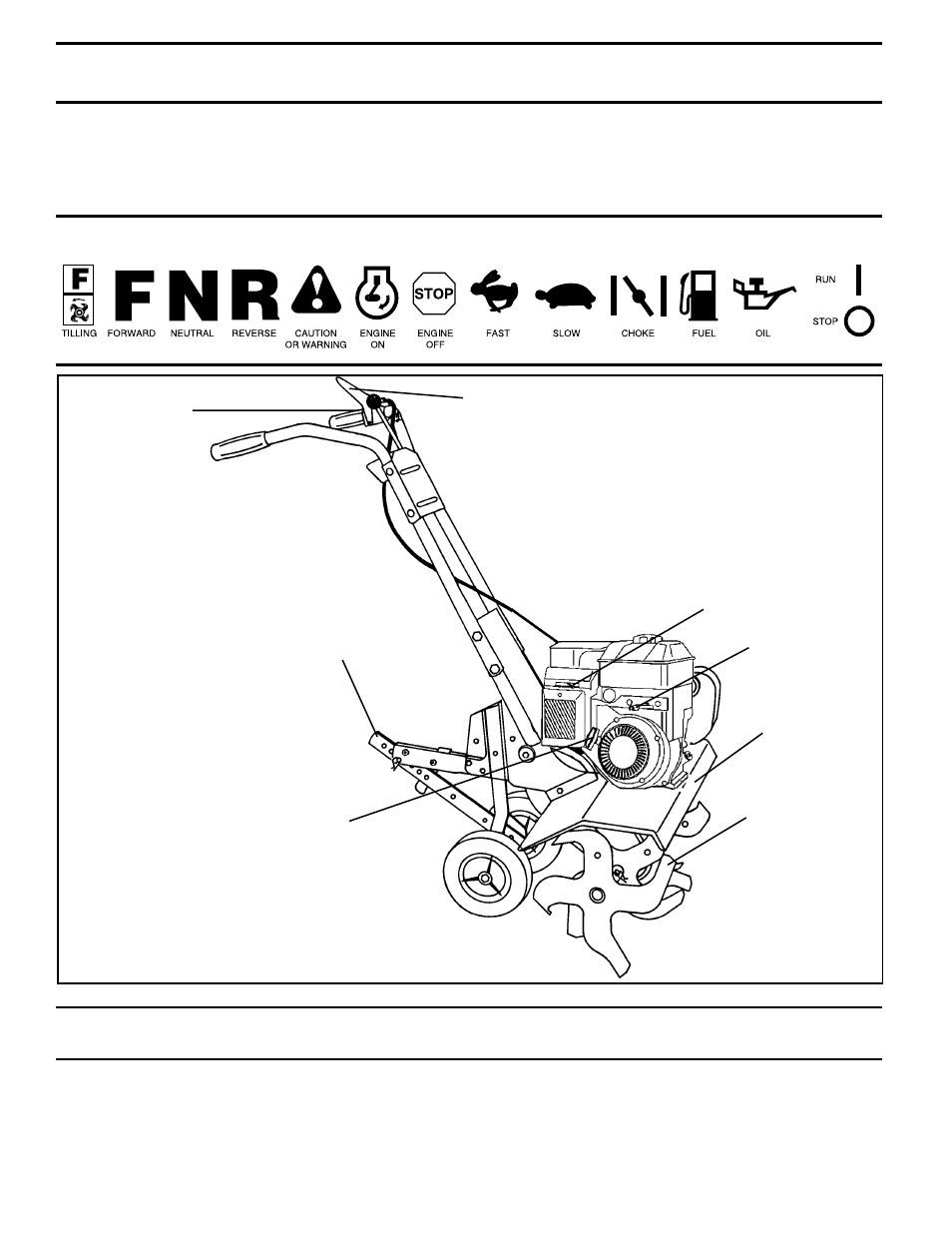

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this
manual for future reference.
REVERSE TINE
CONTROL
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.
RECOIL
STARTER
HANDLE
DEPTH STAKE
TINE
SHIELD
CHOKE CONTROL
FORWARD TINE
CONTROL
TINES
THROTTLE
CONTROL
FIG. 4
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
FORWARD TINE CONTROL - Engages tines in forward
direction.
REVERSE TINE CONTROL - Engages tines in reverse
direction.
THROTTLE CONTROL - Controls engine speed.
OPERATION
CHOKE CONTROL - Used when starting a cold engine.
DEPTH STAKE - Controls forward speed and the depth at
which the tiller will dig.
RECOIL STARTER HANDLE - Used to start the engine.
