Poulan 176843 - Manual (Page 17)

17
1 131268X428 Panel Pnt Control
2 72140512 Bolt, Carriage 5/16-18 UNC x 1-1¦2
3 9266R Grip, Handle
4 166376 Handle, L.H.
5 73680500 Locknut, Crown 5/16-18
6 19111116 Washer 11/32 x 11/16 x 16 Ga.
7 19121414 Washer 3/8 x 7/8 x 14 Ga.
8 74760516 Bolt, Hex Hd. 5/16-18 x 1
9 74760512 Bolt, Hex Hd 5/16-18 x 3/4
10 10040500 Washer, Lock 5/16
11 73220500 Nut, Hex 5/16-18
12 98000129 Nut, Flanged 5/16-18
13 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5
14 674A150428 Panel, Handle
16 166377 Handle, R.H.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
17 106932X Knob, Control, Reverse
18 166868 Cable, Control, Tine
19 151229 Lever, Control, Tine
20 154805 Pin, Pivot
21 12000027 Ring, Klip
22 167692 Rod, Reverse, Upper
23 1778E Pin, Retaining
24 2613J Rod, Reverse, Lower
25 19131316 Washer 13/32 x 13/16 x 16 Ga.
26 76020412 Pin, Cotter 1/8 x 3/4
27 76020308 Pin, Cotter 3/32 x 1/2
28 19131312 Washer 13/32 x 13/16 x 12 Ga.
29 12000059 Retaining, Ring
NOTE: All component dimensions are given in U.S.
inches. 1 inch = 25.4 mm
REPAIR PARTS
TILLER - - MODEL NUMBER HDF550K

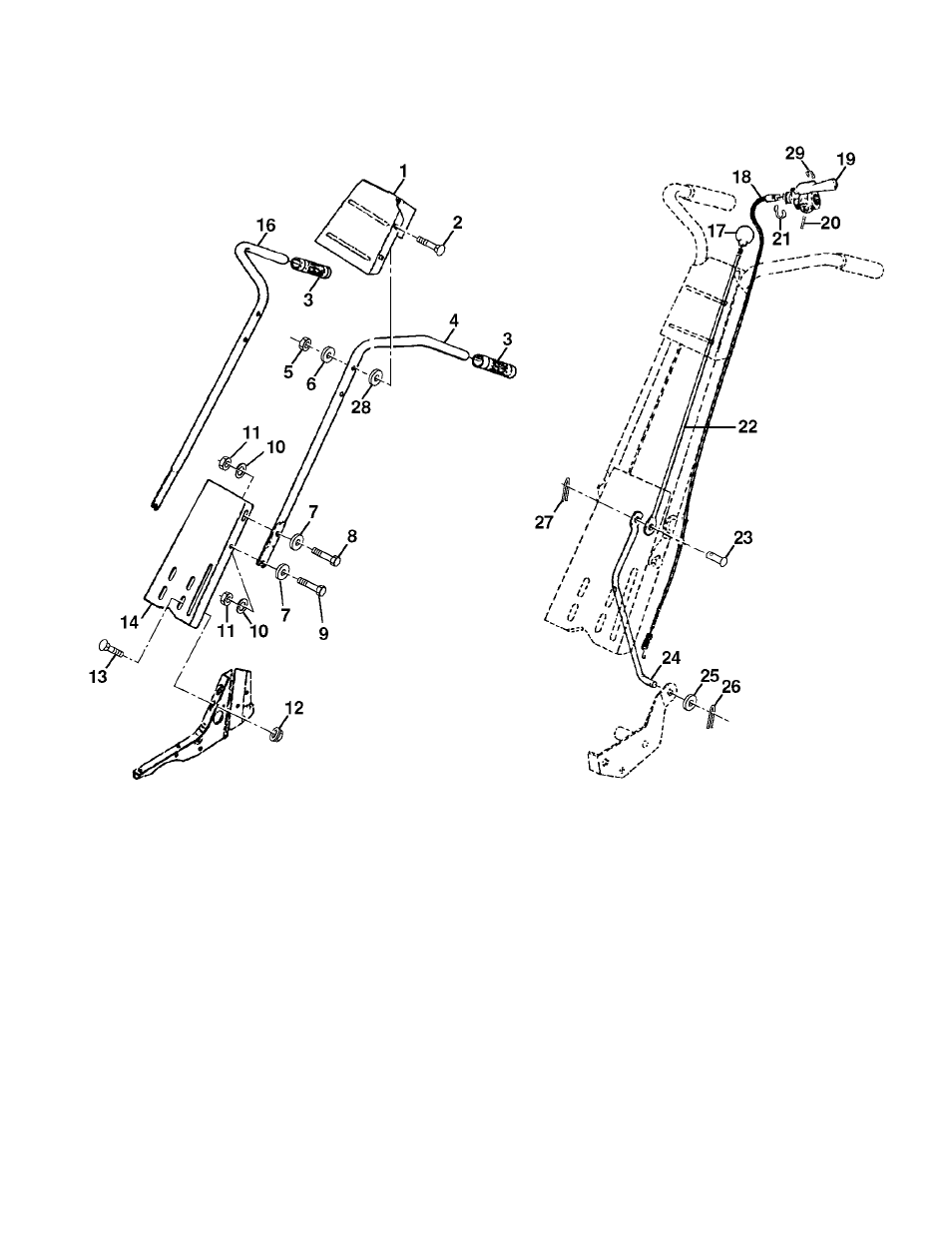

HANDLE ASSEMBLY
