19
1 9194R Pin, Clevis
2 74760520 Bolt, Hex 5/16-18 x 1-1/4
3 74760512 Bolt, Hex 5/16-18 x 3/4
4 73220500 Nut, Hex 5/16-18
5 10040500 Washer, Lock 5/16
6 73800600 Locknut, w/washer 3/8-16
7 4921H Clip, Hairpin
8 1952J Support, Depth Stake, R.H.
9 122233X Stake, Depth
10 326J Pin, Clevis
11 74780628 Bolt, Hex, Fin 3/8-16 x 1-3/4
13 1951J Support, Depth Stake, L.H.
KEY PART
NO. NO. DESCRIPTION
15 5388J Spring, Stake
16 121117X Bolt, Shoulder
17 9188R Wheel
18 19131311 Washer 13/32 x 13/16 x 11 Ga.
19 9190R Bracket, Wheel
20 73680600 Locknut, Crown 3/8-16
21 74760516 Bolt, Hex 5/16-18 x 1
22 73800500 Locknut, w/insert 5/16-18
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

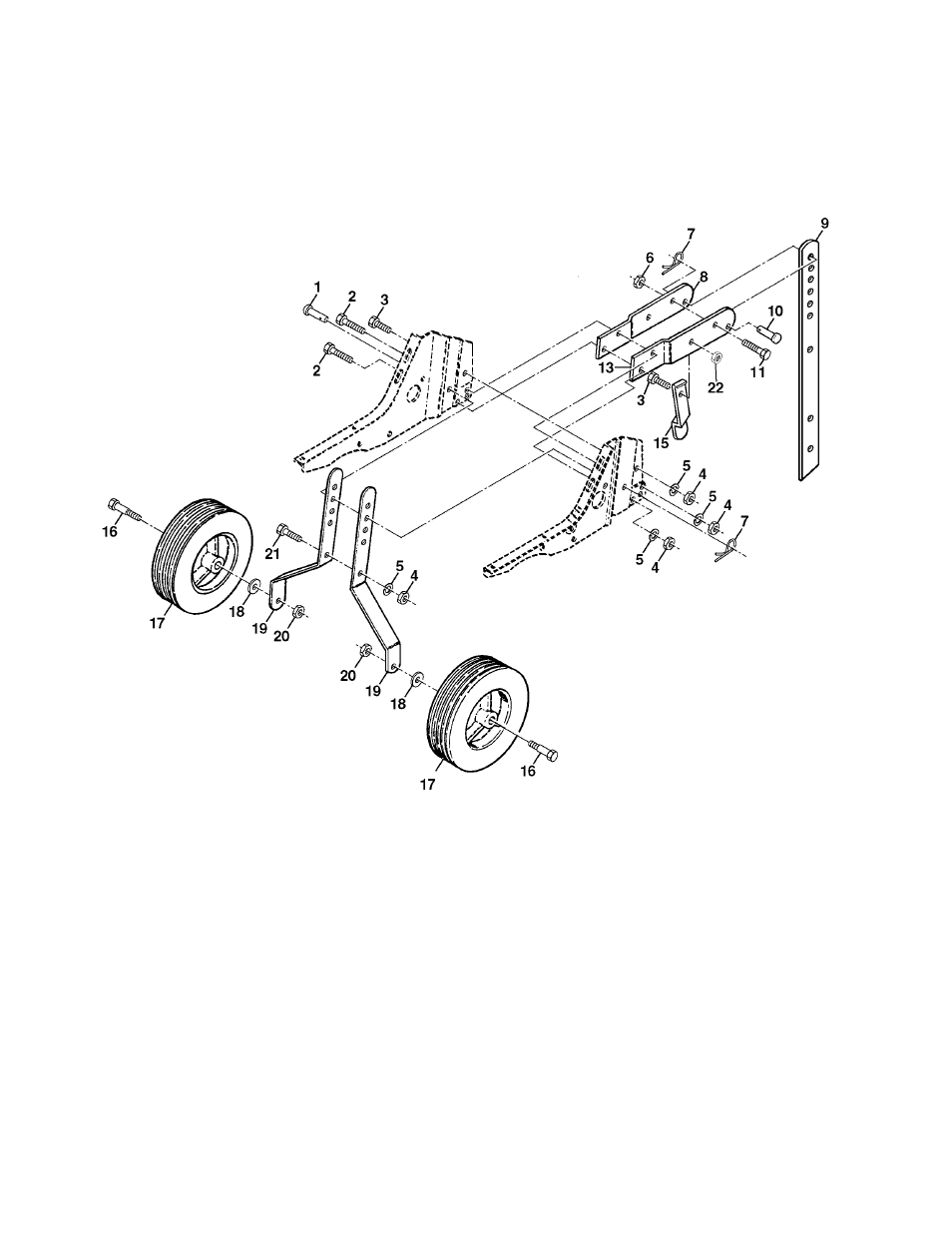

REPAIR PARTS
TILLER - - MODEL NUMBER HDF550K
WHEEL AND DEPTH STAKE ASSEMBLY
