Other connections
12
71
En
English
Italiano
Français
Nederlands
Español
Deutsch
•

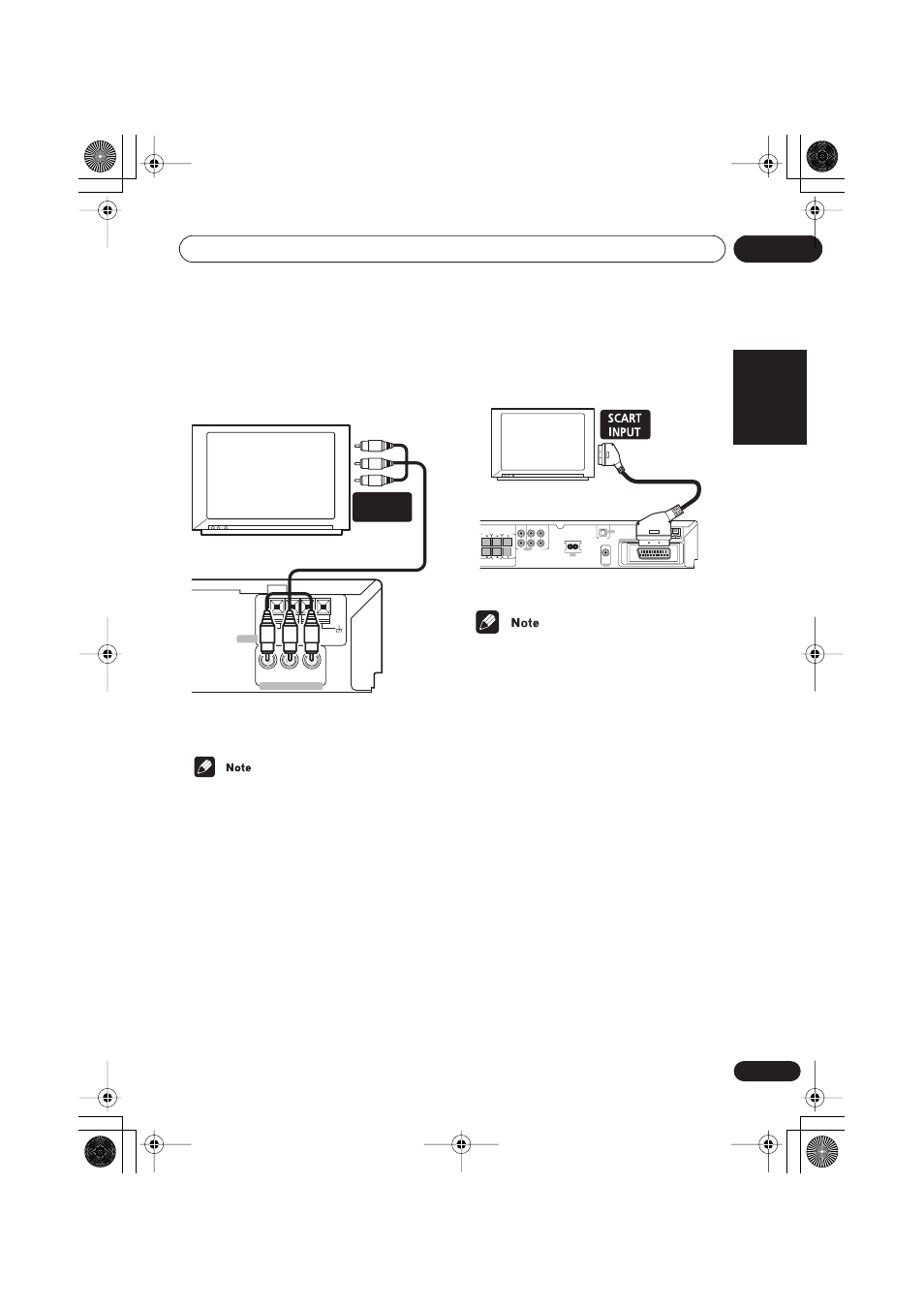

Use a component video cable (not
supplied) to connect the COMPONENT
VIDEO OUT to a set of component inputs
on your TV.
• The component video ouptut is
switchable between interlaced and
progressive formats. See
Component Out
on page 61 for more on this.
Using the SCART AV output
European model only
There are two different kinds of video outputs
you can use to connect this system to your TV.
The SCART output should give you better
picture quality than the standard composite
video output. The SCART AV connector
functions as both a video and audio output.
•
Use a commercially available SCART
cable to connect the AV CONNECTOR to
your TV.
• SCART cables are available in several
configurations. Make sure that the one
you get will work with this system and
your TV/monitor. You can find the pin
assignments below.
Switching the TV audio input from
SCART to RCA
You can set the TV audio input to RCA or
SCART.
1
Press TV.
2
Press SYSTEM SETUP.
3
Use the
/
(cursor left/right)
buttons to select ‘TV Audio?’.
4
Press ENTER.
5
Use the
/
(cursor up/down)
buttons to select SCART or RCA.
6
Press ENTER
COMPONENT VIDEO OUT
ANTENNA
FM
UNBAL 75
Ω
AM
LOOP ANTENNA
P
R
P
B
Y
TV
XV–DV313
COMPONENT
INPUT
6
6
6
6
6
6
FM
UNBAL 75Ω
AM
LOOP ANTENNA
OPTICAL IN
OUT
VIDEO
OUT
IN
IN
FRONT
CENTER
SUB
WOOFER
SURROUND
R
L
R
L
TV
LINE 1
LINE 2
AUDIO
AC IN
AUDIO
ANTENNA
AV CONNECTOR
VIDEO
TV
XV-DV313
