Other connections 12
68
En
Chapter 12
Other connections

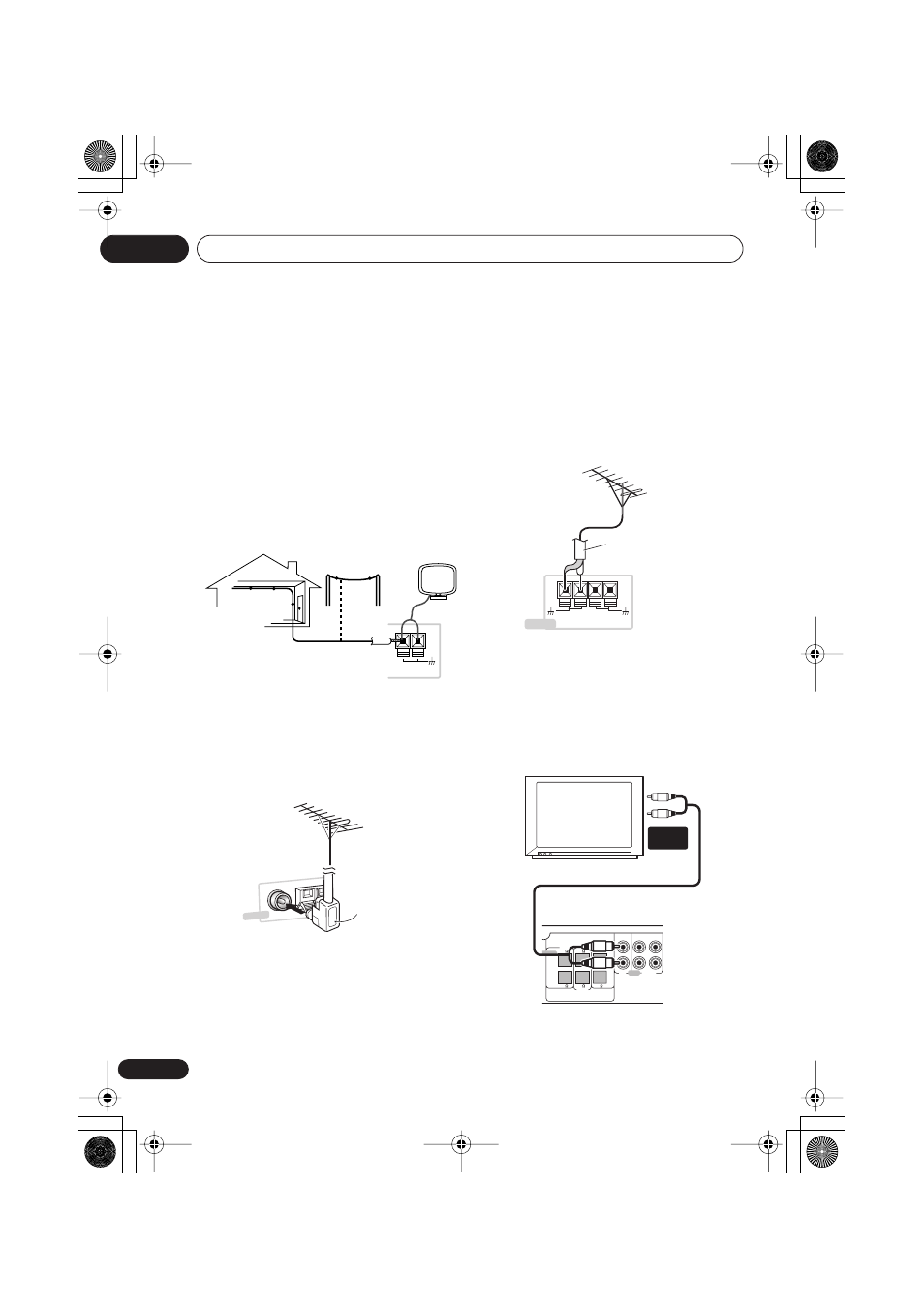

Connecting external antennas
External AM antenna
Use 5–6 meters of vinyl-insulated wire and set
up either indoors or outdoors. Leave the AM
loop antenna connected.
External FM antenna
Use a PAL connector (European model) or a
75
Ω coaxial cable (all other models) to hook
up an external FM antenna.
European model
All other models
Connecting auxiliary
components
This system has both stereo analog inputs
and outputs, as well as a optical digital input.
Use these to connect external components,
such as your VCR, MD or CD-R recorder.
Outdoor antenna
5–6m
Indoor
antenna
(vinyl-coated
wire)
AM
LOOP ANTENNA
ANTENNA
PAL connector
FM
UNBAL 75Ω
AM
LOOP ANTENNA ANTENNA
75Ω coaxial cable
6 6 6
6 6 6
OUT IN IN
FRONT CENTER
SUB WOOFER
SURROUND
R
L
R
L
TV LINE 1 AUDIO
PEAKERS
AUDIO
OUTPUT
TV
XV–DV313
