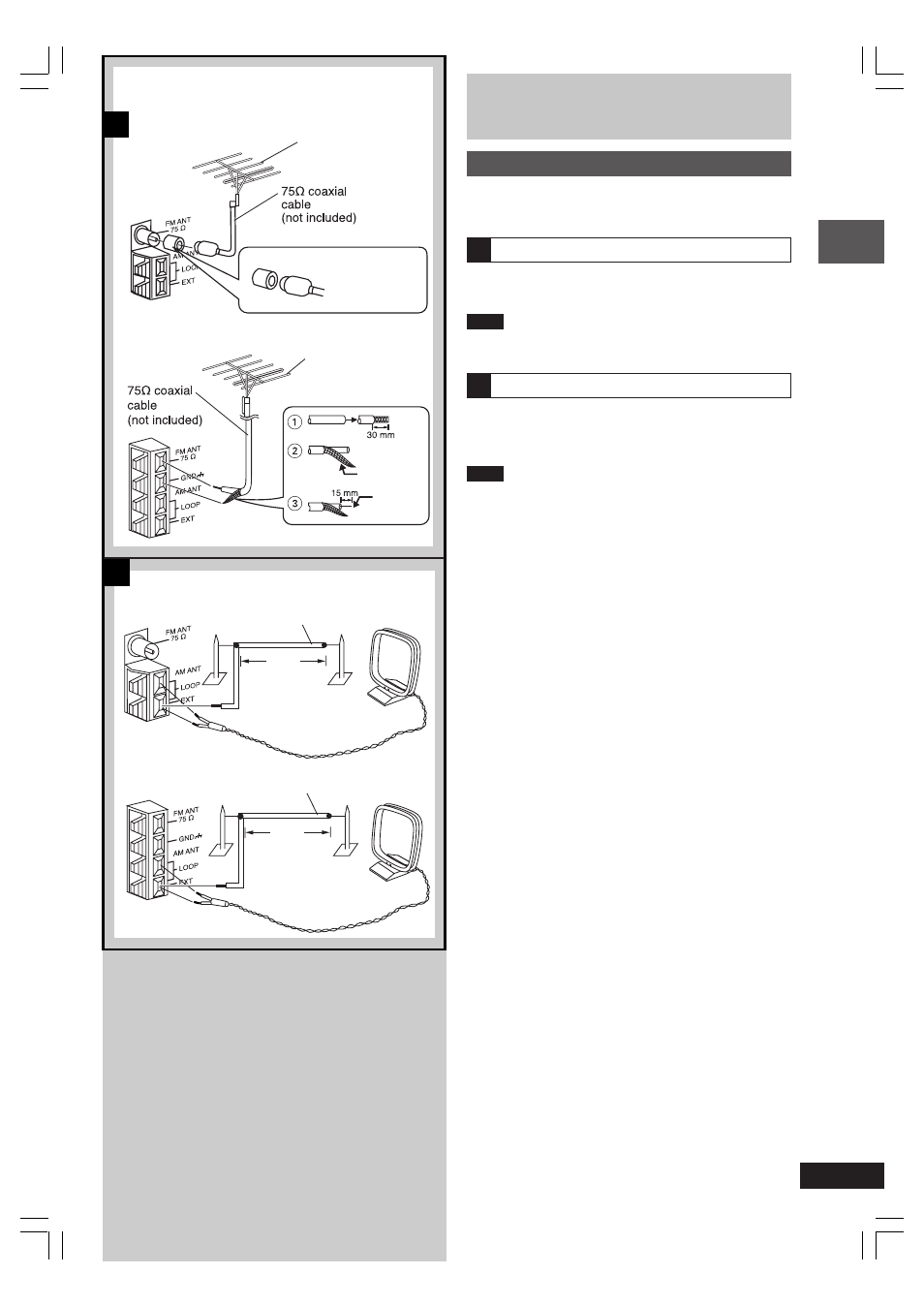

Optional antenna connections

You may need an outdoor antenna if you use this system in
a mountainous region or inside a reinforced-concrete
building, etc.

FM outdoor antenna

Disconnect the FM indoor antenna if an FM outdoor
antenna is installed.

Note

An outdoor antenna should be installed by a qualified
technician only.

AM outdoor antenna

Connect the outdoor antenna without removing the AM loop
antenna. Run 5 to 12 m of vinyl-covered wire horizontally
along a window or other convenient location.

Note

When the unit is not in use, disconnect the outdoor antenna
to prevent possible damage that may be caused by lighting.
Never use an outdoor antenna during a lightning storm.

FM outdoor antenna
(not included)

For Others

For Europe

AM outdoor antenna
(not included)

Shield braid

Core wire

5-12m

For Europe

For Others

(Only for the U.K.)

Use the antenna
plug adaptor
(included).

FM outdoor antenna
(not included)

5-12m
