498 (19-19/32˝)
416 (16-3/8˝)
423 (16-21/32˝)
440 (17-5/16˝)
17 (21/32˝)
9 (11/32˝)
77.5
(3-1/16˝)
20 (25/32˝)
155 (6-3/32˝)
175 (6-7/8˝)
21 (13/16˝)

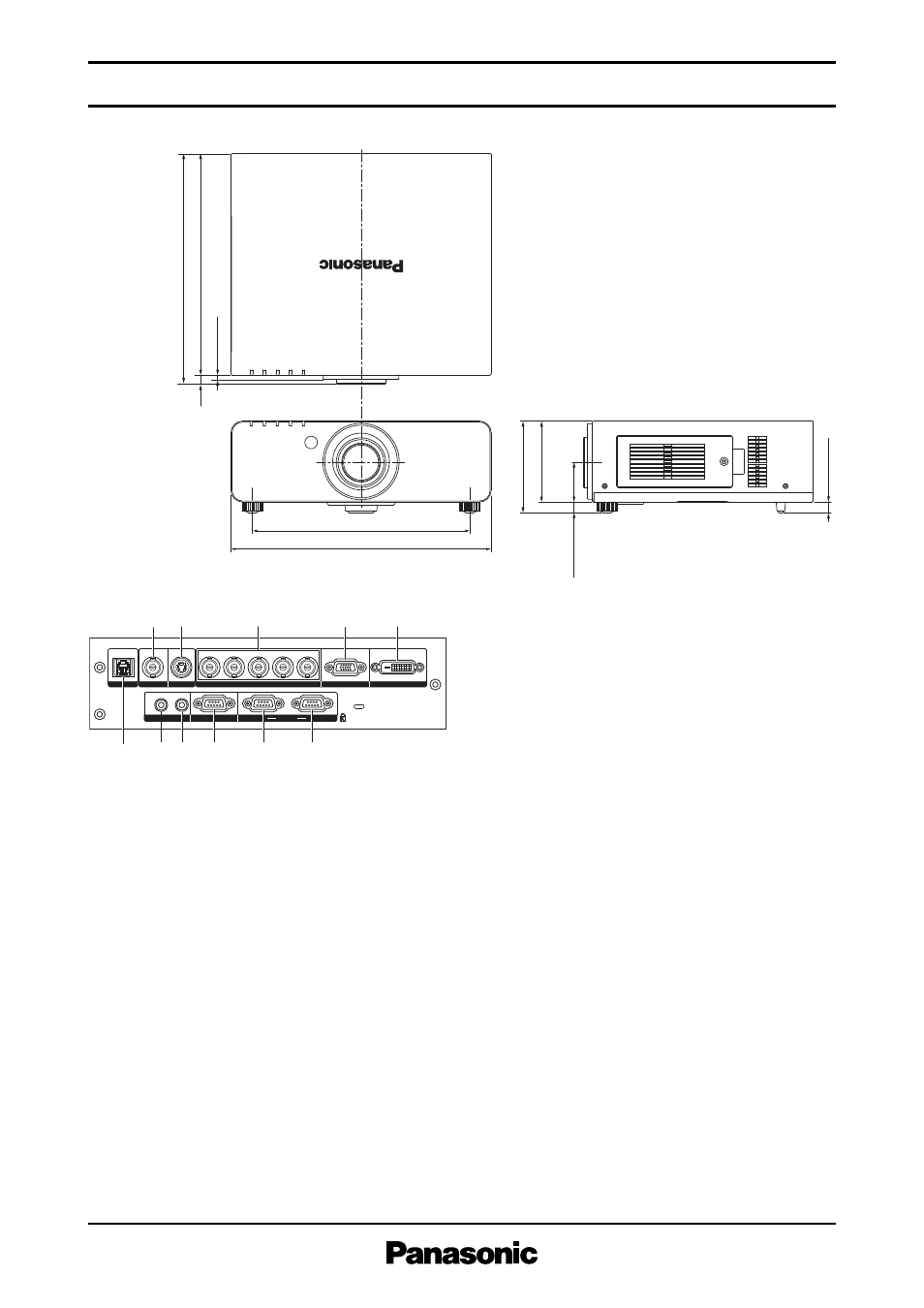

Dimensions
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
The illustration shows the PT-D6000S/D6000K.
S
P
E
C
F
I
L
E
PT-D6000S/D6000K/D6000LS/D6000LK
DLP
™
Projectors
As of February 2009
< 4 >
Terminals
VD
SYNC/HD
B/P
B
G/Y
R
R/P
IN
OUT
LAN
VIDEO IN
RGB1 IN
RGB2 IN
DVI-D I N
S-VIDEO IN
REMOTE 1
REMOTE 2
IN
OUT
SERIAL
1
6
7
8
9
10
11
2
3
4
5
1
Video input
2
S-Video input
3
RGB 1 input
4
RGB 2 Input
5
DVI-D input
6
LAN connector
7
Remote 1 input
8
Remote 1 output
9
Remote 2 input
10 Serial input
11 Serial output
