13
English
Connections

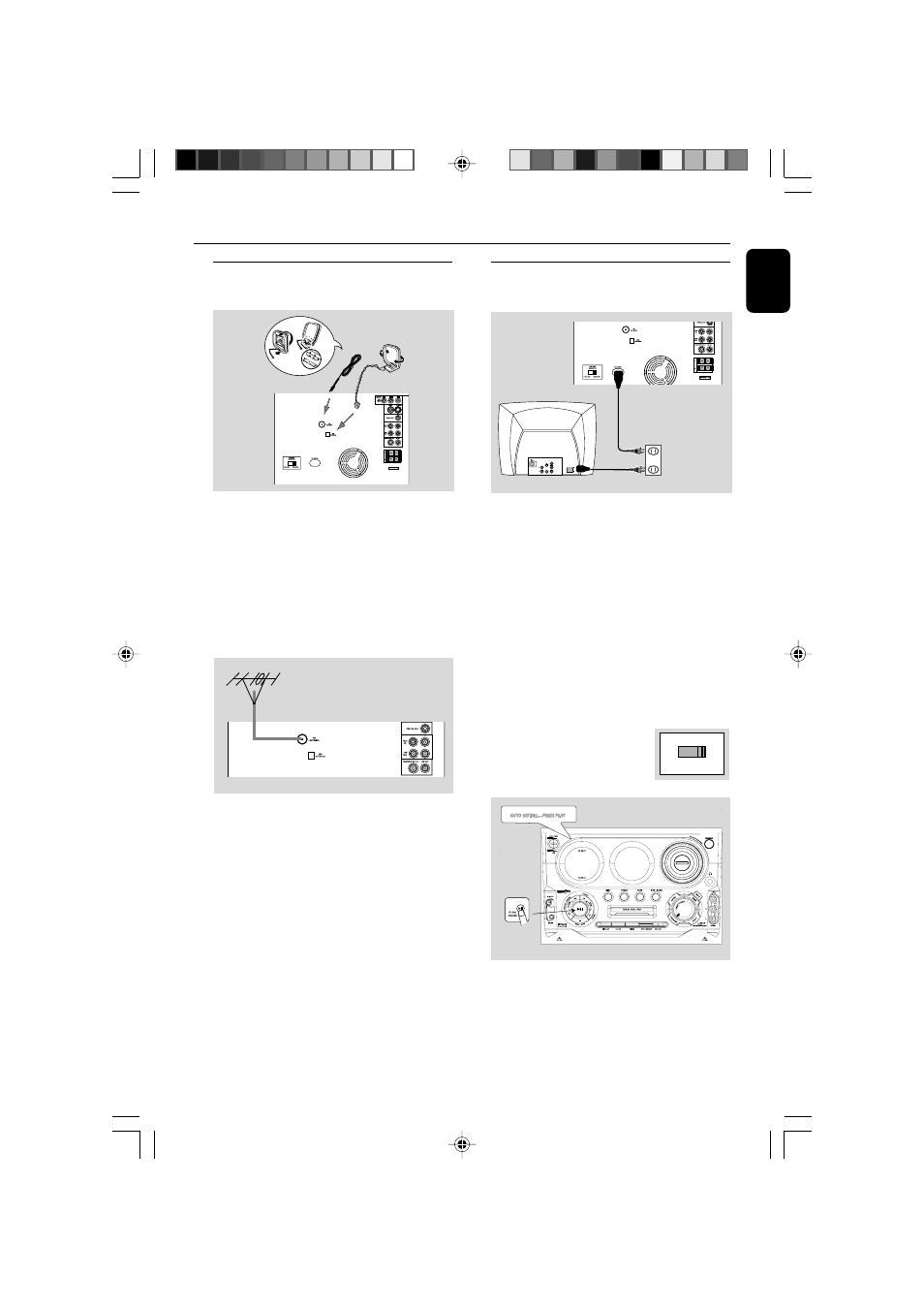

Step 4: Connecting FM/MW
antennas
● Connect the supplied MW loop antenna to the
MW jack. Place the MW loop antenna on a
shelf or attach it to a stand or wall.
● Connect the supplied FM antenna to the FM
jack. Extend the FM antenna and fix its end to
the wall.
For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.
Notes:
– Adjust the position of the antennas for optimal
reception.
– Position the antennas as far as possible from
your TV set, VCR or other radiation sources to
prevent unwanted interference.
Step 5: Connecting the power
cord
After everything is connected properly,
plug in the AC power cord to the power
outlet.
Never make or change any connection with the
power switched on.
On the DVD Mini Hi-Fi System
“
AUTO INSTALL-PRESS PLAY” may appear
on the display panel. Press 2; on the front panel
to search and store all available radio stations or
press
9 to exit (See page 37, Tuner Operations-
Presetting radio stations).
If your system is equipped with a
Voltage Selector, set the
VOLTAGE SELECTOR to the
local power line voltage.
FM
antenna
MW
antenna
fix the claw
into the slot
~ AC MAINS AUDIO OUT Pr/Cr
Pb/Cb
Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
VOLTAGE
SELECTOR
110V~127V 220V~240V
