English

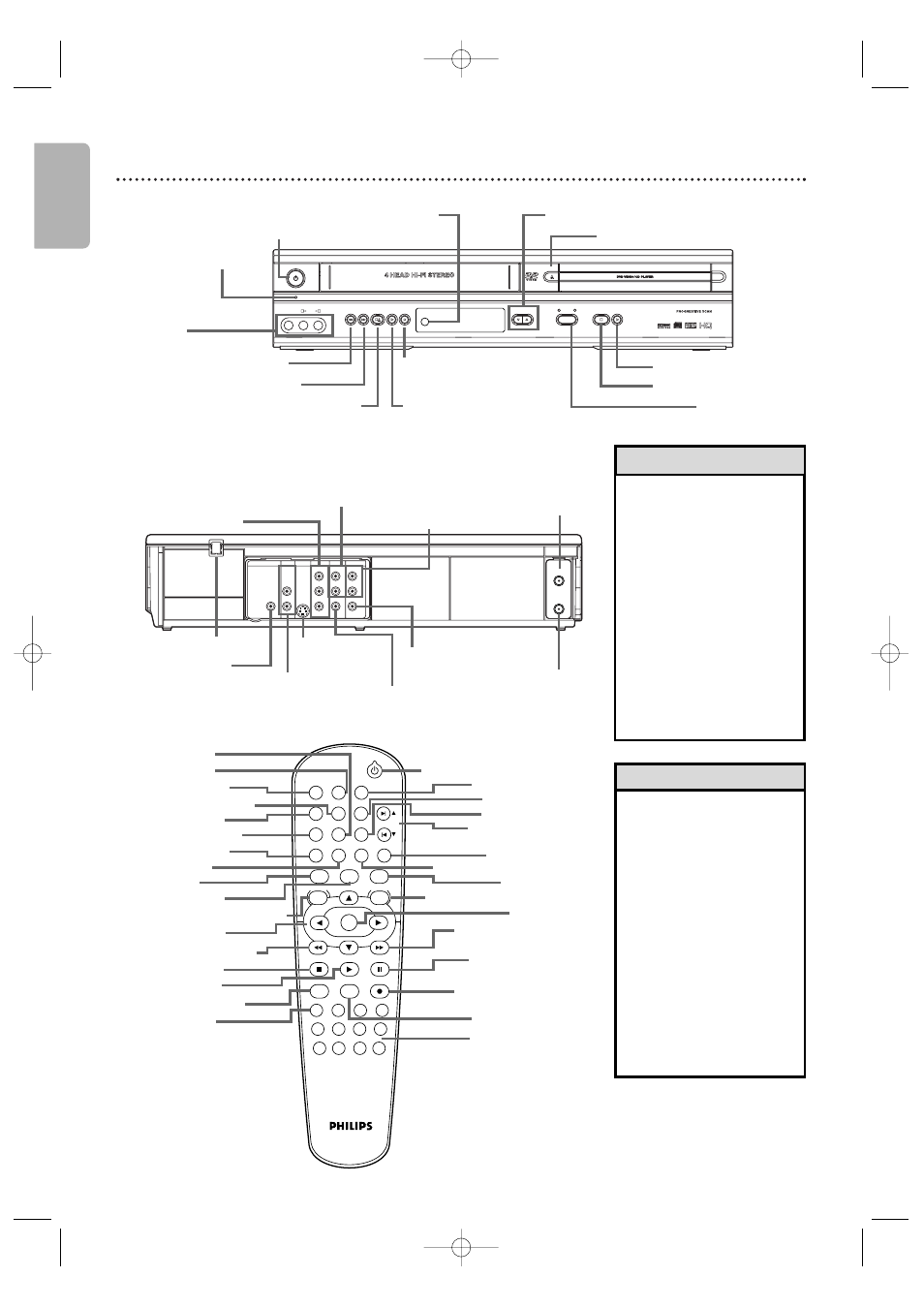

20 Front Panel, Rear Panel, and Remote Control
• The DVD S-VIDEO OUT,
DVD COMPONENT
VIDEO OUT, DVD
AUDIO OUT and DVD
COAXIAL DIGITAL
AUDIO OUT jacks are
only useful in DVD mode.
To have sound and picture
in VCR mode, you must
connect either the RF
coaxial cable or the
audio/video cables
supplied. Details are on
pages 9 and 12.
Helpful Hint
• For DVD Player features,
press DVD before
pressing other buttons.
To put the DVD/VCR in
DVD mode, press DVD
or SOURCE so DVD
light appears on the front
of the DVD/VCR.
• For VCR features, press
VCR before pressing any
other buttons.To put the
DVD/VCR in VCR mode,
press VCR or SOURCE
so VCR light appears on
the front of the
DVD/VCR.
Helpful Hints
STANDBY-ON
SOURCE
POWER ON
VIDEO AUDIO REW F.FWD PLAY RECORD CHANNEL VCR
OPEN/CLOSE
DVD STOP PLAY
ONE TOUCH RECORDING ¥ LONG PLAY
STOP/EJECT L R AUDIO and VIDEO
In jacks
STANDBY-ON y Button
POWER ON Light
REW h Button (VCR)
F.FWD g Button (VCR)
STOP/EJECT C A Button (VCR) PLAY B Button (VCR)
RECORD I
Button (VCR)
SOURCE Button
STOP C Button (DVD)
PLAY B Button (DVD)
OPEN/CLOSE A Button (DVD)
CHANNEL KL Buttons Remote Sensor
DIGITAL
AUDIO OUT
COAXIAL
AUDIO OUT
DVD
L
R
L
R
L
R
S-VIDEO OUT
COMPONENT VIDEO OUT
Y
C B /
P B
AUDIO OUT
DVD/VCR VCR
ANT - IN
ANT-OUT VIDEO OUT
AUDIO IN
VIDEO IN
C R / P R
DVD/VCR AUDIO
OUT jacks Left (white)
and Right (red)
DVD COMPONENT
VIDEO OUT
(Y C
B /P B C R /P R ) jacks
(green, blue, red)
DVD AUDIO OUT
jacks Left (white)
and Right (red)
AC Power Cord
DVD COAXIAL
DIGITAL AUDIO
OUT jack (black)
DVD S-VIDEO
OUT jack
DVD/VCR VIDEO
OUT jack (yellow)
ANT-OUT
(Antenna Out)
jack
VCR VIDEO IN
jack (yellow)
ANT-IN
(Antenna In)
jack
VCR AUDIO IN
jacks Left (white)
and Right (red)
STANDBY-ON
PLAY
DVD VCR VCR/TV
OK
MENU MENU
DISC/VCR
RETURN TITLE
A-B
CLEAR/RESET SLOW
SUBTITLE ZOOM ANGLE
REPEAT REPEAT AUDIO
SEARCH MODE DISPLAY
SKIP / CH
SYSTEM
PAUSE STOP
MARKER RECORD TIMER SET
SPEED
1 2 3
7 6 5 4
8 9 0 +10
SEARCH Button
MODE Button
ZOOM Button
REPEAT Button
SUBTITLE Button
A-B REPEAT Button
RETURN Button
TITLE Button
VCR Button
VCR/TV Button
DISC/VCR/MENU Button
s B KL
Buttons
h (Rewind) Button
STOP C Button
PLAY B Button
STANDBY-ON y Button
DISPLAY Button
AUDIO Button
ANGLE Button
SLOW Button
CLEAR/RESET Button
DVD Button
SYSTEM/MENU Button
OK Button
PAUSE k Button
g (Fast Forward)
Button
RECORD I Button
MARKER Button
SKIP
∑/CH K or
SKIP
w/ CH L
TIMER SET Button
SPEED Button
Number Buttons
Front Panel
Rear Panel
Remote Control
